Description

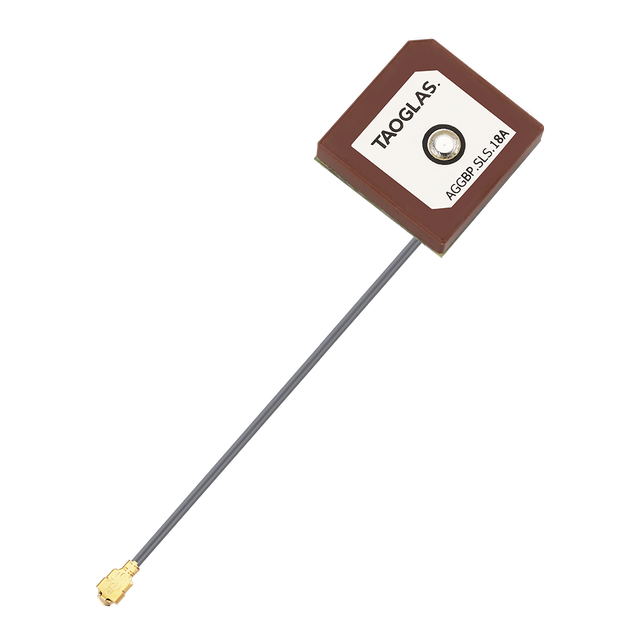

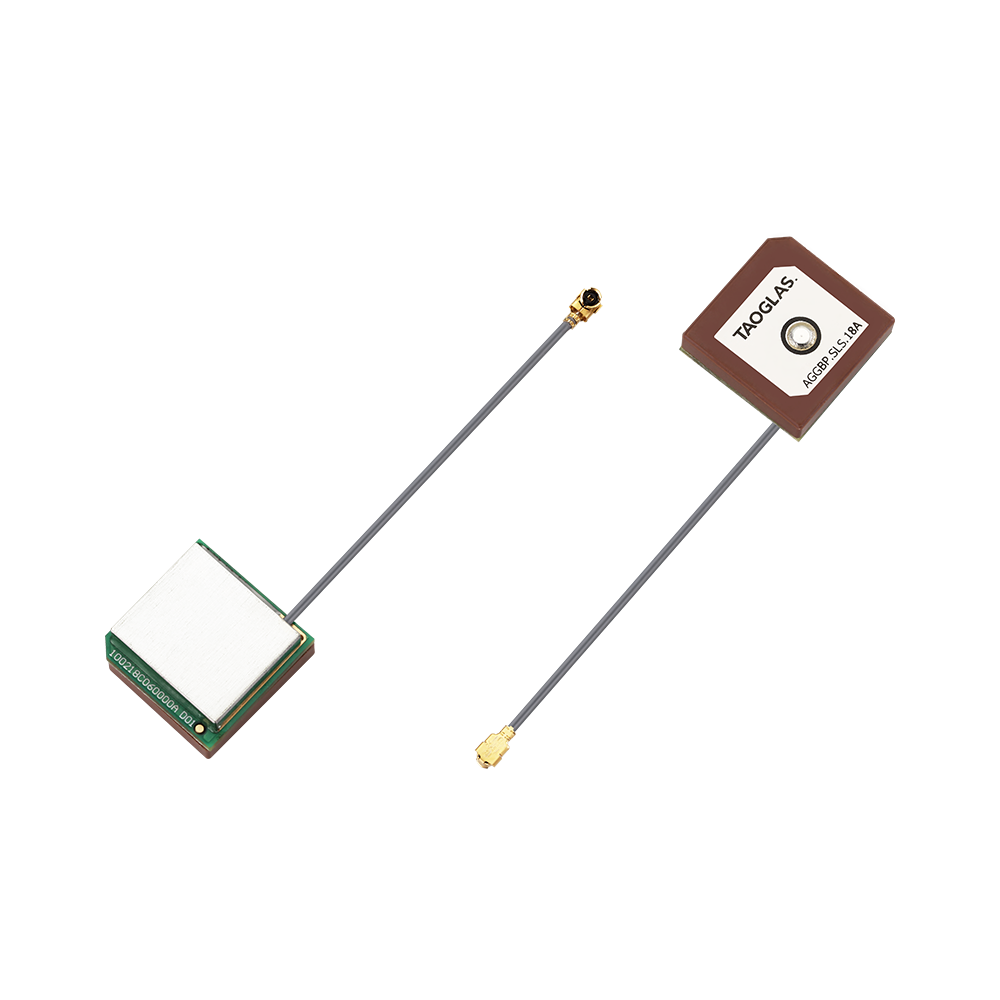

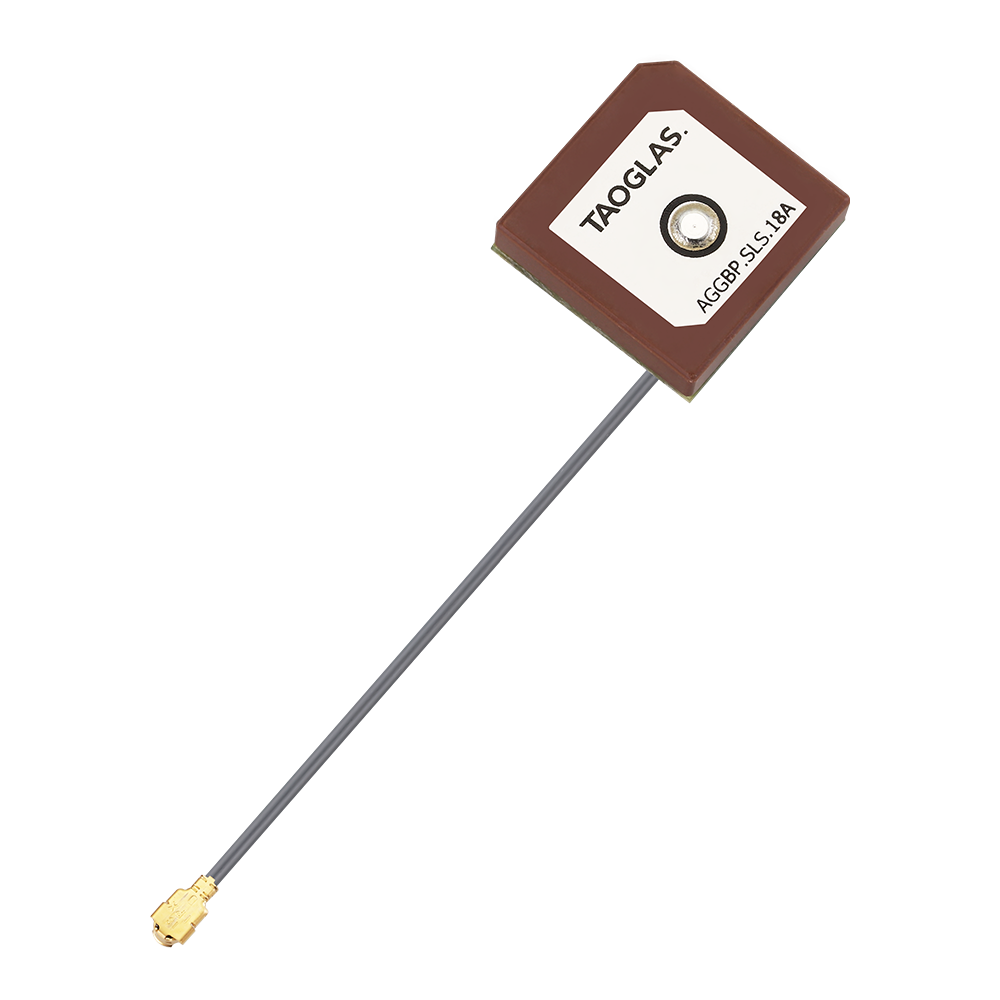

AGGBP.SLS.18A is an internal active GNSS patch antenna module designed for GPS/GLONASS/Galileo/BeiDou reception inside compact devices. It integrates a one-stage LNA and front-end/back-end SAW filtering to help reduce out-of-band interference, making it well-suited for enclosures that also contain radios such as cellular and short-range transmitters.
- Active GNSS patch for multi-constellation positioning
- Integrated one-stage LNA for boosted receive performance
- Front-end and back-end SAW filters to improve interference rejection
- Wide input voltage support for flexible system integration
Typical applications include: Wearables, Connected Health, Transportation.
Connector & Cable
- Connector Type: I-PEX MHF I (U.FL)
- Cable Length: 6cm
- Cable Type: 1.13 Coax
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Patch
Location: Internal
Mounting: Pin/Adhesive Mount
Satellite Navigation: GNSS
Type: Single
Dimensions: Ø18 x 8.57 mm
Weight: 9g
GNSS (Active)
Frequency: 1559MHz - 1610MHz
GNSS Bands: L1
Impedance: 50Ω
Polarization: RHCP
VSWR: 2:1
Gain (Max): 13.8
Connector Type: I-PEX MHF I
Cable Length: 6cm
Cable Type: 1.13 Coax
