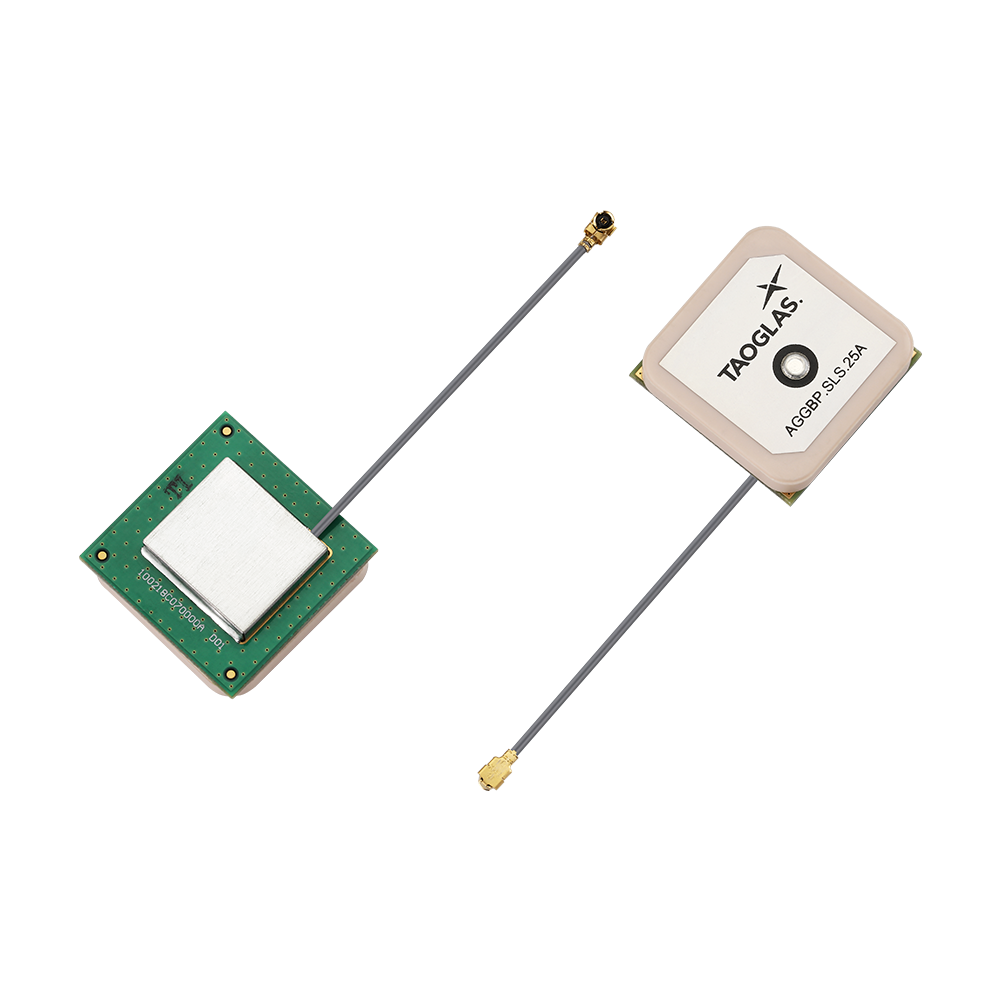

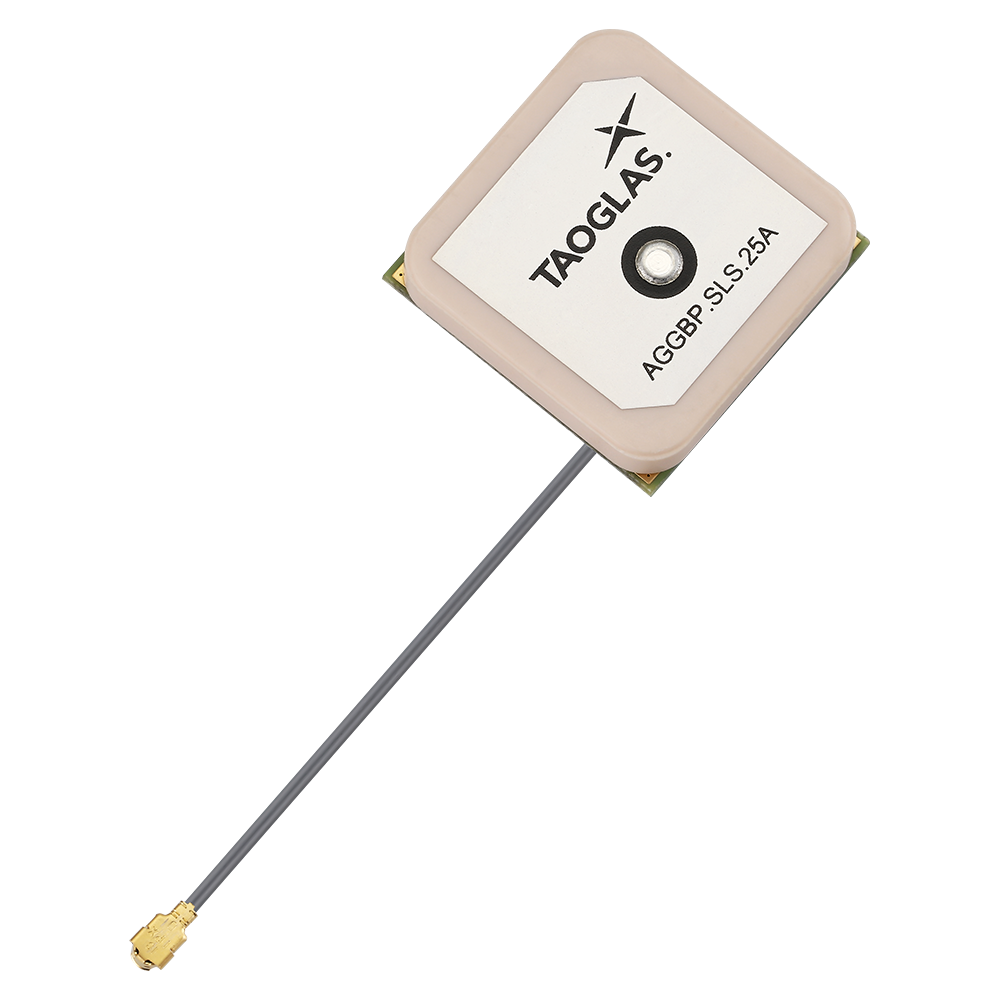

AGGBP.SLS.25A.07.0060A Antenna GNSS 25mm active patch U.FL 6cm for Navigation, Wearables, Transportation

This compact active GNSS patch antenna module provides multi-constellation coverage for reliable positioning in space-constrained, embedded designs. Integrated SAW filtering and a low-noise amplifier help protect receiver performance when installed close to in-device radios and other potential interferers.

• Multi-constellation support: GPS/GLONASS/Galileo/BeiDou coverage for robust positioning
• Integrated filtering: Front-end and back-end SAW filters to reduce out-of-band interference
• Active design: Built-in LNA to help maintain signal quality in embedded installations
• Designed for integration: Patch form factor suited to internal device enclosures

Typical use cases include navigation devices, wearables, and transportation systems.

Connector & Cable

• Connector Type: I-PEX MHF I (U.FL)
• Cable Length: 6cm
• Cable Type: 1.13 Coax

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: Patch
Location: Internal
Mounting: Pin/Adhesive
Satellite Navigation: GNSS
Type: Single
Frequency: 1559MHz - 1610MHz
GNSS Bands: L1
Impedance: 50Ω
VSWR: 2:1
Polarisation: RHCP
Gain (Max): 13.8
Dimensions: Ø25.1 x 8.6 mm
Weight: 13g

Download Datasheet PDF
