Description

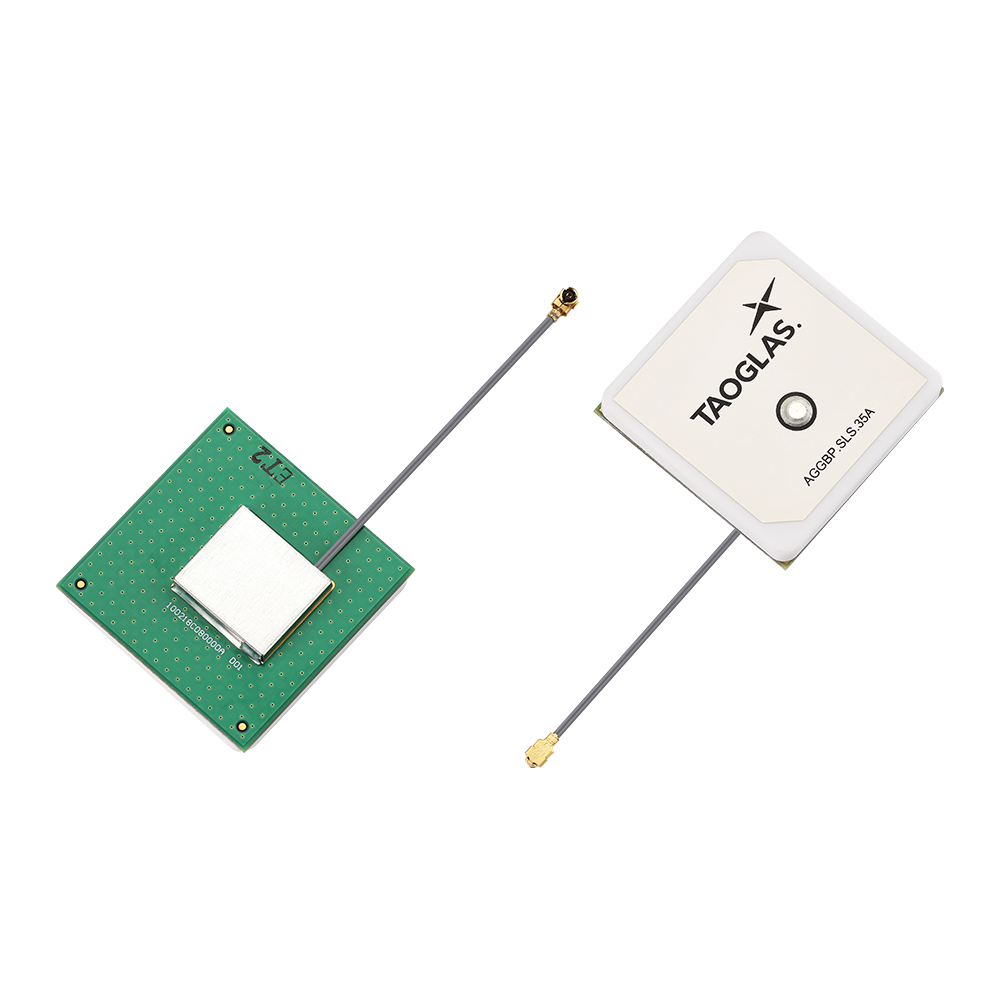

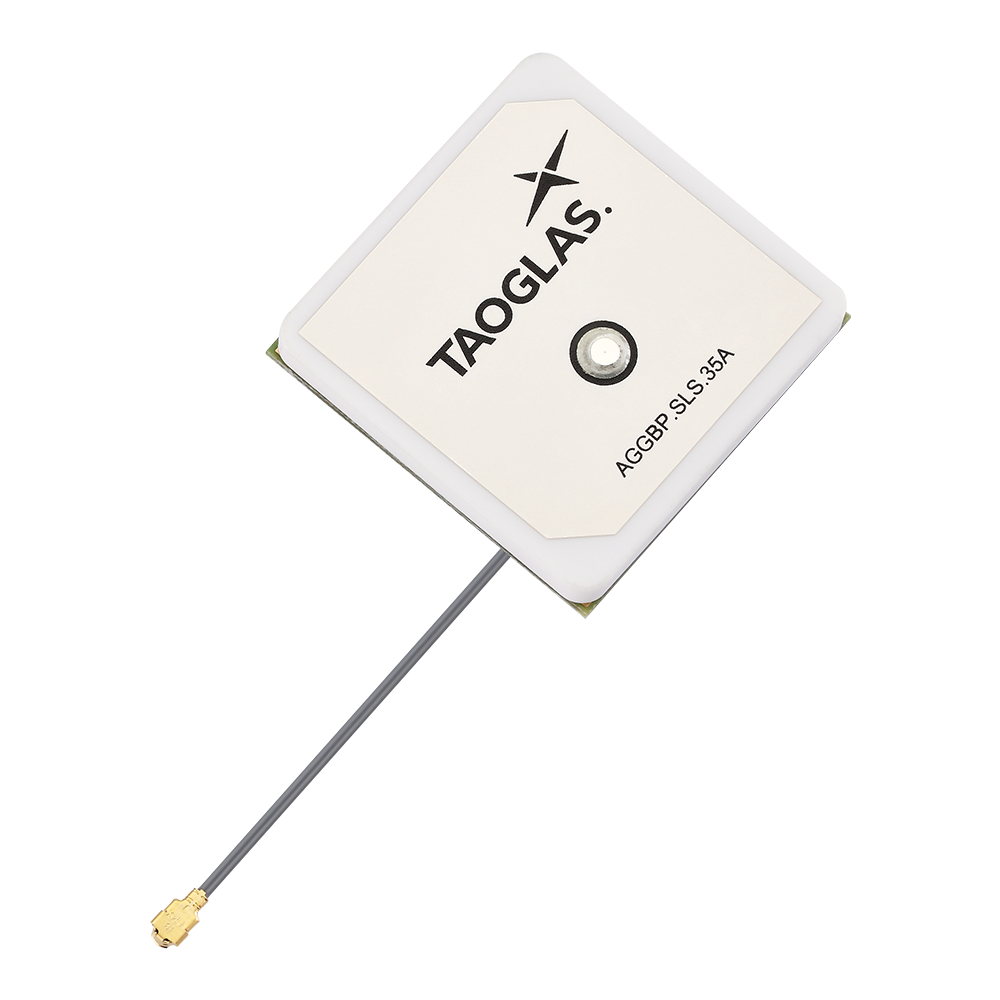

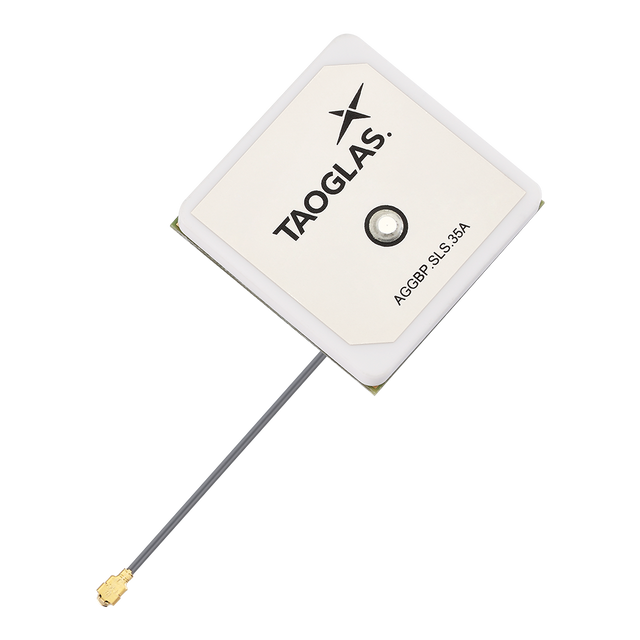

This embedded active GNSS patch antenna is designed for reliable positioning in compact enclosures. It combines a ceramic patch element with a one-stage LNA and SAW filtering to help maintain GNSS performance when placed close to in-device transmitters such as cellular, Wi-Fi, and Bluetooth.
- Multi-constellation support: GPS/GLONASS/Galileo/BeiDou coverage
- Improved in-device resilience: front-end and back-end SAW filters help reduce out-of-band interference
- Low-noise amplification: integrated LNA to support weak-signal reception
- Wide supply range: +1.8V to +5V operation
Typical use cases include: asset tracking, navigation, and transportation systems.
Connector & Cable
- Connector Type: I-PEX MHF I (U.FL)
- Cable Length: 6cm
- Cable Type: 1.13 Coax
Technical Specifications
Operating Temperature: -40 C to 85 C
Antenna Technologies: Patch
Location: Internal
Mounting: Pin/Adhesive
Satellite Navigation: GNSS
Type: Single
Frequency: 1559MHz - 1610MHz
