Description

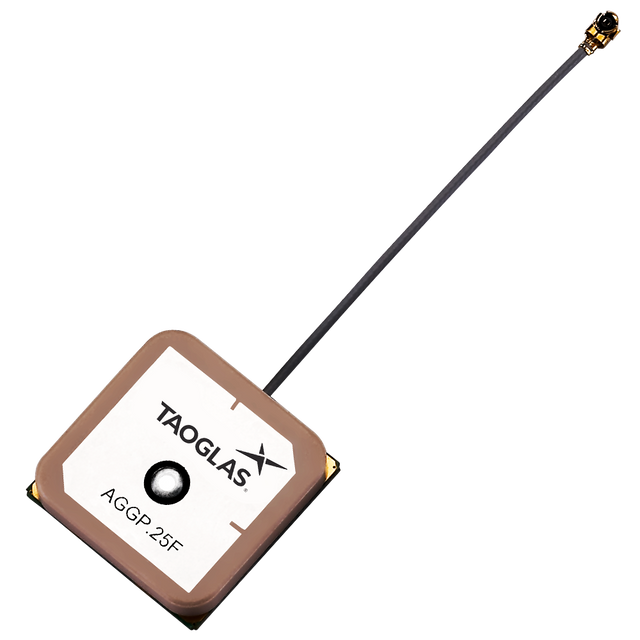

The AGGP.25F is a compact, embedded GNSS active patch antenna module designed for high-performance reception across GPS, GLONASS, and Galileo. Its wide-band ceramic patch element is optimized for strong radiation characteristics and stable performance in embedded device designs.
The integrated two-stage LNA and front-end SAW filter help improve sensitivity while reducing out-of-band noise (for example, interference from nearby cellular radios). This makes it well-suited for modern GNSS receiver platforms where clean RF performance and certification readiness are important.
- Active GNSS patch module for embedded designs
- Two-stage LNA for improved receive performance
- Front-end SAW filtering to help suppress out-of-band interference
- Designed for multi-constellation GNSS (GPS/GLONASS/Galileo)
Connector & Cable
- Connector Type: I-PEX MHF I (U.FL) Connector
- Cable Length: 6cm
- Cable Type: 1.13 Coax
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Patch
Location: Internal
Mounting: Pin/Adhesive Mount
Satellite Navigation: GNSS
Type: Single
GNSS Type: Active GNSS
GNSS Bands: L1
Frequency: 1559MHz - 1610MHz
Impedance: 50Ω
VSWR: 2:1
Polarisation: RHCP
Gain (Max): 31
Dimensions: 25.1*25.1*7.4mm
Weight: 13g
Termination Style: Connector
Connector Type: I-PEX MHF I
Cable Type: 1.13 Coax
Cable Length: 60mm
Connector Body Style: Straight
Connector Polarity: Normal
RoHS: Yes
