Description

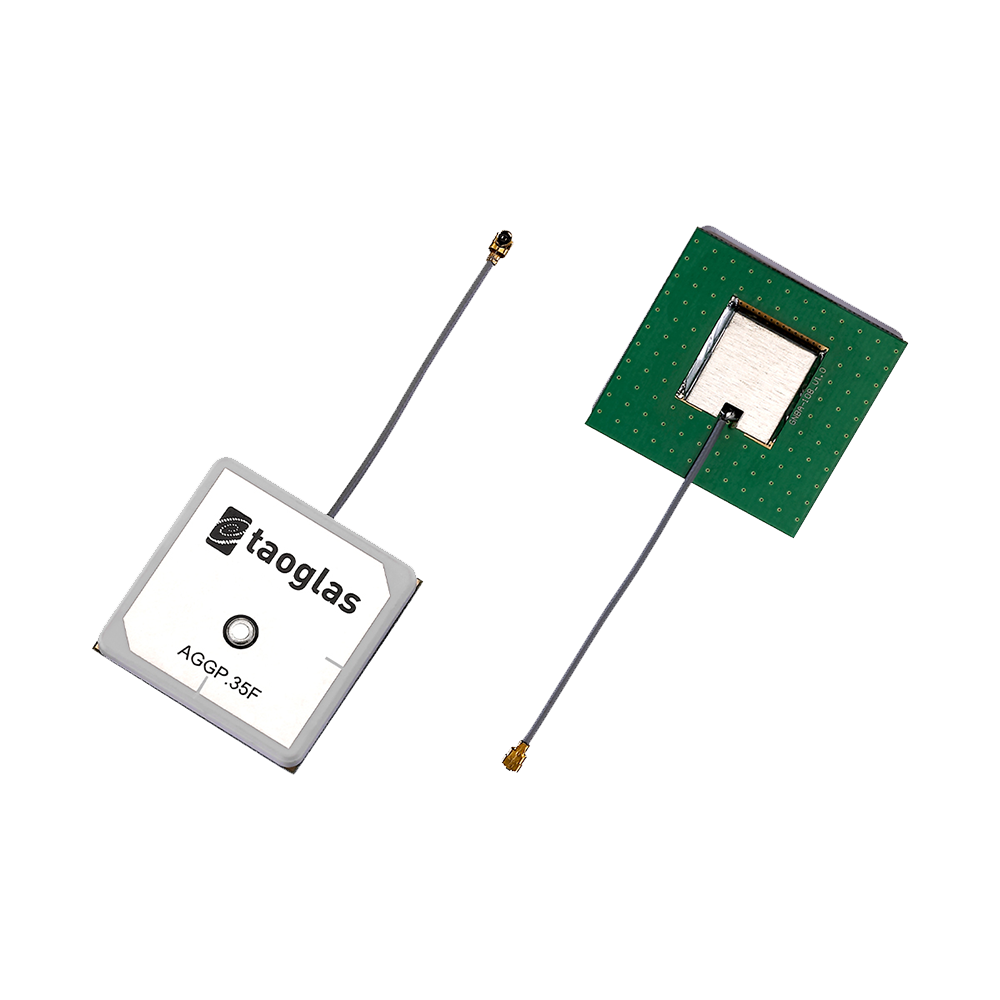

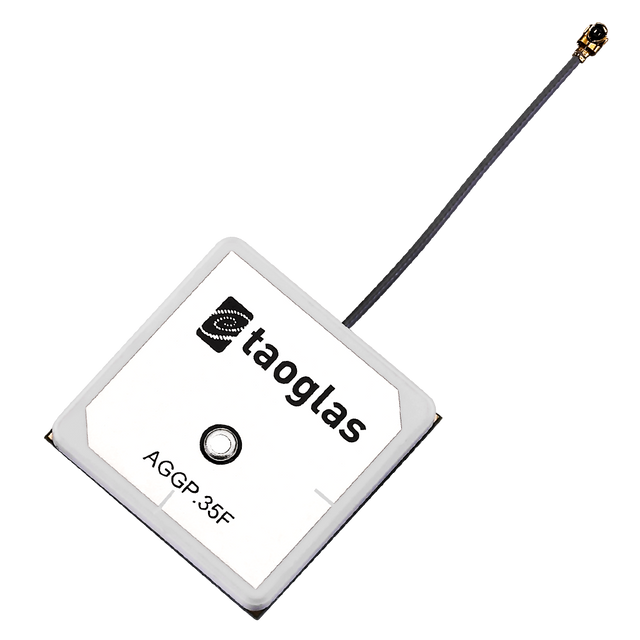

This compact embedded GNSS active patch module is designed for high-performance positioning in space-constrained devices. It combines a wide-band ceramic patch with a two-stage LNA and a front-end SAW filter to help reduce out-of-band interference and improve overall receiver performance.
Suitable for integration with modern GNSS receivers where consistent, repeatable performance is required, including automotive-grade and industrial embedded designs.
Connector & Cable
- Connector Type: I-PEX MHF I (U.FL)
- Cable Length: 6cm
- Cable Type: 1.13 Coax
Technical Specifications
Operating Temperature: -40 C to 85 C
Antenna Technologies: Patch
Location: Internal
Mounting: Pin/Adhesive Mount
Satellite Navigation: GNSS
Type: Single
Dimensions: Ø35 x 6.9 mm
Weight: 37g
GNSS (Active)
Frequency: 1574MHz - 1610MHz
GNSS Bands: L1
Polarization: RHCP
Impedance: 50
VSWR: 2:1
Gain (Max): 31
Connector Type: I-PEX MHF I
Cable Length: 6cm
Cable Type: 1.13 Coax
