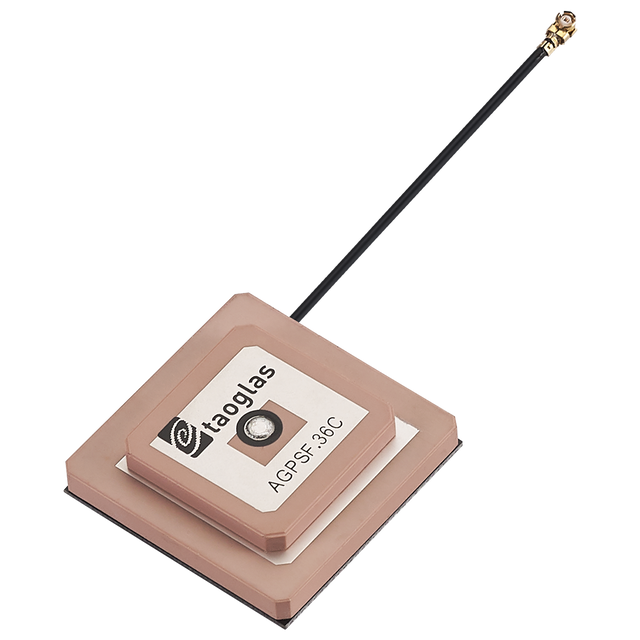

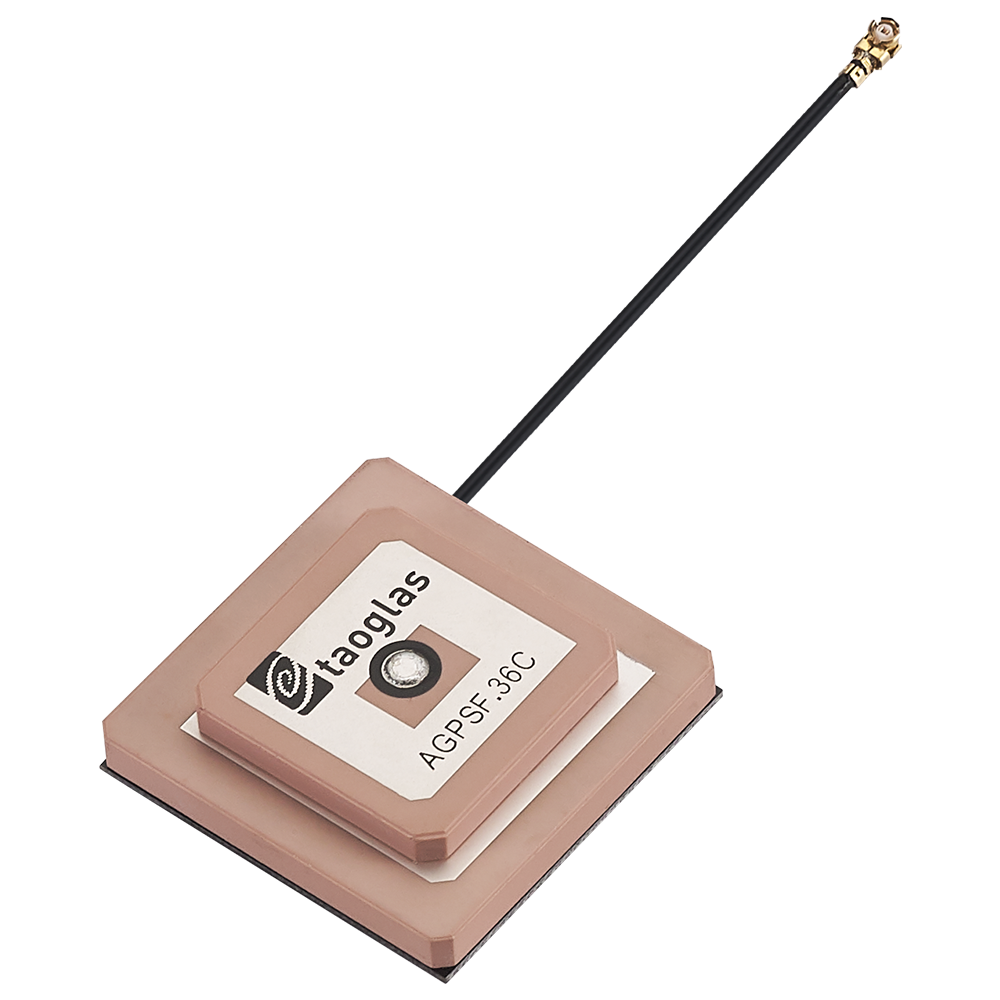

AGPSF.36C.07.0100C Antenna Low-Profile GNSS embedded stacked patch I-PEX MHF I 10cm for UAVs and Robotics, Transportation, Autonomous Vehicles, Marine

Embedded active GNSS L1/L2 stacked patch antenna designed for high-accuracy positioning systems where reliable signal quality and stable performance are critical.

This compact, low-profile stacked patch design supports L1 and L2 operation and integrates a 2-stage LNA with SAW filtering to help preserve signal integrity, reduce susceptibility to out-of-band interference, and support fast, consistent positioning performance.

• Dual-band GNSS support: L1/L2 operation for improved positioning robustness
• Low noise figure: helps maintain receiver sensitivity
• Excellent out-of-band rejection: helps protect against strong nearby interferers
• Low axial ratio: supports strong RHCP GNSS reception
• Designed for precision use cases: supports centimeter-level tracking workflows (e.g., RTK systems)

Typical applications include: UAVs and Robotics, Transportation, Autonomous Vehicles, Marine, Agriculture, Navigation, and RTK.

Connector & Cable

• Connector Type: I-PEX MHF I
• Cable Length: 10cm
• Cable Type: 1.37 Coax

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: Patch
Location: Internal
Mounting: Pin/Adhesive Mount
Satellite Navigation: GNSS
Type: Single
GNSS Type: Active GNSS
GNSS Bands: L1/L2
Frequency: 1227MHz - 1575.42MHz
Polarization: RHCP
Impedance: 50Ω
VSWR: 2:1
Gain (Max): 21
Dimensions: 35*35*11.1mm
Weight: 32g
Connector Type: I-PEX MHF I
Cable Length: 10cm
Cable Type: 1.37 Coax
