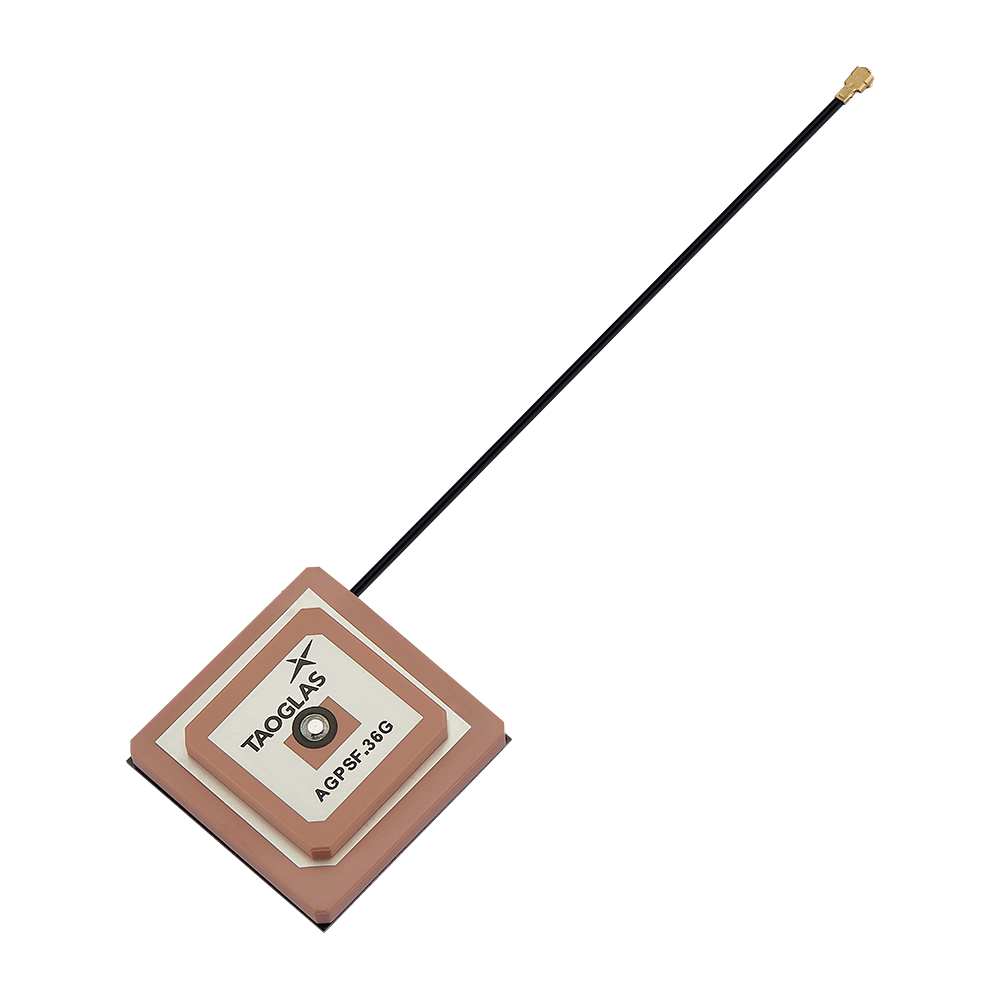

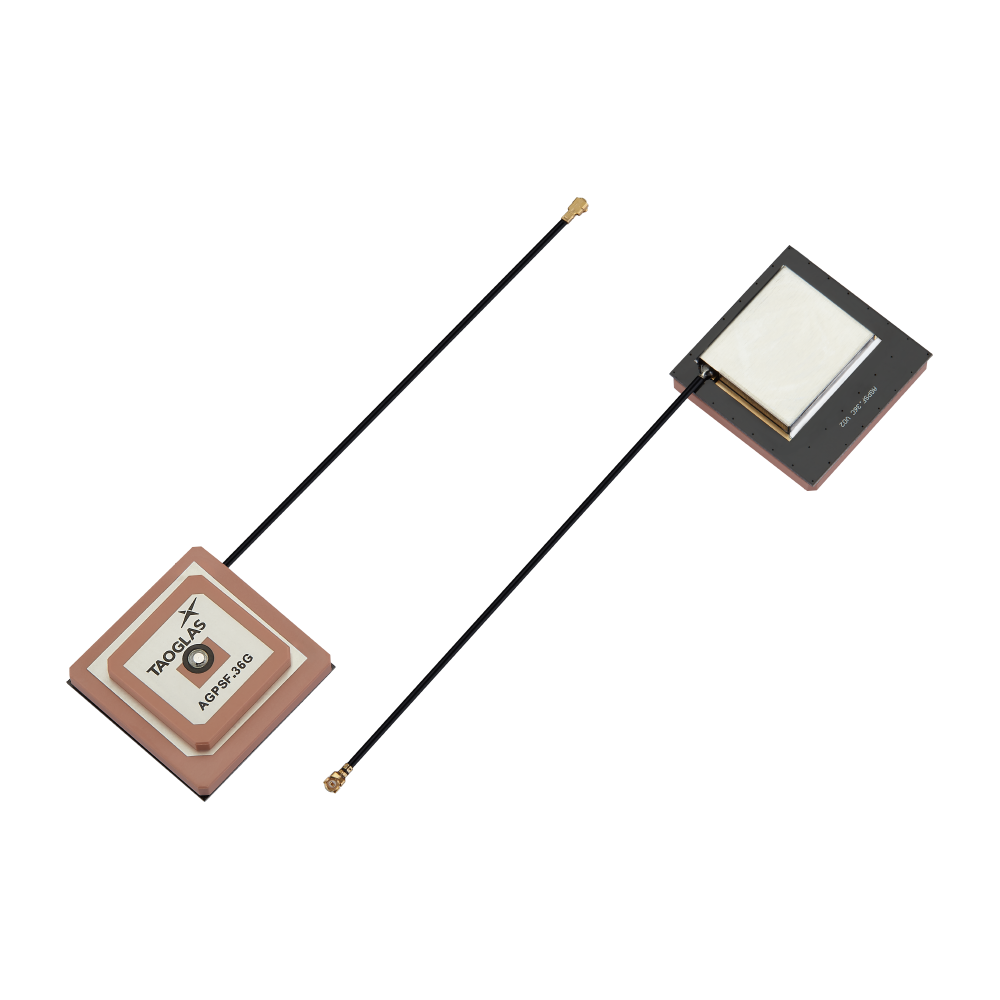

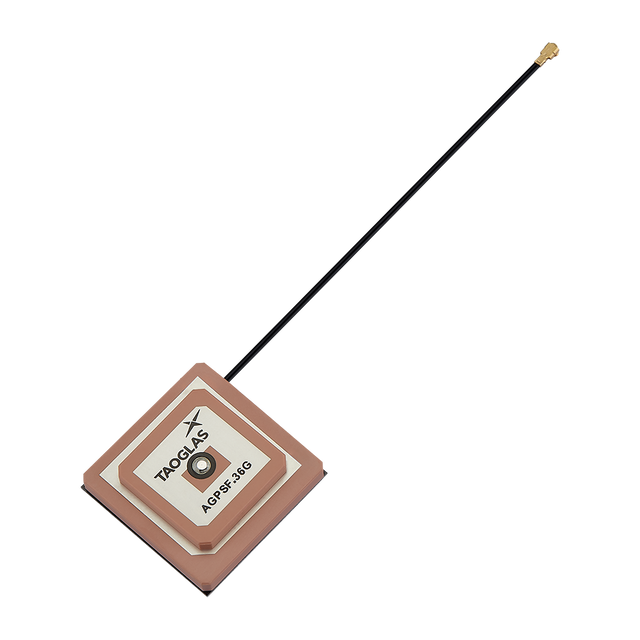

AGPSF.36G.07.0100C Antenna Active Dual-Band GNSS embedded stacked patch I-PEX MHFHT 10cm for UAVs and Robotics, E-Mobility and E-Scooters, Precision Agriculture, Navigation

This active, embedded dual-band GNSS stacked patch antenna is designed for high-accuracy positioning applications where stable performance and strong signal quality are required.

• Multi-constellation support: GPS/QZSS, GLONASS, BeiDou, and Galileo
• Dual-band operation: supports L1 and L2 bands for improved positioning accuracy
• Signal quality focused: low noise figure, low axial ratio, and excellent out-of-band rejection
• Integrated filtering and amplification: 2-stage LNA and SAW filter
• Designed for integration: suitable for embedded device designs and customizable cable/connector options

Typical applications include: UAVs and Robotics, E-Mobility and E-Scooters, Precision Agriculture, and Navigation.

Connector & Cable

• Connector Type: I-PEX MHFHT (U.FL Compatible)
• Cable Length: 10cm
• Cable Type: 1.37 Coax

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: Patch
Location: Internal
Mounting: Pin/Adhesive Mount
Satellite Navigation: GNSS
Type: Single
Dimensions: 35*35*11.1mm
Weight: 32g

GNSS (Active)

Frequency: 1207MHz - 1610MHz
GNSS Bands: L1/L2
Standards: GPS/QZSS (L1/L2), GLONASS (G1/G3), BeiDou (B1/B2b), Galileo (E1/E5b)
Polarization: RHCP
Impedance: 50Ω
VSWR: 2:1
Gain (Max): 22.6
Input Voltage (V): 1.8 to 5.5
Connector Type: I-PEX MHFHT (U.FL Compatible)
Cable Length: 10cm
Cable Type: 1.37 Coax

Download Datasheet PDF
