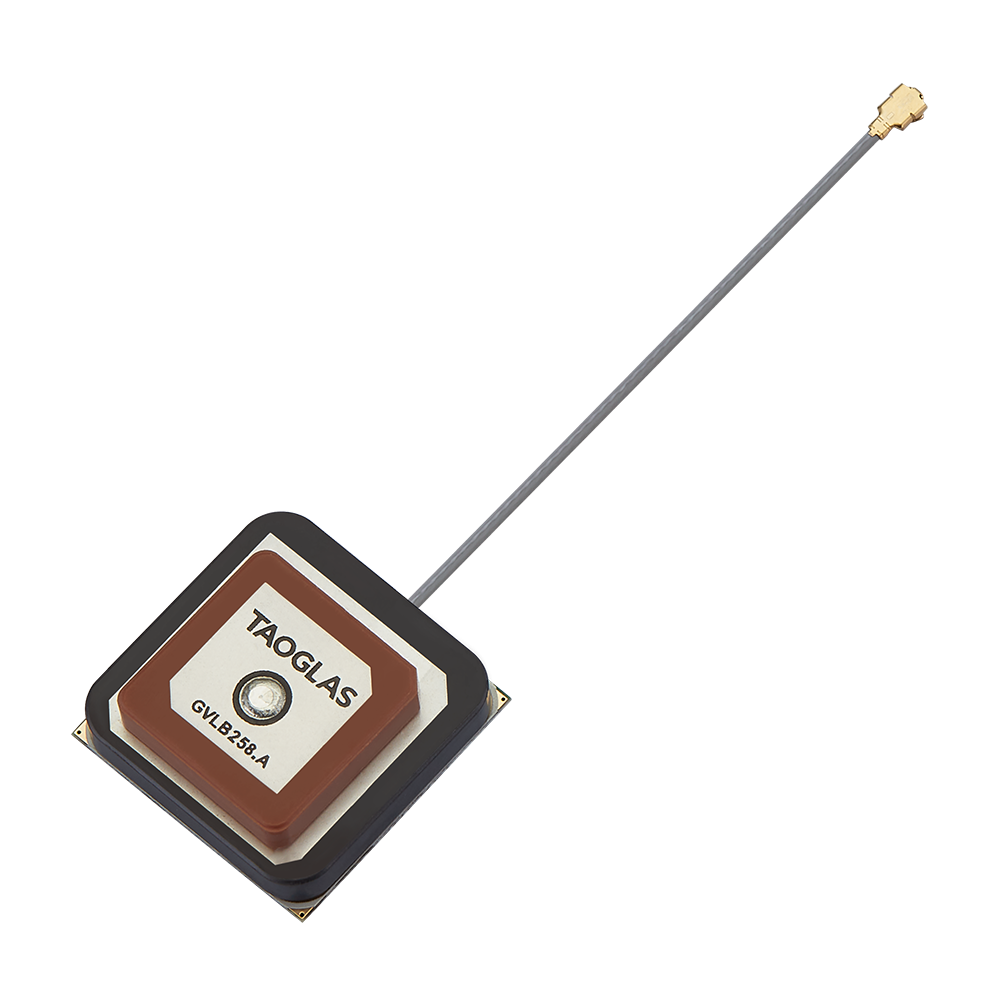

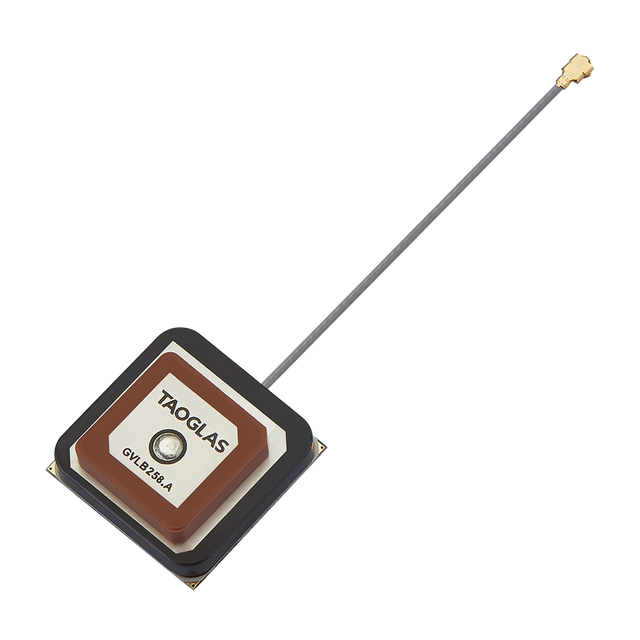

AGVLB.25A.07.0060A Antenna GNSS stacked patch I-PEX MHF I 6cm for RTK, Wearables, Transportation, Agriculture

GNSS L1/L5 active stacked patch antenna designed for in-device integration where high-precision positioning and fast acquisition are required.

• Supports GPS L1 & L5, Galileo E1 & E5a, BeiDou B1 & B2a, GLONASS G1, and IRNSS L5
• Optimized for compact device designs
• Designed to deliver strong radiation performance for positioning applications

Typical applications include: RTK, Wearables, Transportation, Agriculture, Navigation, Security, Autonomous Vehicles.

Connector & Cable

• Connector Type: I-PEX MHF I (U.FL Compatible)
• Cable Length: 6cm
• Cable Type: 1.13 Coax

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: Patch
Location: Internal
Mounting: Pin/Adhesive Mount
Satellite Navigation: GNSS
Type: Single
Frequency: 1160MHz - 1610MHz
GNSS Type: Active GNSS
GNSS Bands: L1/L5
Impedance: 50Ω
VSWR: 2
Gain (Max): 12.6
Dimensions: 25*25*12mm
Weight: 21g
