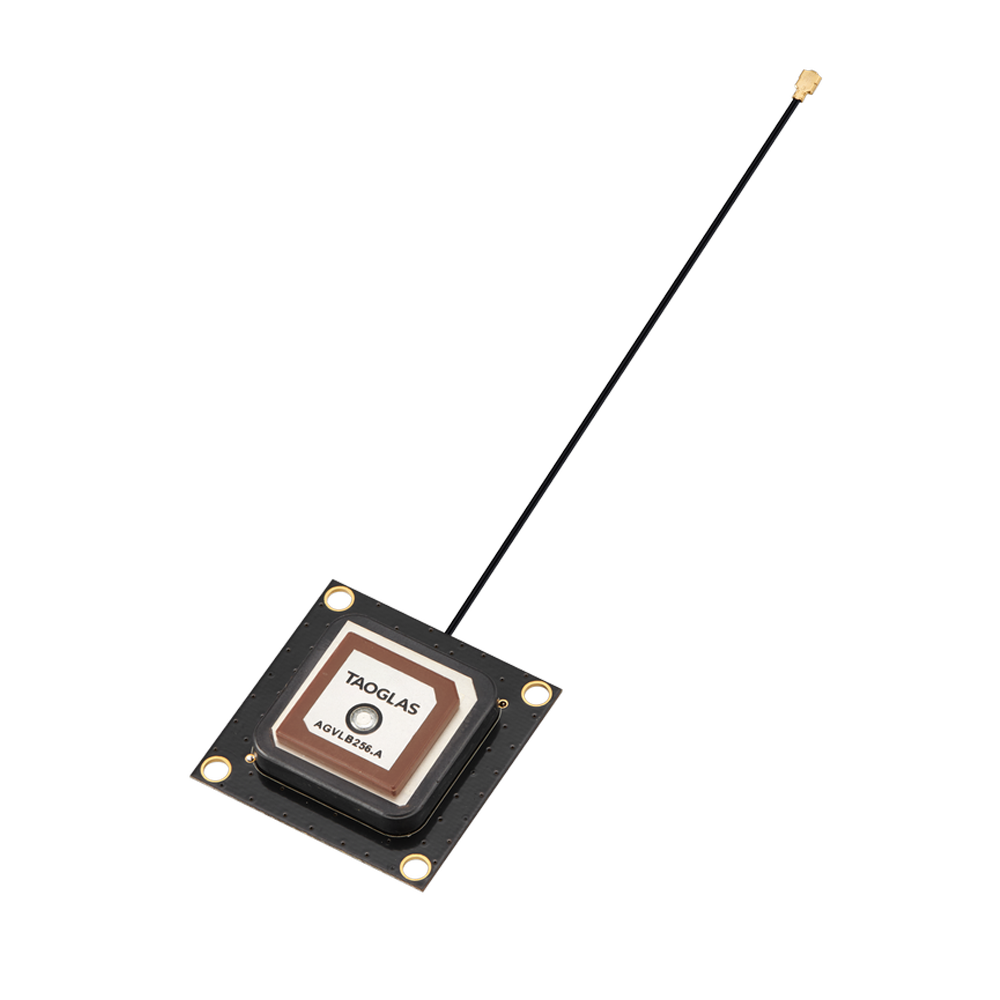

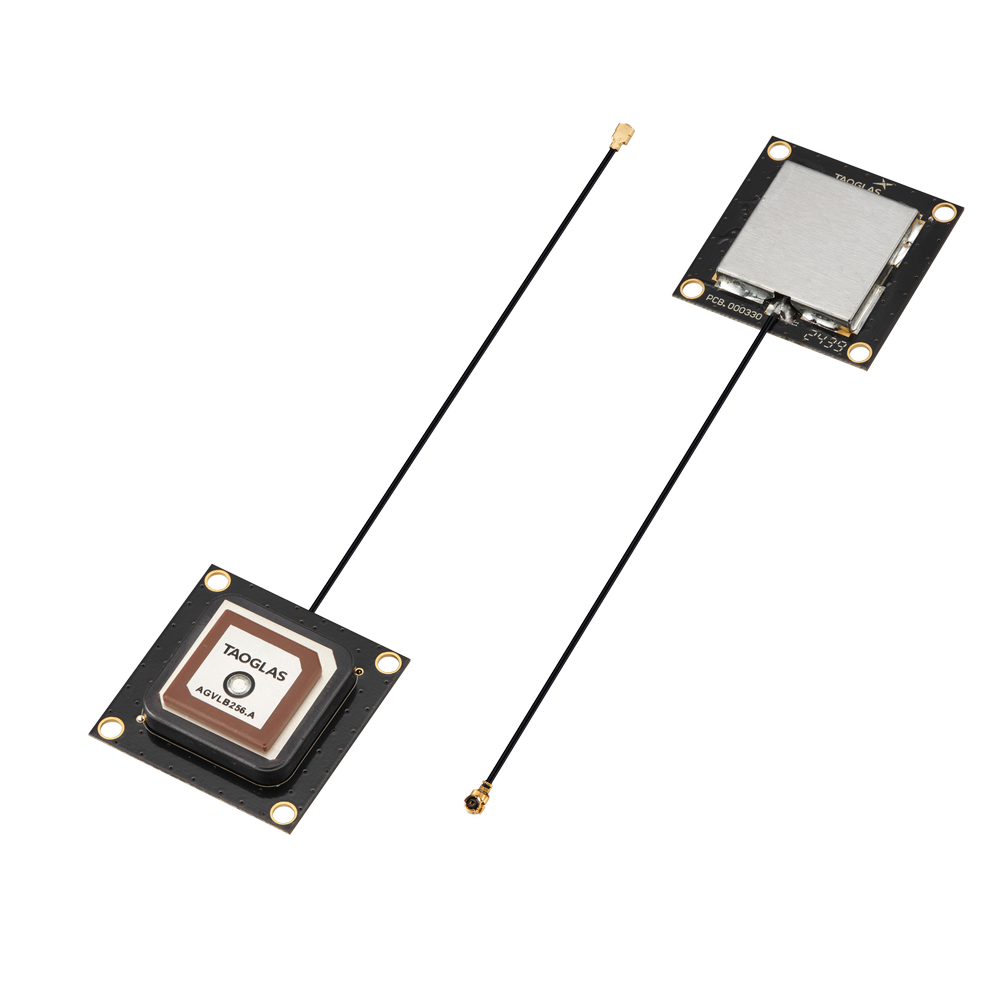

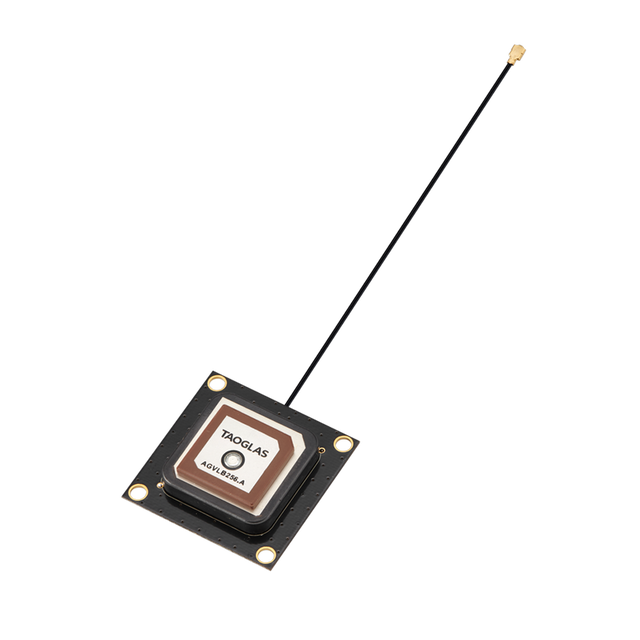

AGVLB256.A.07.0100AO Antenna GNSS stacked active patch module I-PEX MHF I 10cm for Autonomous Vehicles, Precision Agriculture, Surveying & Mapping Equipment, Telematics & Fleet Management

GNSS L1/L5 stacked active patch antenna designed for high-precision positioning and fast acquisition in compact devices. The stacked patch design supports key GNSS constellations and bands to help improve navigation accuracy.

Built as a small in-device module, it features a dual-stage LNA to help preserve signal quality and includes strong out-of-band rejection to help protect the LNA from interference.

Typical use cases include autonomous systems, precision agriculture, surveying/mapping equipment, fleet/telematics, industrial & construction machinery, and marine navigation systems.

Connector & Cable

• Connector Type: I-PEX MHF I (U.FL Compatible)
• Cable Length: 10cm
• Cable Type: 1.13 Coax

Technical Specifications

Operating Temperature: -40 C to 85 C
Antenna Technologies: Patch
Location: Internal
Mounting: Pin/Adhesive Mount
Satellite Navigation: GNSS
Type: Single
GNSS Type: Active GNSS
GNSS Bands: L1/L5
Frequency: 1176.45MHz - 1603MHz
Polarization: RHCP
Impedance: 50 0A9
VSWR: 2:1
Gain (Max): 30.37
Dimensions: Ø25 x 10 mm
Weight: 30g
Connector Type: I-PEX MHF I
Cable Length: 10cm
Cable Type: 1.13 Coax
