Description

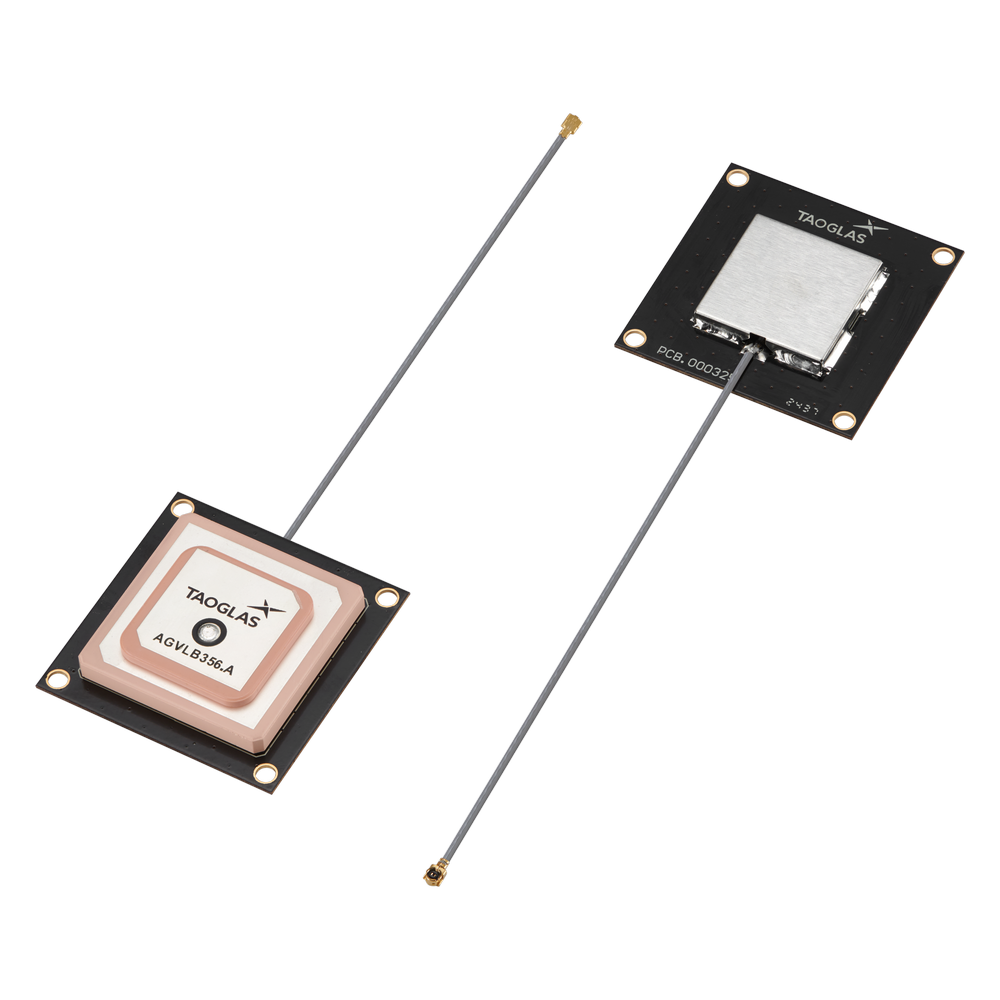

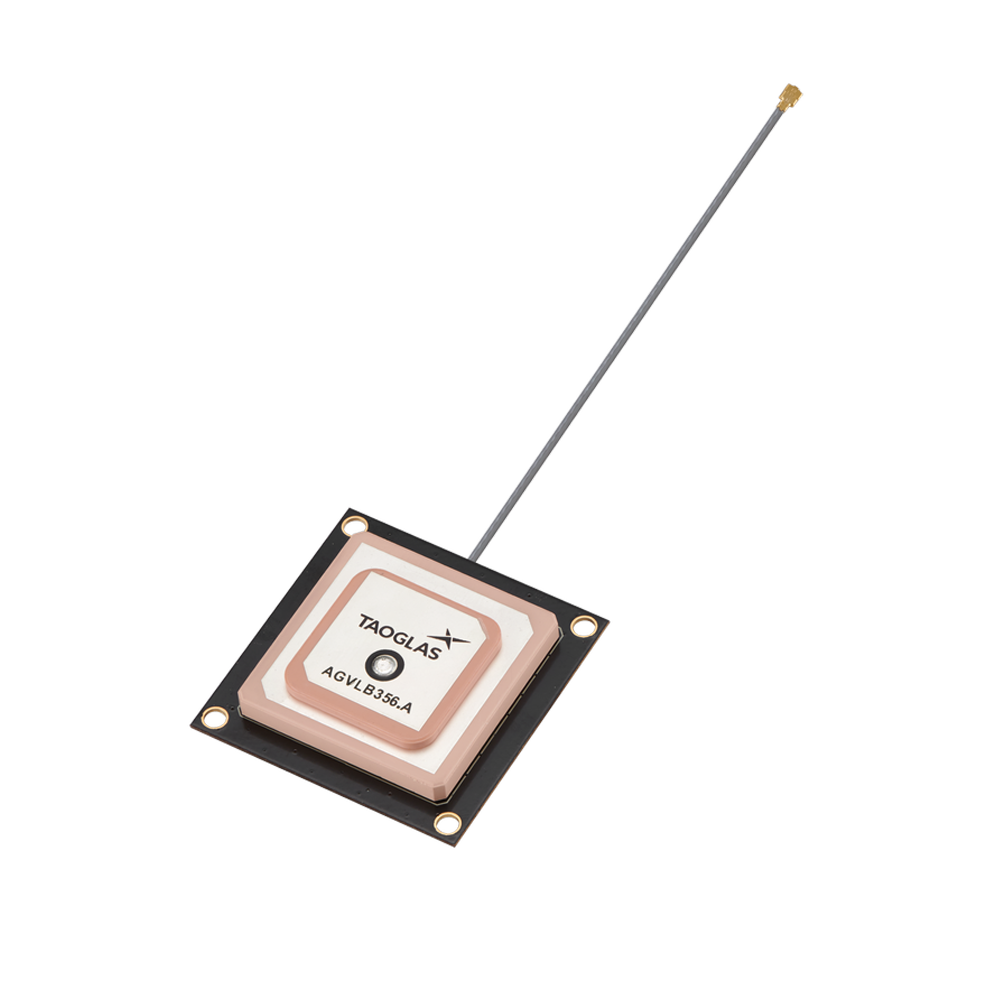

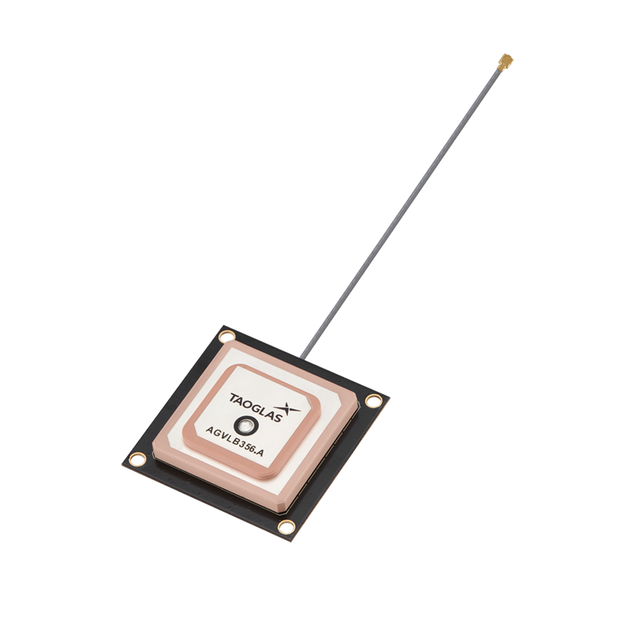

High-precision GNSS embedded active patch antenna designed for compact devices that need fast positioning and strong, stable reception. This stacked patch module supports multiple satellite constellations and includes a dual-stage LNA to help preserve signal quality and reduce time to first fix.
Optimized for center positioning on a 70x70mm ground plane, it is well-suited for space-constrained designs where consistent GNSS performance is required.
Typical use cases include:
- Smart Infrastructure & IoT Gateways
- Transportation
- Agriculture
- Navigation
- Security
- Autonomous Vehicles
Connector & Cable
- Connector Type: I-PEX MHF I (U.FL Compatible)
- Cable Length: 10cm
- Cable Type: 1.13 Coax
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Patch
Location: Internal
Mounting: Pin/Adhesive Mount
Satellite Navigation: GNSS
Type: Single
Dimensions: Ø35 x 10 mm
Weight: 35g
GNSS (Active)
Frequency: 1176.45MHz - 1603MHz
GNSS Bands: L1/L5
Impedance: 50
Polarization: RHCP
VSWR: 2:1
Gain (Max): 30.1
Connector Type: I-PEX MHF I (U.FL Compatible)
Cable Length: 10cm
Cable Type: 1.13 Coax
