Description

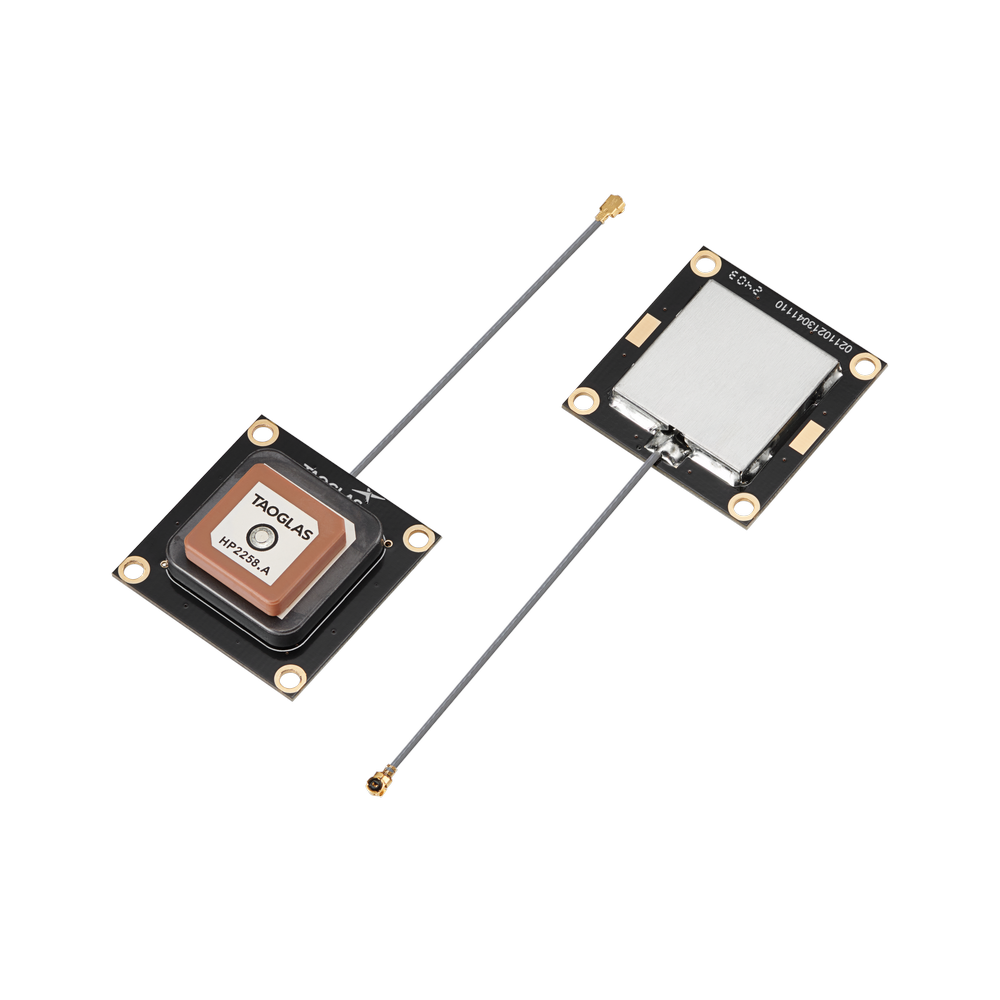

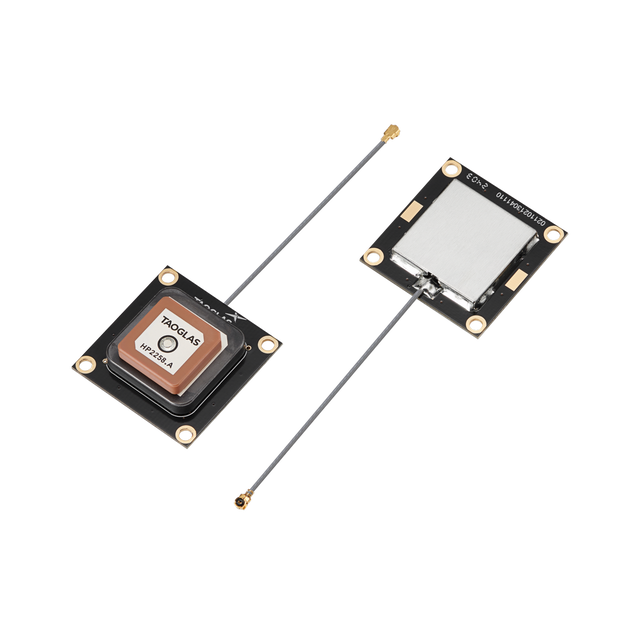

This active multi-band GNSS patch antenna is designed for high-precision positioning and fast time-to-first-fix performance in compact embedded devices. The dual-stacked ceramic patch construction supports key L1/L2 navigation systems including GPS, Galileo, GLONASS, and BeiDou.
Its directional RHCP radiation characteristics make it well-suited for reliable satellite reception, while the compact format and corner mounting holes simplify integration into end products.
Typical use cases include:
- Wearables
- Transportation
- Precision Agriculture
- Navigation
- Robotics
- Autonomous Vehicles
Connector & Cable
- Connector Type: I-PEX MHF I (U.FL)
- Cable Length: 6cm
- Cable Type: 1.13 Coax
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Patch
Location: Internal
Mounting: SMD/SMT Mount
Satellite Navigation: GNSS
Type: Single
Dimensions: Ø25 x 8.1 mm
Weight: 20g
GNSS (Active)
Frequency: 1200MHz - 1610MHz
GNSS Bands: L1/L2
Polarization: RHCP
Impedance: 50 Ω
VSWR: <2
Radiation Pattern: Directional
Gain (Max): 29.5
Connector Type: I-PEX MHF I (U.FL)
Cable Length: 6cm
Cable Type: 1.13 Coax
