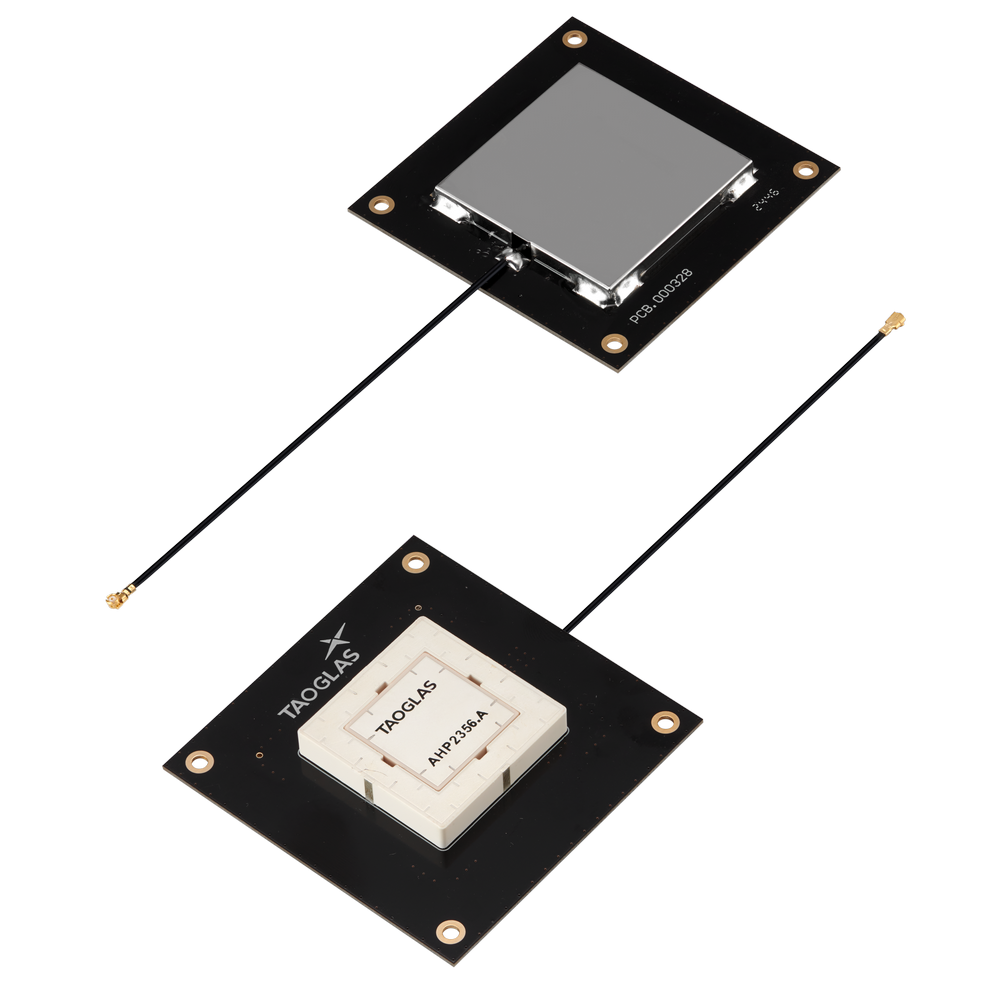

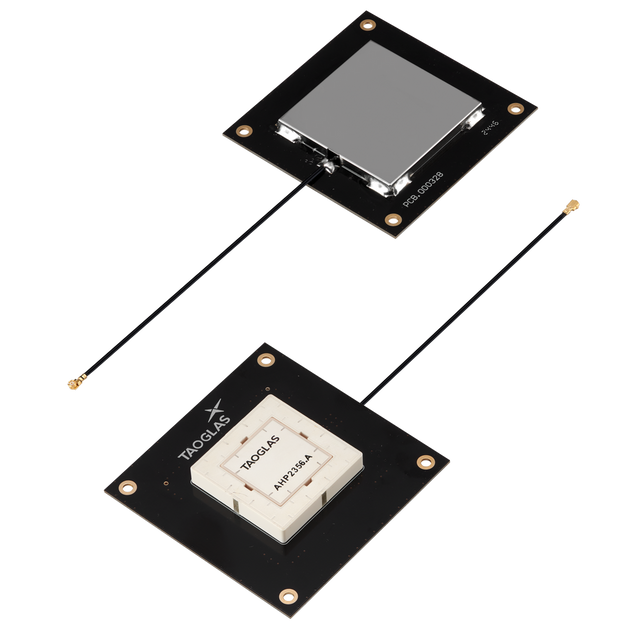

AHP2356A.07.0100C Antenna High-Precision GNSS screw mount patch I-PEX MHF I 10cm for Precision Agriculture, Asset Tracking, Navigation Systems, Autonomous Vehicles & Robotics

High-precision active GNSS patch antenna designed for next-generation positioning systems that need reliable multi-constellation reception in a compact format. The integrated 2-stage LNA helps improve signal clarity with strong out-of-band rejection, supporting stable performance in challenging RF environments.

Supports major GNSS constellations including GPS/QZSS, Galileo, GLONASS, and BeiDou—ideal for space-constrained devices that require accurate positioning and consistent navigation performance.

• Active GNSS patch with 2-stage LNA for enhanced reception
• Multi-constellation support for robust positioning
• Optimized for compact designs requiring a low-profile solution

Typical use cases: Precision Agriculture, Asset Tracking, Navigation Systems, Autonomous Vehicles & Robotics, Industrial and Commercial Tracking, Surveying Equipment

Connector & Cable

• Connector Type: I-PEX MHF I
• Cable Length: 10cm
• Cable Type: 1.37 Coaxial

Technical Specifications

Operating Temperature: -40 to +85c
Antenna Technologies: Patch
Location: Internal
Mounting: Screw Mount
Satellite Navigation: GNSS
Type: Single
Dimensions: Ø70 x 11 mm
Weight: 56g
Impedance: 50 a9
Polarization: RHCP

GNSS (Active)

Frequency: 1207 - 1603 MHz
Standards: BeiDou (B1C/B1I), GPS/QZSS (L1/L2), Galileo (E1/E5b), GLONASS (G1)
GNSS Bands: L1/L2
VSWR: 2:1
Gain (Max): 33.2
Voltage in (V): 1.8~5.5V
Current Consumption (mA): 18 e 3
Out Of Band Rejection: > 70dB @ 700-960 MHz; > 60dB @ 1710-3000 MHz
Connector Type: I-PEX MHF I
Cable Length: 10cm
Cable Type: 1.37 Coaxial

Download Datasheet PDF
