Description

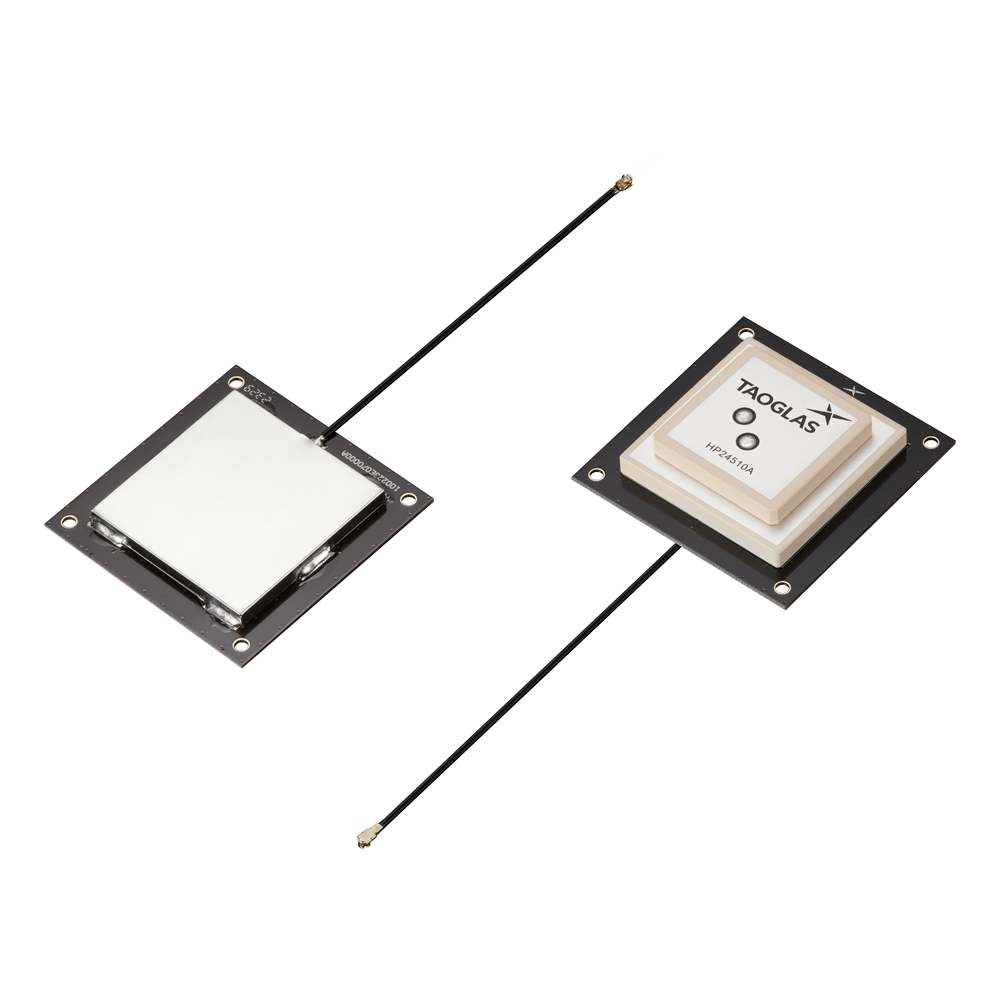

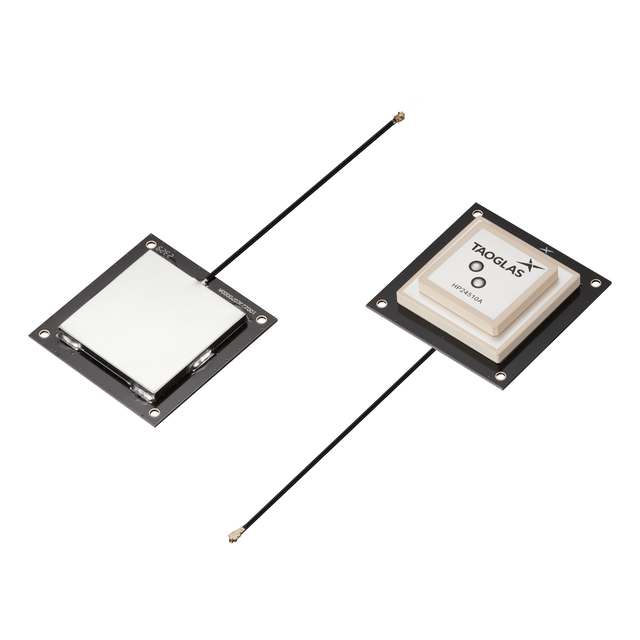

Levity Series active GNSS patch antenna designed for high-precision positioning and fast time-to-fix. The dual-feed stacked patch design supports L1, L2, and L-Band correction services, making it well-suited for next-generation high-precision GNSS receivers.
Optimized for strong directional performance when integrated into customer devices, and supplied with 4 corner screw holes to support straightforward mechanical integration.
Typical Applications
- Wearables
- Transportation
- Precision Agriculture
- Navigation
- Robotics
- Autonomous Vehicles
Connector & Cable
- Connector Type: U.FL (I-PEX MHF I)
- Cable Length: 10cm
- Cable Type: 1.37 Coax
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Patch
Location: Internal
Mounting: Pin/Adhesive Mount
Satellite Navigation: GNSS
Type: Single
GNSS Type: Active GNSS
GNSS Bands: L1/L2/L-Band
Patch Dimensions: 45x45x10mm
Overall Dimensions: 60x60x15mm
Weight: 70g
GNSS (Active)
Frequency: 1200MHz - 1610MHz
Polarisation: RHCP
Impedance: 50 Ω
VSWR: 1:1
Gain (Max): 29.2
Connector Type: I-PEX MHF I (U.FL)
Cable Length: 10cm
Cable Type: 1.37 Coax
