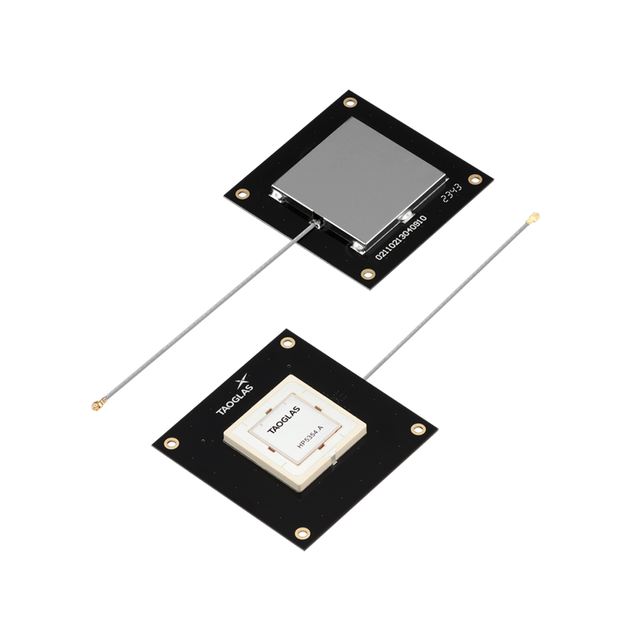

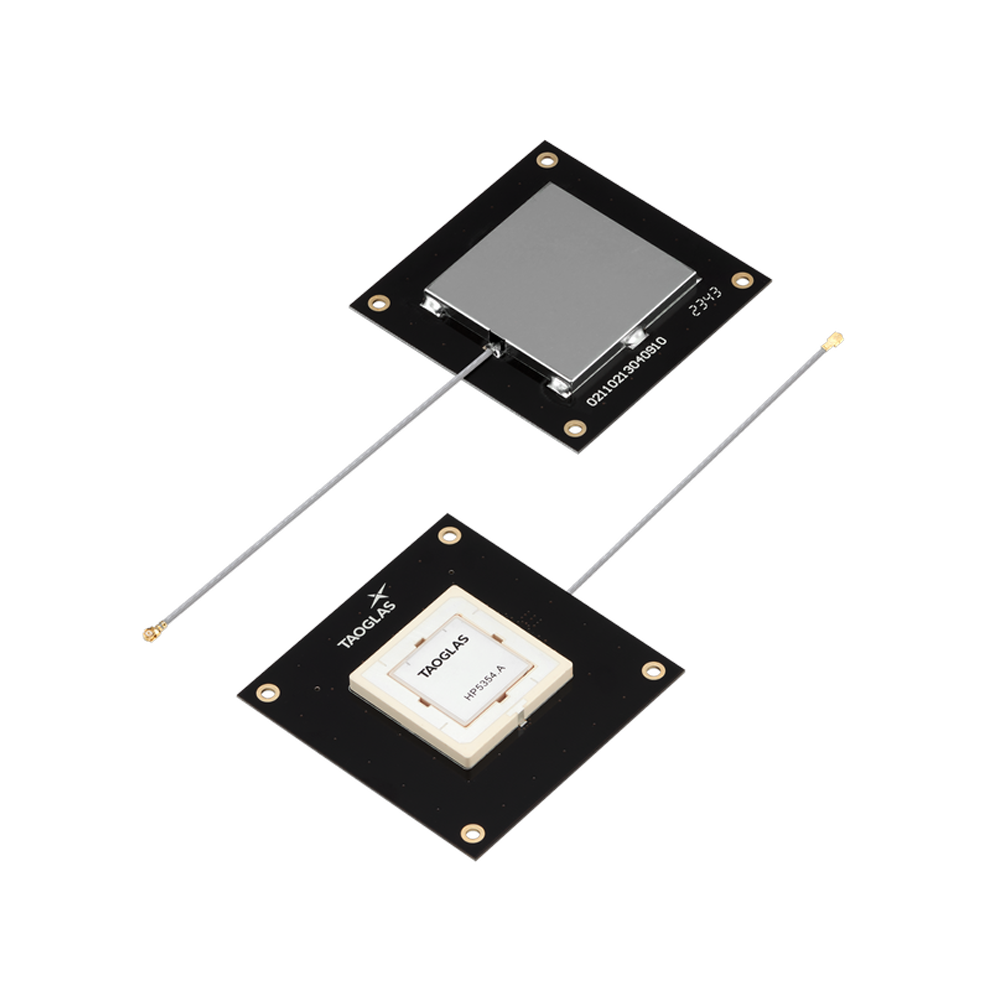

AHP5354A.07.0100C Antenna High Precision Multiband GNSS screw mount patch Inception U.FL 10cm for Wearables, Transportation, Precision Agriculture, Navigation

This high-precision, active multiband GNSS patch antenna is designed for fast positioning and robust performance in compact devices. Its stacked patch design and optimized directional radiation characteristics make it well-suited to demanding L1/L5 GNSS receiver platforms.

It is intended for straightforward device integration using mounting holes on the PCB, making it a strong choice for embedded navigation and positioning systems where repeatable performance is required.

Typical use cases include:

• Wearables
• Transportation
• Precision Agriculture
• Navigation
• Robotics
• Autonomous Vehicles

Connector & Cable

• Connector Type: I-PEX MHFI (U.FL)
• Cable Length: 10cm
• Cable Type: 1.37 Coax
• Notes: Custom cables and connectors available

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: Patch
Location: Internal
Mounting: Screw Mount
Satellite Navigation: GNSS
Type: Single
Dimensions: Ø35 x 10 mm
Total Dimension (Including Shielding Case): 70 x 70 x 9mm
Weight: 34.5g

GNSS (Active)

Frequency: 1160MHz - 1610MHz
GNSS Bands: L1/L5
Standards: BeiDou (B1/B2a), GPS/QZSS (L1/L5), GLONASS (G1), Galileo (E1/E5a), SBAS, IRNSS (Regional)
Polarization: RHCP
Impedance: 50 Ω
VSWR (max.): 2:1
Gain (Max): 29.2
Current Consumption: 5mA
Voltage in: + 1.8 to 5.5V
Connector Type: I-PEX MHFI (U.FL)
Cable Length: 10cm
Cable Type: 1.37mm Coaxial Cable

Download Datasheet PDF
