Description

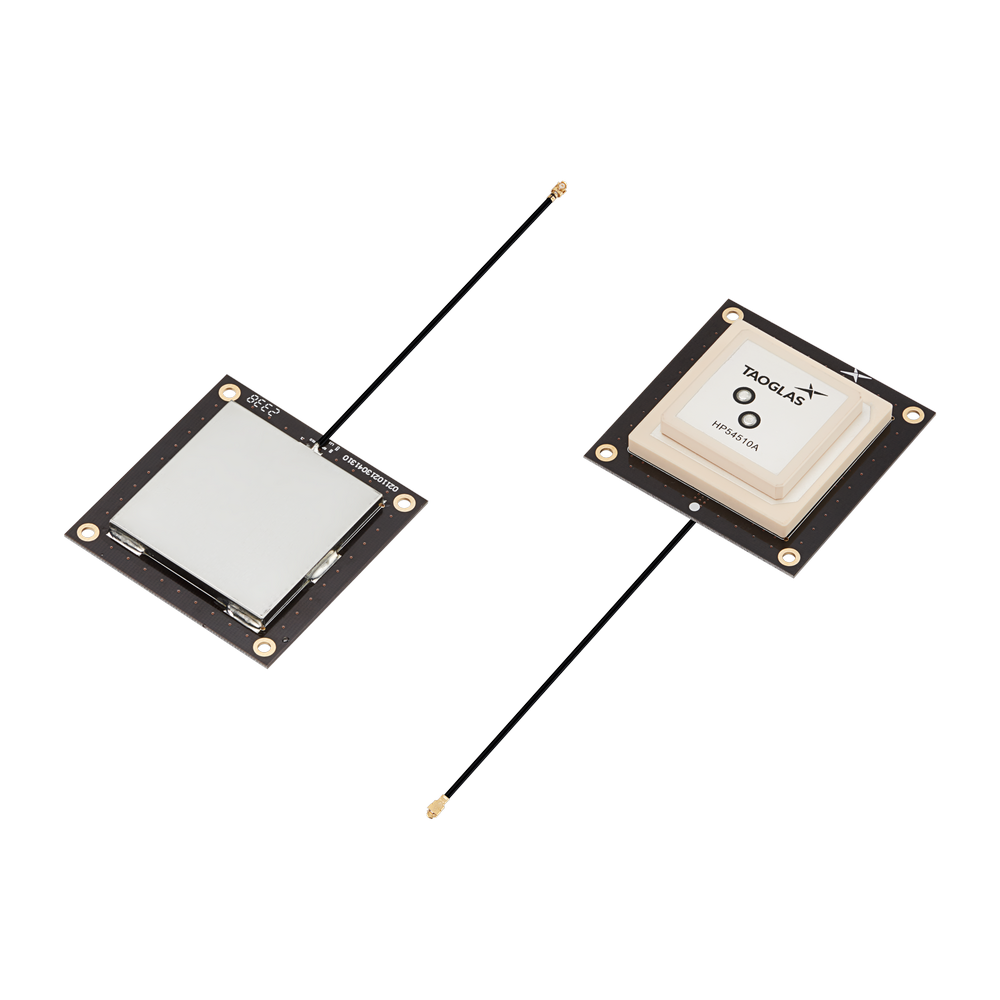

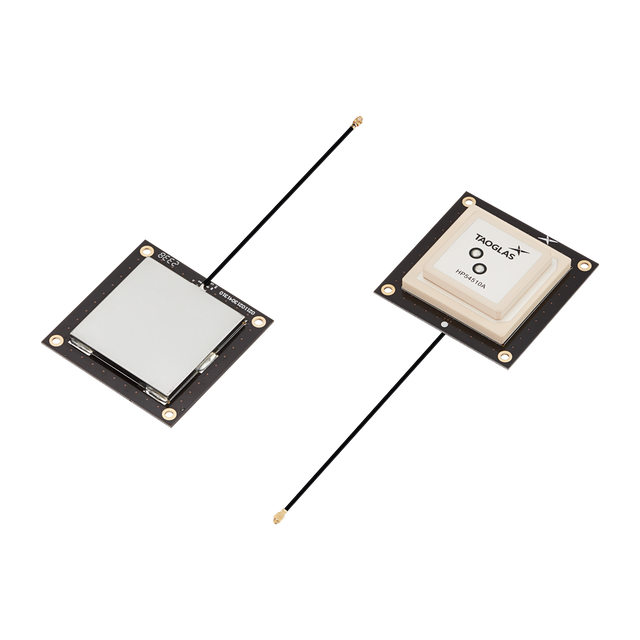

This compact, dual-feed stacked patch antenna is designed for high-precision GNSS positioning and fast time-to-first-fix performance in integrated devices. It supports L1, L5, and L-Band coverage for modern multi-band receivers and correction-services workflows.
Key benefits
- High-precision GNSS support for advanced receivers
- Directional patch design for consistent positioning performance
- Designed for straightforward integration using corner screw holes
Typical use cases
- Wearables
- Transportation
- Precision Agriculture
- Navigation
- Robotics
- Autonomous Vehicles
Connector & Cable
- Connector Type: U.FL (I-PEX MHF I)
- Cable Length: 10cm
- Cable Type: 1.37 Coax
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Patch
Location: Internal
Mounting: SMD/SMT Mount
Satellite Navigation: GNSS
Type: Single
Frequency: 1166MHz - 1610MHz
GNSS Type: Active GNSS
GNSS Bands: L1/L5/L-Band
Impedance: 50Ω
VSWR: 2:1
Polarity: RHCP
Gain (Max): 27.4
Dimensions: Ø45 x 10 mm
Weight: 70g
Connector Type: I-PEX MHF I
Cable Type: 1.37 Coax
Cable Length: 10cm
