Description

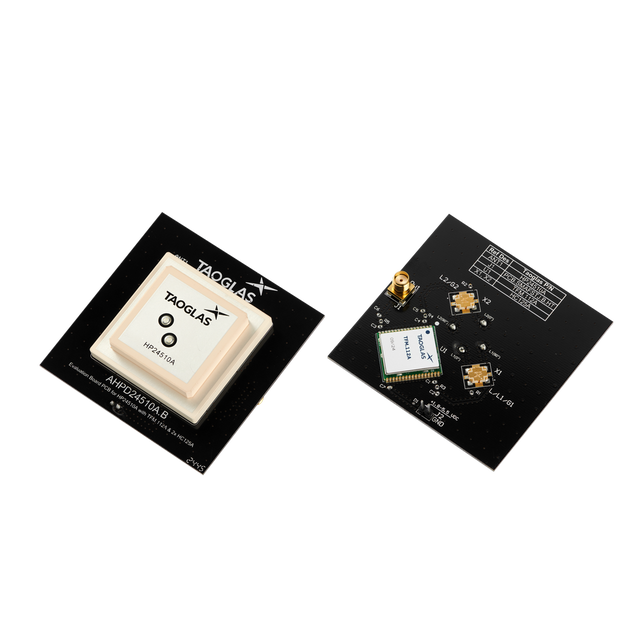

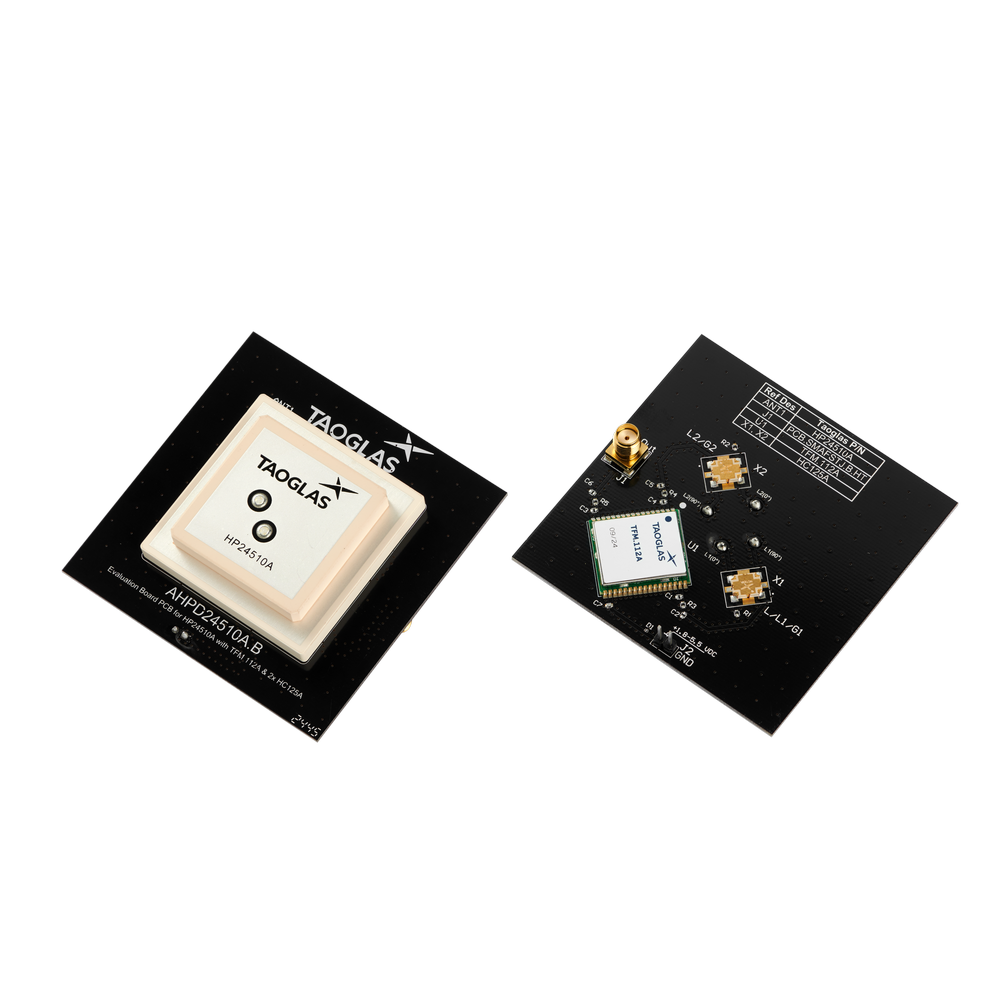

AHPD24510A.B is a GNSS reference design evaluation board created to demonstrate an optimum component layout for integrating front-end active electronics with a passive GNSS antenna on your device PCB.
It combines an integrated TFM module and hybrid couplers to help improve robustness against out-of-band interference while supporting multi-constellation GNSS operation for precision positioning development and validation.
- Optimized reference layout to accelerate GNSS RF design and integration
- Integrated front-end module + hybrid couplers for multi-band GNSS signal paths
- Bands/constellations supported: BeiDou (B1/B2b), GPS/QZSS (L1/L2), GLONASS (G1/G2/G3), Galileo (E1/E5b), and L-Band corrections
Integration files are available via the standard product page for HP24510A (Altium, 2D, and 3D formats).
Connector & Cable
- Connector Type: SMA-F
Technical Specifications
Operating Temperature: -40°C to 85°C
Location: Internal
Mounting: PCB Mount
Satellite Navigation: GNSS
Type: Single
Dimensions: Ø70.4 x 22.1 mm
Storage Temperature: -40°C to 85°C
Relative Humidity: Non-condensing 65°C 95% RH
GNSS (Reference Design / Active Front-End)
Frequency: 1176.45, 1201.5, 1207, 1207.14, 1227.6, 1248, 1268.52, 1278.75, 1542, 1561, 1575.24, 1575.42, 1602, 1603 MHz
Standards: GPS/QZSS (L1/L2), GLONASS (G1/G2/G3), Galileo (E1/E5b), BeiDou (B1/B2b), L-Band Corrections, SBAS, IRNSS
Polarization: RHCP
Impedance: 50 Ω
Peak Gain (dBi): 29.47 @1227.6MHz; 25.88 @1248MHz; 29.34 @1542MHz; 29.96 @1561MHz; 29.81 @1575.42MHz; 26.47 @1603MHz
Axial Ratio (dB): 2.42 @1227.6MHz; 3.82 @1248MHz; 1.89 @1542MHz; 1.99 @1561MHz; 2.21 @1575.42MHz; 2.39 @1603MHz
Group Delay Mean (ns): 31.86 @1227.6MHz; 29.26 @1248MHz; 26.39 @1542MHz; 24.77 @1561MHz; 25.34 @1575.42MHz; 25.82 @1603MHz
Connector Type: SMA(F)
