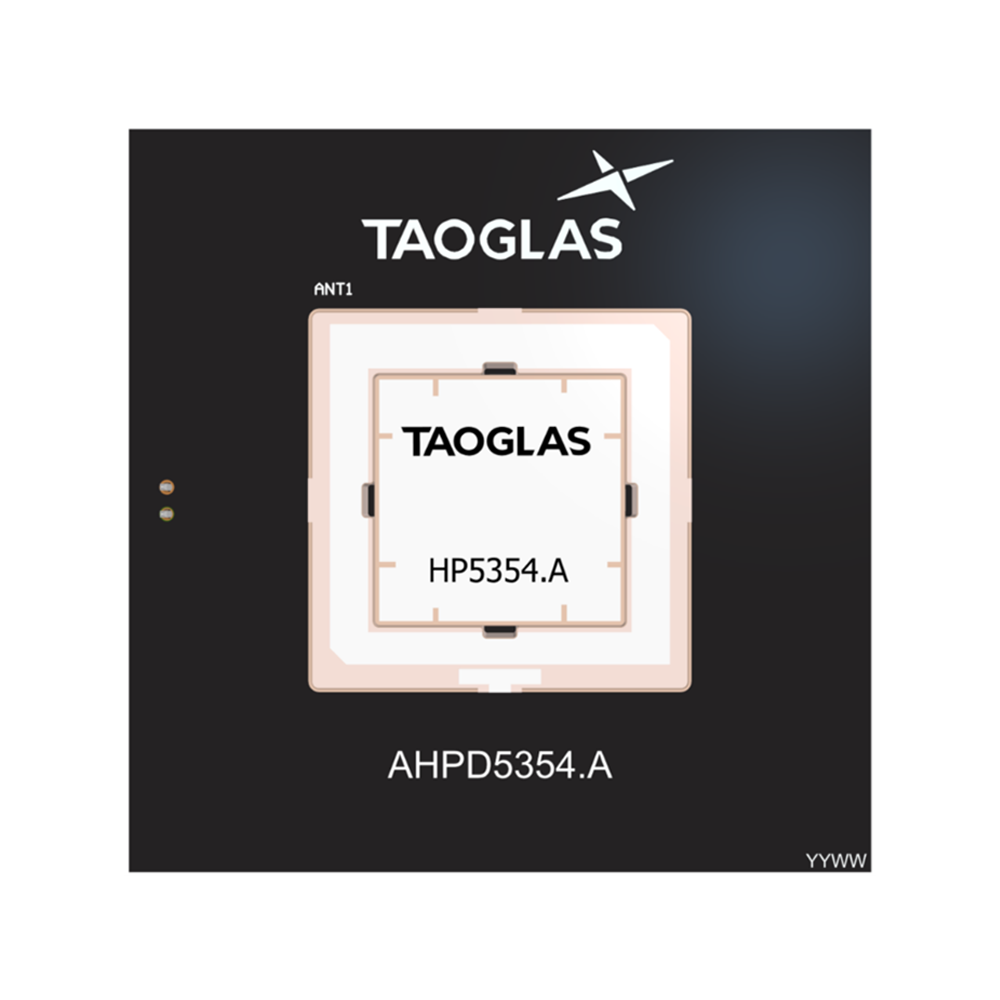

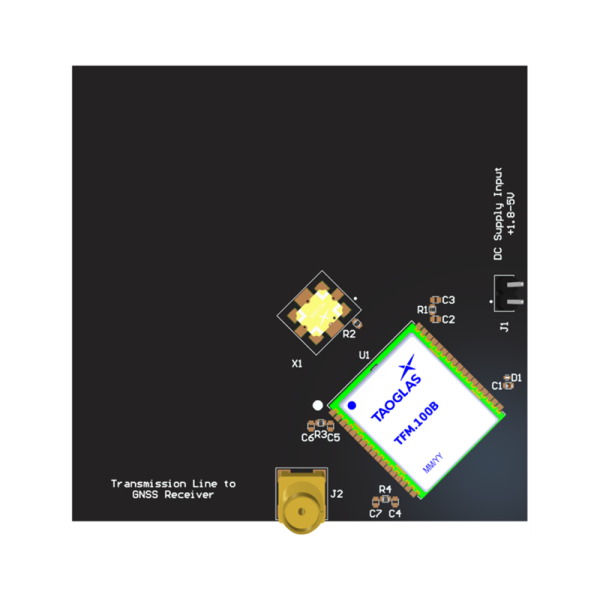

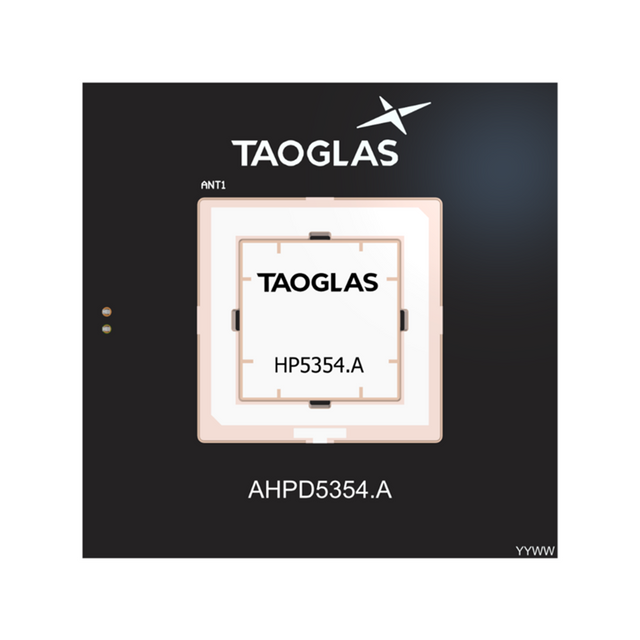

AHPD5354A Antenna Dual-Feed GNSS evaluation board

This GNSS reference design evaluation board is intended to demonstrate an optimum component layout and simplify integration of active front-end electronics with a passive GNSS L1/L5 antenna on a device PCB.

• Optimized active electronics reference design: Supports low-noise, high-rejection signal paths to help protect receiver performance in challenging RF environments.
• Integrated front-end module and hybrid coupler approach: Designed to streamline RF integration and shorten development cycles.
• Multiconstellation support: Covers common GNSS systems across L1/E1/G1/B1 and L5/E5a/B2a bands.

Related components: HP5354.A and TFM.100B.

Technical Specifications

Antenna Technologies: Patch
Location: Internal
Mounting: Solder Mount
Satellite Navigation: GNSS
Type: Combination
Dimensions: Ø70 x 1.6 mm
Materials: Ceramic

GNSS High Band

Frequency: 1559-1610 MHz
Standards: BeiDou (B1)
GPS/QZSS (L1)
GLONASS (G1)
Galileo (E1)

GNSS Low Band

Standards: BeiDou (B2a)
GPS/QZSS (L5)
Galileo (E5a)

Download Datasheet PDF
