Description

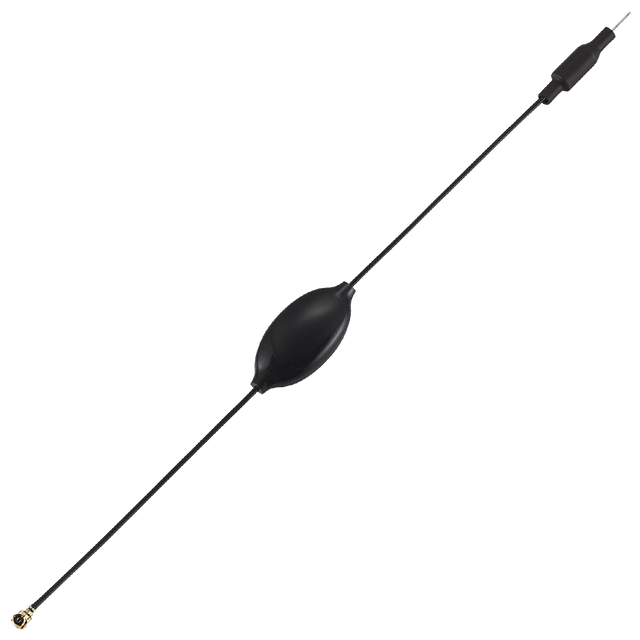

Cipher is a 2.4GHz flexible dipole antenna designed to help protect receiver performance in high-interference environments. It integrates an out-of-band anti-jamming filter to suppress unwanted signals, helping preserve reception range and signal quality.
Its flexible cable format makes it well-suited for embedded installations where the antenna needs to be routed or wrapped around a non-metal sub-structure (for example, along a plastic support leg or wing). A near-isotropic radiation pattern supports more consistent coverage across a wide range of angles.
- Integrated anti-jamming out-of-band filtering to suppress interference
- Flexible embedded form factor for space-constrained installations
- Optimized for 2.4GHz short-range wireless links
Connector & Cable
- Connector Type: I-PEX MHF I (U.FL compatible)
- Cable Type: 1.13mm micro coax cable
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Dipole
Location: Internal
Mounting: Cable Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ISM
Type: Single
Dimensions: 8.8*13*194 mm RoHS Compliant
Weight: 2.3g
2.4GHz Wi-Fi/Bluetooth
Frequency: 2400-2500 MHz
Standards: Wi-Fi/Bluetooth
Polarization: Linear
Impedance: 50 Ω
VSWR: 2
Return Loss (dB): < -10 dB
Efficiency (%): 67.32 %
Peak Gain: 1.74 dBi
Radiation: Omni-directional
Input Power (Max): 10 W
Cable Type: 1.13mm micro coaxial cable
Connector Type: I-PEX MHF I (U.FL compatible)
