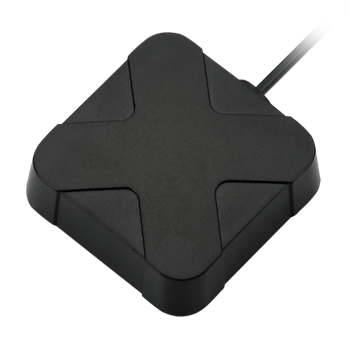

AL100.301111 Antenna External High-Gain GNSS L-Band magnetic mount Magma SMA-M 300cm IP67 for Fleet Management and Telematics, Asset Tracking and Navigation, Precision Agriculture, Autonomous Robotics

Magma AL100 is a high-performance active L-Band external magnetic mount antenna designed to deliver reliable satellite correction/augmentation data where terrestrial connectivity is limited or unavailable. With strong efficiency and signal quality support, it helps preserve performance in demanding deployments.

Key benefits

• Active L-Band SatCom reception to support GNSS correction/augmentation workflows
• Magnetic mount design for fast temporary or semi-permanent placement on suitable metal surfaces
• IP67-rated enclosure to support harsh outdoor and mobile environments
• Low-noise amplification and filtering to help protect receiver performance

Typical applications

• Fleet Management and Telematics
• Asset Tracking and Navigation
• Precision Agriculture
• Autonomous Robotics

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 300cm
• Cable Type: RG-174

Technical Specifications

Operating Temperature: -40°C to +85°C
Location: External
Mounting: Magnetic Mount
Satellite Navigation: GNSS
Type: Single
IP Rating: IP67
Dimensions: 52.4 x 49.8 x 17.1 mm
Weight: 98g

L-Band GNSS (Active)

Frequency: 1525-1559MHz
GNSS Bands: L-Band
Polarization: RHCP
Impedance: 50 Ω
VSWR (max): 2:1
Efficiency (%): 62.7
Peak Gain (dBi): 2.95
Average Gain (dB): -2.03
Axial Ratio at Zenith: 3 typ.
Radiation Pattern: Directional
Gain@1.8V (Typ.) (dB): 28.4
Noise@3.0V (Typ.) (dB): 2
Out Band Rejection@1.8V (Typ.) (dB): >60
Power consumption@1.8V ~5V (mA): 4.9
Connector Type: SMA(M)
Cable Length: 300cm
Cable Type: RG-174
