Description

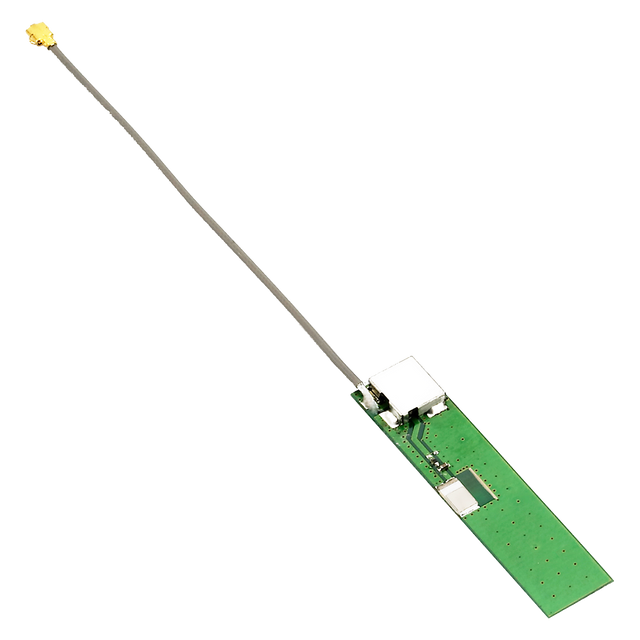

This active GNSS loop antenna is designed for devices where omni-directional reception is important and a narrow-profile antenna is required. The integrated LNA and SAW filtering help improve signal-to-noise performance in electrically noisy device environments.
- Low-profile active loop design: suitable for tight internal packaging constraints
- Improved GNSS reception: integrated amplification and filtering to help mitigate board-level noise
- Flexible internal placement: can be positioned perpendicular to the main board or placed adjacent to the top/bottom of the device main board
- Practical integration options: can be placed in a plastic slot in the device housing, or secured using adhesive foam, hot-melt, or non-conductive screws
Connector & Cable
- Connector Type: I-PEX MHF I (U.FL)
- Cable Length: 9.5cm
- Cable Type: 1.13 Coax
Technical Specifications
Operating Temperature: -40°C to +85°C
Location: Internal
Mounting: Cable Mount
Satellite Navigation: GNSS
Type: Single
Technology: Embedded Antennas, GNSS
GNSS Type: Active GNSS
GNSS Bands: L1
Frequency: 1575.42MHz
Impedance: 50Ω
Polarization: Linear
VSWR: 2
Gain (Max): 17.8
Mechanical Style: PCB
Length: 45mm
Width: 10.1mm
Height: 2.3mm
Weight: 1.35g
Connector Type: I-PEX MHF I
Cable Type: 1.13 Coax
Cable Length: 95mm
RoHS: Yes
