Description

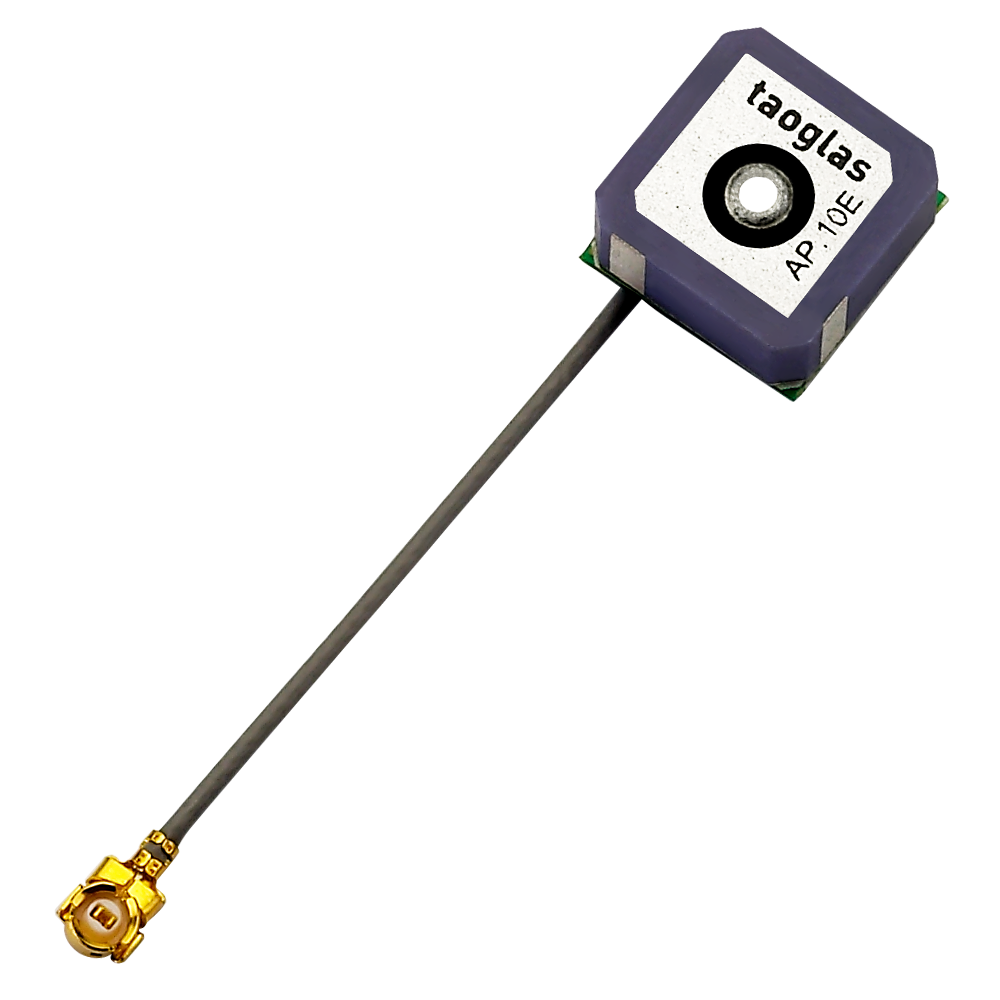

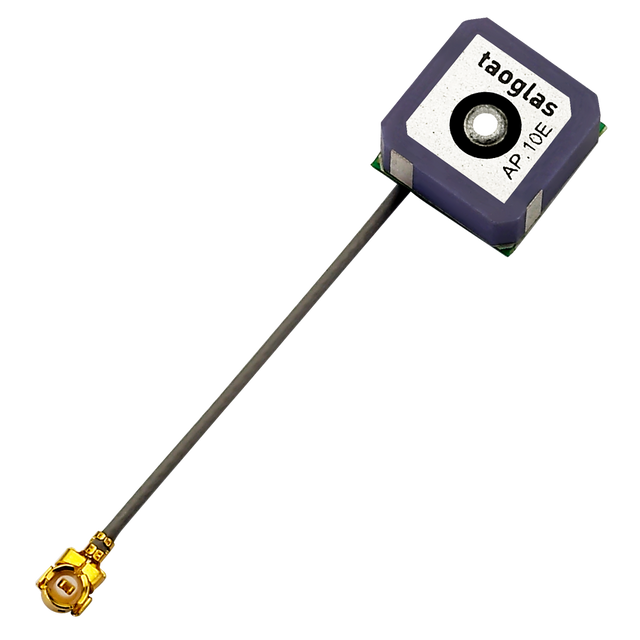

This ultra-compact active GNSS patch antenna module integrates a 1-stage LNA and front-end SAW filtering to support reliable L1 positioning in space-constrained device designs.
It is well-suited to small form factor products where consistent GNSS reception is required, including GPS smartphones, personal location devices, medical devices, telematic devices, and automotive navigation and tracking.

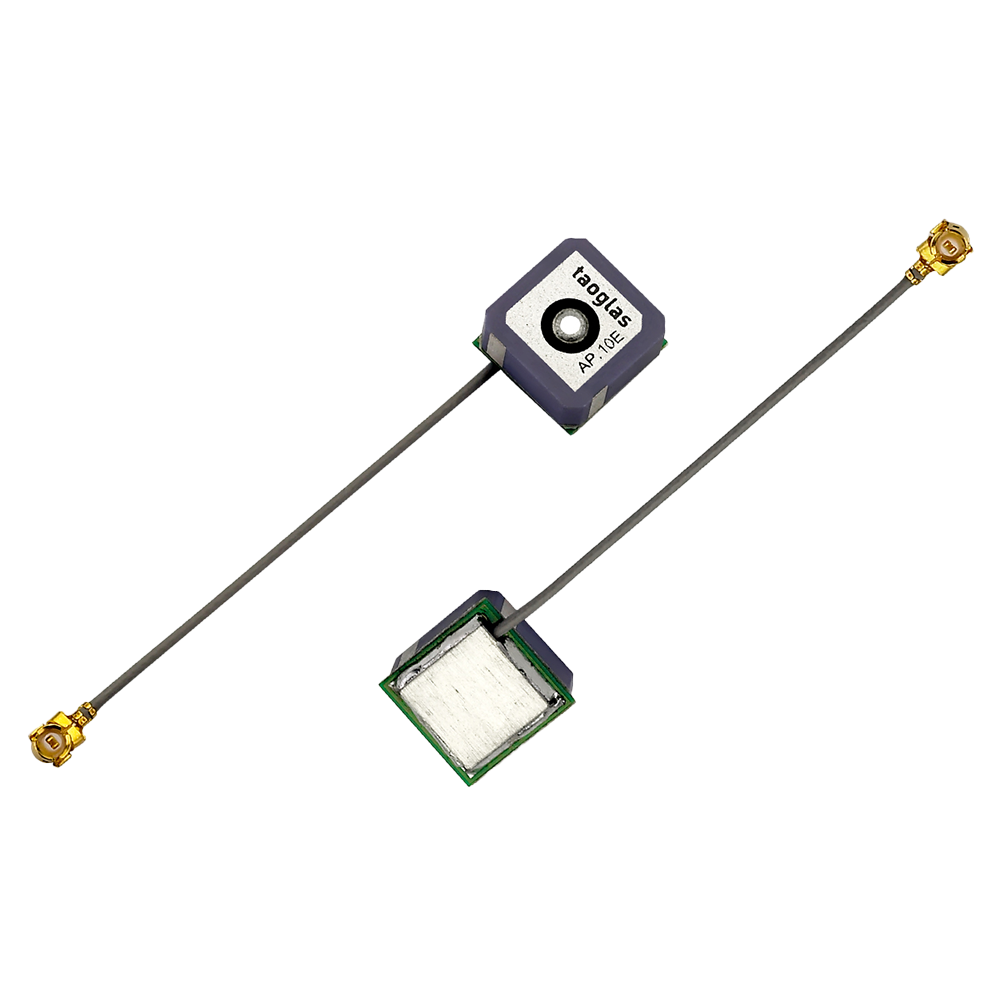

Connector & Cable
- Connector Type: I-PEX MHF I (U.FL)
- Cable Length: 3.9cm
- Cable Type: 0.81 Coax
Technical Specifications
Operating Temperature: -40°C to +85°C
Antenna Technologies: Patch
Location: Internal
Mounting: Cable Mount
Satellite Navigation: GNSS
Type: Single
Frequency: 1575.42MHz
GNSS Type: Active GNSS
GNSS Bands: L1
Polarization: RHCP
Impedance: 50Ω
VSWR: 2
Gain (Max): 15
Dimensions: 10*10*6.2mm
Weight: 20g
Connector Type: I-PEX MHF I
Cable Length: 3.9cm
Cable Type: 0.81 Coax
Termination Style: Pin
