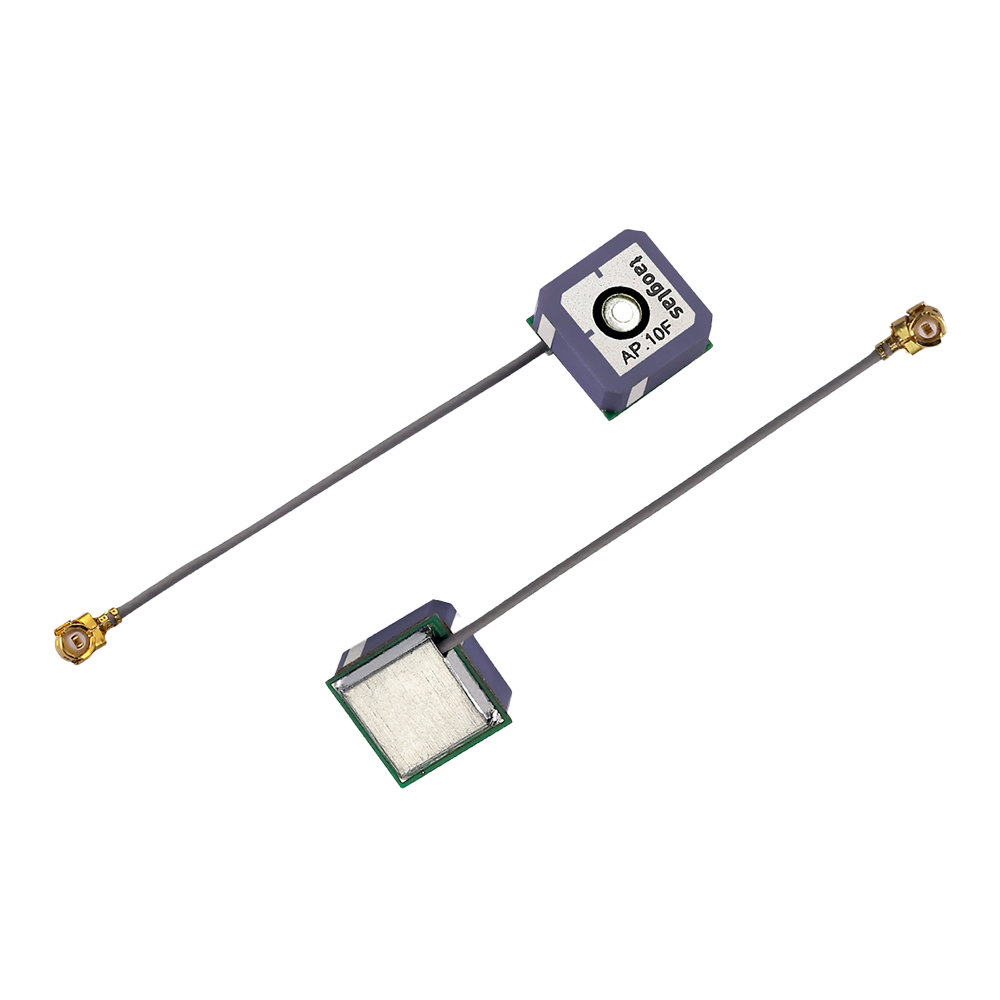

AP.10F.07.0039B Antenna GNSS active patch I-PEX MHF I (U.FL) 3.9cm

This compact 2-stage active GNSS patch antenna module is designed for high-sensitivity positioning in space-constrained devices. It integrates a 25 dB LNA and a front-end SAW filter to help reduce interference risk when operating near cellular transmitters.

• High-performance active GNSS patch: optimized for small device integration
• Front-end SAW filter: helps mitigate out-of-band interference
• Wide input voltage range: supports 1.8V to 5.5V systems
• Use cases: GPS Smartphones, Personal Location, Medical devices, Telematic devices, Automotive navigation and tracking

Connector & Cable

• Connector Type: I-PEX MHF I (U.FL)
• Cable Length: 3.9cm
• Cable Type: 0.81 Coax

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: Patch
Location: Internal
Mounting: Cable Mount
Satellite Navigation: GNSS
Type: Single
Frequency: 1575.42MHz
GNSS Type: Active GNSS
GNSS Bands: L1
Polarization: RHCP
Impedance: 50Ω
VSWR: 2:1
Gain (Max): 25
Dimensions: 10*10*6.2mm
Weight: 20g
Termination Style: Pin
Connector Type: I-PEX MHF I
Cable Type: 0.81 Coax
Cable Length: 3.9cm

Download Datasheet PDF
