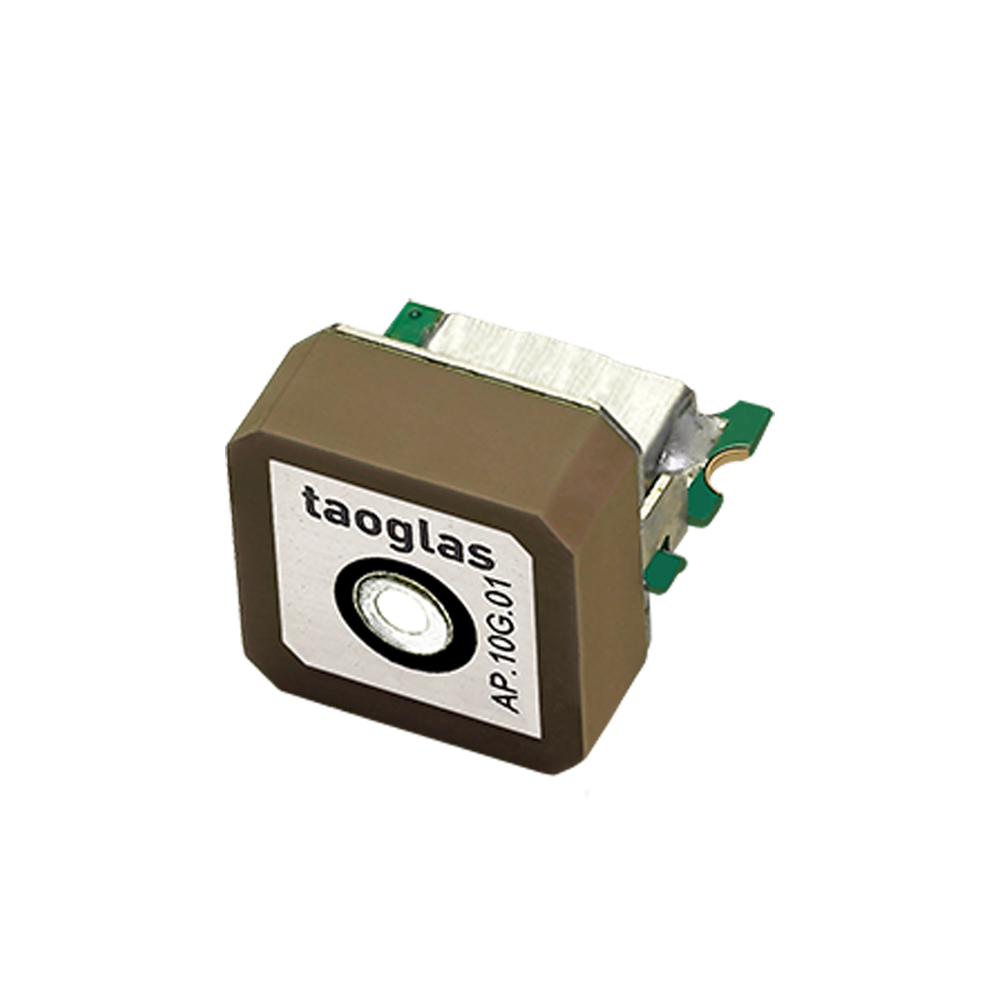

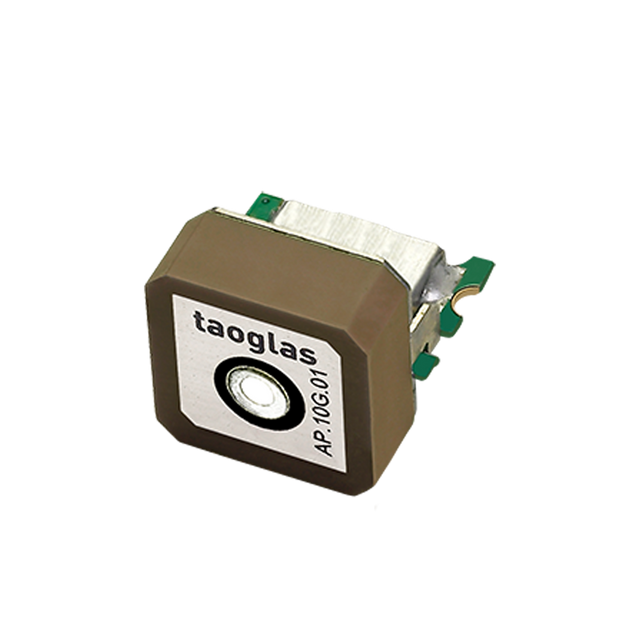

AP.10G.01 Antenna GNSS SMD/SMT active patch for Medical Devices, Navigation, Sports Tracking, Automotive navigation and tracking

This compact active GNSS patch antenna module is designed for embedded positioning products where board space is limited. It integrates a one-stage LNA and front-end SAW filtering to support reliable GPS/Galileo reception in small devices.

• Embedded GNSS performance: tuned for GPS/Galileo operation with active amplification
• Integration-friendly design: intended for direct PCB mounting using standard SMD/SMT assembly processes
• Use cases: suited to mobile and compact devices such as medical devices, navigation products, sports tracking, and automotive navigation/tracking systems

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: Patch
Location: Internal
Mounting: SMD/SMT Mount
Satellite Navigation: GNSS
Type: Single
GNSS Type: Active GNSS
GNSS Bands: L1
Frequency: 1575.42MHz
Impedance: 50Ω
VSWR: 2.0:1
Polarity: RHCP
Gain (Max): 18
Mechanical Style: Patch
Termination Style: SMD/SMT
Length (mm): 10
Width (mm): 10
Height (mm): 11.5
Weight (g): 10
