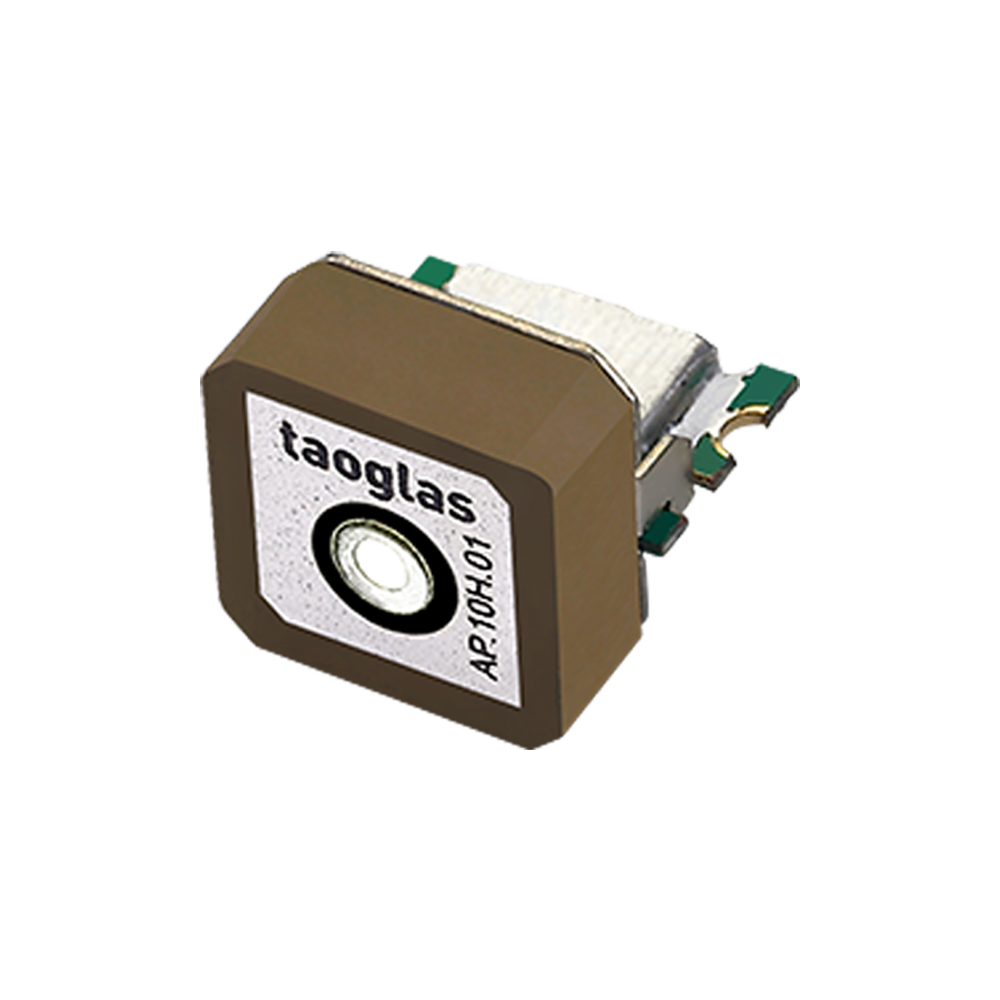

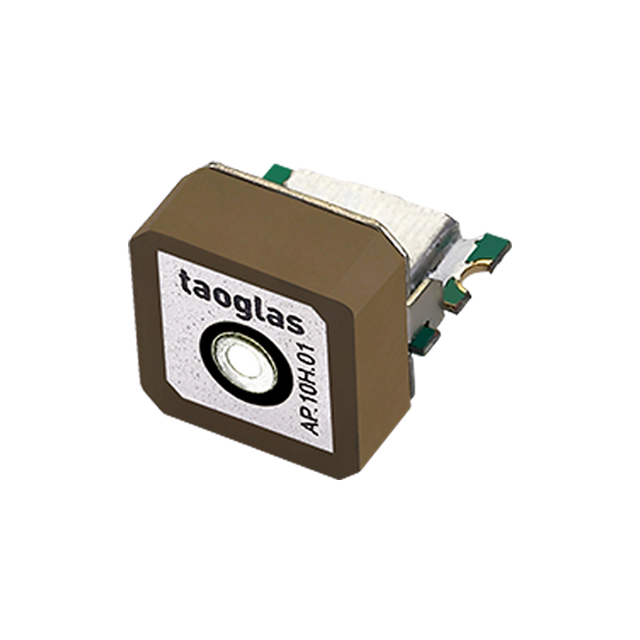

AP.10H.01 Antenna GNSS 2-stage active SMD/SMT patch

The AP.10H.01 is an ultra-compact, high-performance embedded GNSS active patch antenna module designed for space-constrained devices requiring reliable GPS/Galileo reception.

• Two-stage active design: Integrated LNA for improved reception in challenging environments
• Front-end SAW filter: Helps suppress out-of-band interference for cleaner GNSS signals
• SMT integration: Designed for robust PCB assembly and repeatable performance in mass production
• Ideal for small devices: Well-suited to compact product enclosures and mobile designs

Typical use cases include: GPS/Galileo smartphones, personal location devices, medical devices, telematic devices, and automotive navigation and tracking.

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: Patch
Location: Internal
Mounting: SMD/SMT Mount
Satellite Navigation: GNSS
Type: Single
GNSS Type: Active GNSS
GNSS Bands: L1
Frequency: 1575.42 ± 1.023MHz
Polarization: RHCP
Impedance: 50Ω
VSWR: 2
Gain (Max): 25
Dimensions: 10mm x 10mm x 4mm (add 7.3mm depth for vertical PCB)
Weight: 3g
Connection: SMT via solder pads
