Description

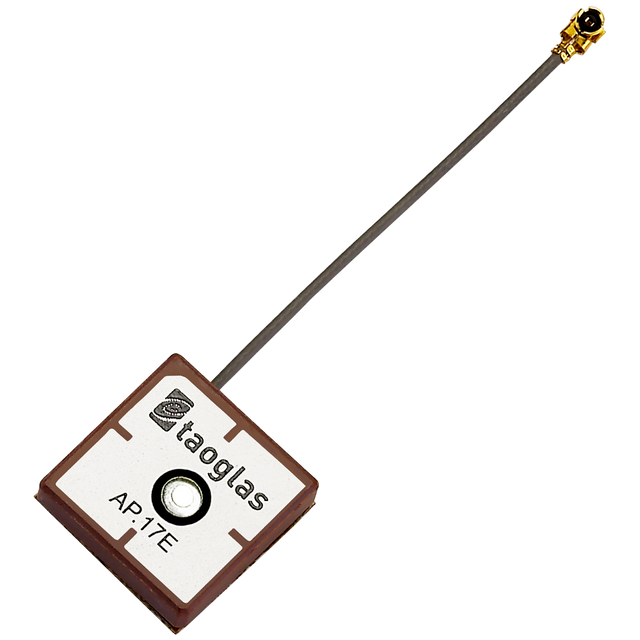

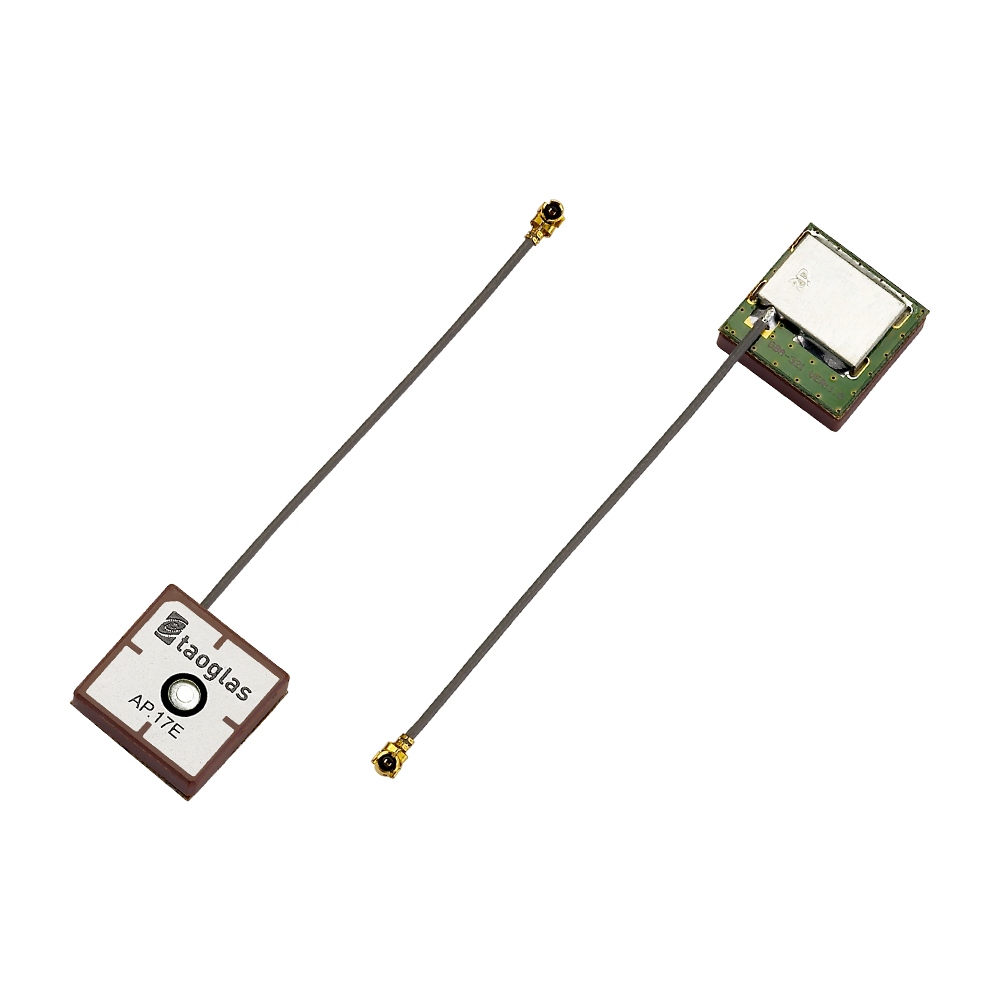

This 1-stage active GNSS patch antenna module is designed for embedded (inside device) integration with GPS/Galileo receiver modules. It combines a low-profile ceramic patch with an integrated LNA and a front-end SAW filter to help reduce out-of-band interference risk when a cellular transmitter is nearby.
- Integrated LNA + SAW filter: Supports improved reception while helping protect against nearby transmitter interference.
- Wide supply voltage support: Designed to operate across a broad input voltage range for flexible device integration.
- Embedded-ready module: Includes an integrated ground-plane for simplified integration.
Typical use cases: Navigation systems, asset tracking, performance trackers/wearables.
Connector & Cable
- Connector Type: I-PEX MHF I (U.FL compatible)
- Cable Length: 6.4cm
- Cable Type: 1.13 Coax
Technical Specifications
Operating Temperature: -40°C to +85°C
Antenna Technologies: Patch
Location: Internal
Mounting: Cable Mount
Satellite Navigation: GNSS
Type: Single
Dimensions: 17mm*17mm*6.1mm
Weight: 24g
GNSS (Active)
Frequency: 1575.42MHz
GNSS Bands: L1
Standards: GPS/Galileo
Polarization: RHCP
Impedance: 50 Ω
VSWR: 2
Gain (Max): 16
Connector Type: I-PEX MHF I
Cable Length: 6.4cm
Cable Type: 1.13 Coax
