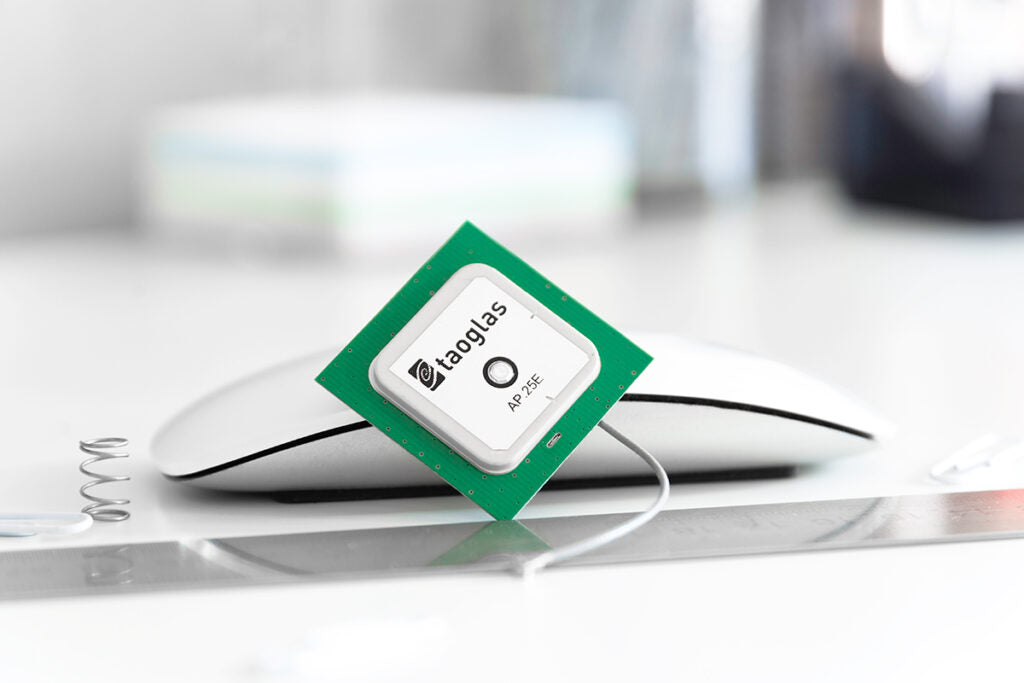

AP.25E.07.0054A Antenna Low-Profile GNSS embedded patch I-PEX MHF I (U.FL) 5.4cm for RTK Receivers

This low-profile active GNSS patch antenna module is designed for embedded (inside-device) integration where high sensitivity is needed and where nearby cellular transmitters can create interference. It integrates a ceramic patch element with a one-stage LNA and a front-end SAW filter to help reduce out-of-band interference and improve receiver performance in compact devices.

• Designed for embedded GNSS integration: Suitable for compact devices and RTK-capable receivers
• Improved interference resilience: Front-end SAW filtering helps protect the LNA in challenging RF environments

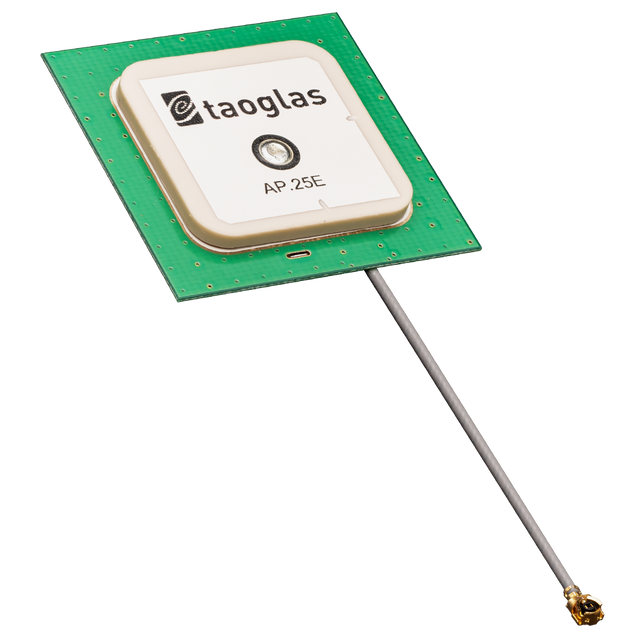

• Compact patch module: Low-profile ceramic patch construction on a ground plane

Connector & Cable

• Connector Type: I-PEX MHF I (U.FL)
• Cable Length: 5.4cm
• Cable Type: 1.13 Coax

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: Patch
Location: Internal
Mounting: Cable Mount
Satellite Navigation: GNSS
Type: Single
Dimensions: 35*35*4.5mm
Weight: 25g

GNSS (Active)

Frequency: 1575.42 ± 1.023MHz
GNSS Bands: L1
Impedance: 50Ω
VSWR: <2.1
Polarization: RHCP
Gain (Max): 15
Connector Type: I-PEX MHF I (U.FL)
Cable Length: 5.4cm
Cable Type: 1.13 Coax
