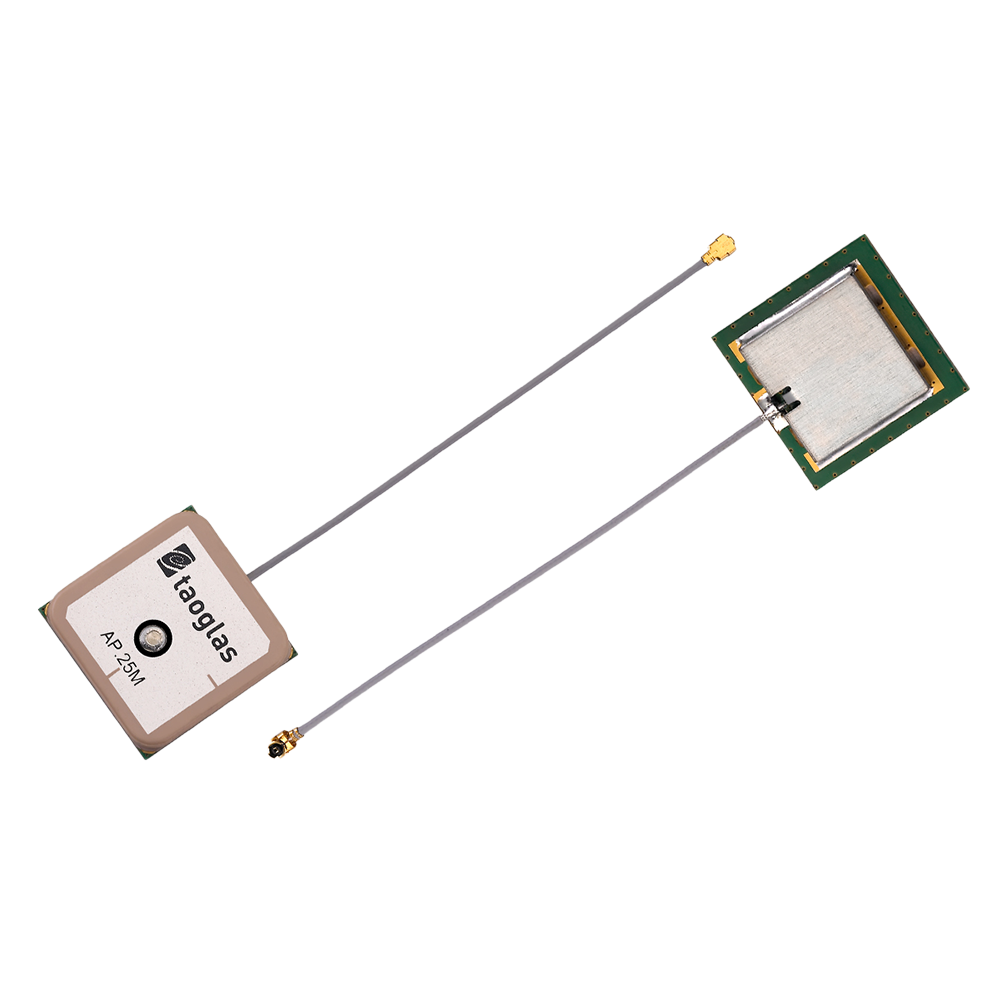

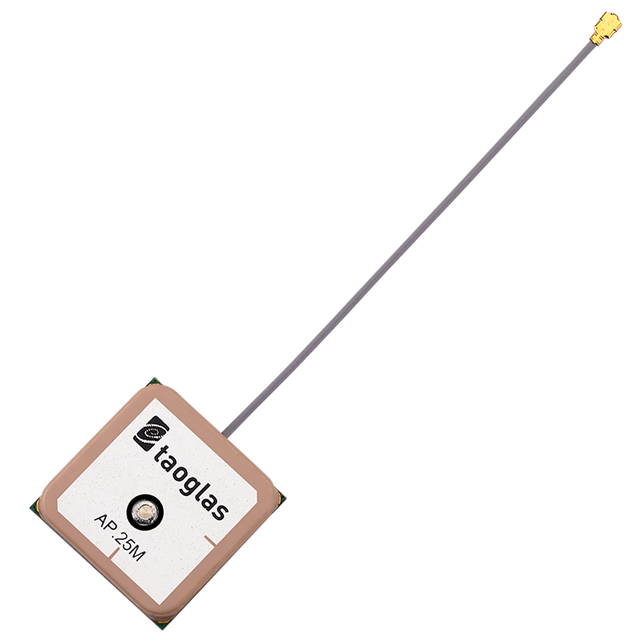

AP.25F.07.0078A Antenna GNSS active patch U.FL 7.8cm

This compact two-stage active GNSS patch antenna module is designed for embedded (inside-device) integration with GPS/Galileo receiver modules, especially in designs where a nearby cellular transmitter could cause interference.

• High sensitivity design: Two-stage LNA architecture with a front-end SAW filter to improve rejection of out-of-band interference.
• Embedded-ready form factor: Low-profile patch module intended for space-constrained devices.
• System-friendly power: Wide input voltage support for flexible integration.

Connector & Cable

• Connector Type: I-PEX MHF I (U.FL)
• Cable Length: 7.8cm
• Cable Type: 1.13 Coax

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: Patch
Location: Internal
Mounting: Cable Mount
Satellite Navigation: GNSS
Type: Single
Dimensions: 25*25*8mm
Weight: 29g

GNSS (Active)

Frequency: 1575.42 ± 1.023MHz
Standards: GPS/GALILEO
GNSS Bands: L1
Impedance: 50Ω
Polarization: RHCP
VSWR: 2:1
Gain (Max): 30
Connector Type: I-PEX MHF I (U.FL)
Cable Length: 7.8cm
Cable Type: 1.13 Coax
