Description

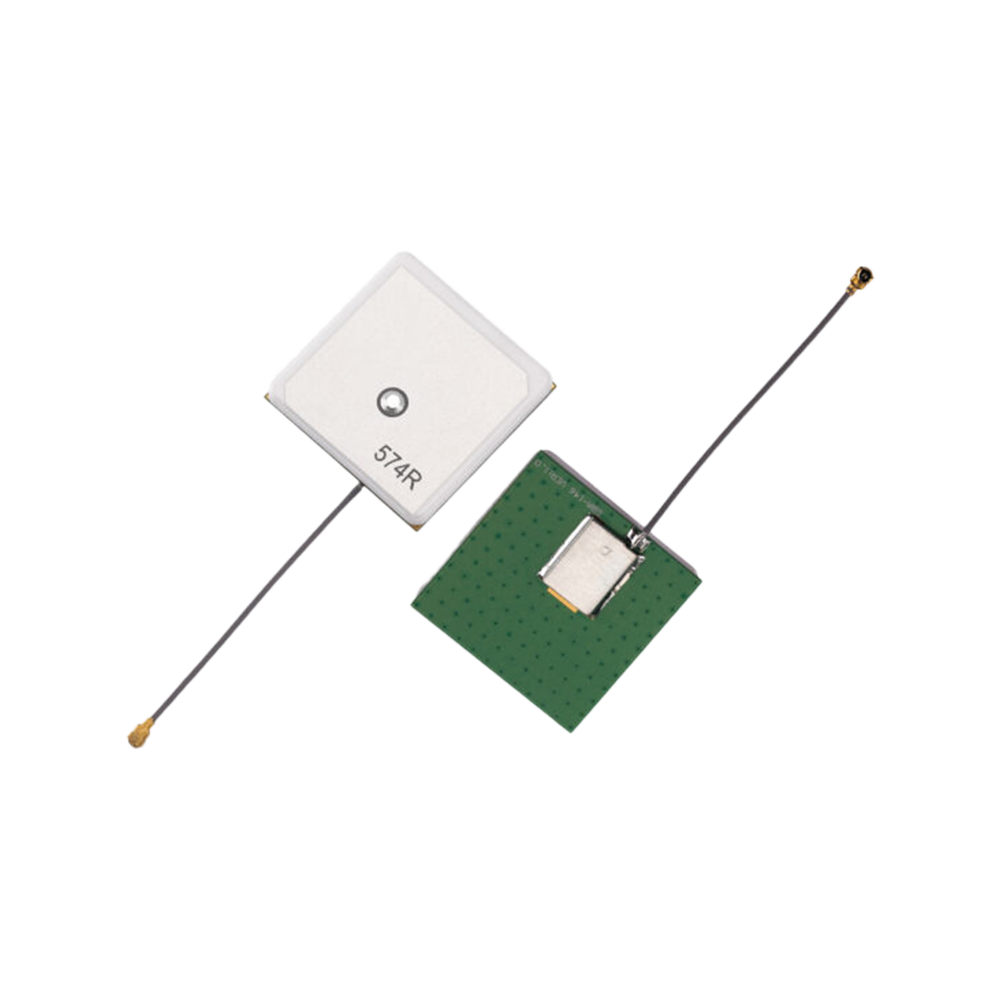

Active GNSS patch antenna module designed for embedded (inside-device) integration with GNSS/GPS receiver modules. It combines a low-profile ceramic patch with a single-stage LNA and an integrated back-end SAW filter to help improve sensitivity and reduce out-of-band interference.
- Embedded integration for compact devices requiring reliable GNSS reception
- Improved performance at low elevations with integrated ground plane approach
- Single-stage LNA design to enhance received signal levels
- Back-end SAW filter to improve rejection of unwanted signals
Connector & Cable
- Connector Type: I-PEX MHF I (U.FL)
- Cable Length: 5.4cm
- Cable Type: 1.13 Coax
Technical Specifications
Operating Temperature: -40°C to +85°C
Antenna Technologies: Patch
Location: Internal
Mounting: Cable Mount
Satellite Navigation: GNSS
Type: Single
Frequency: 1575.42 ± 1.023MHz
