Description

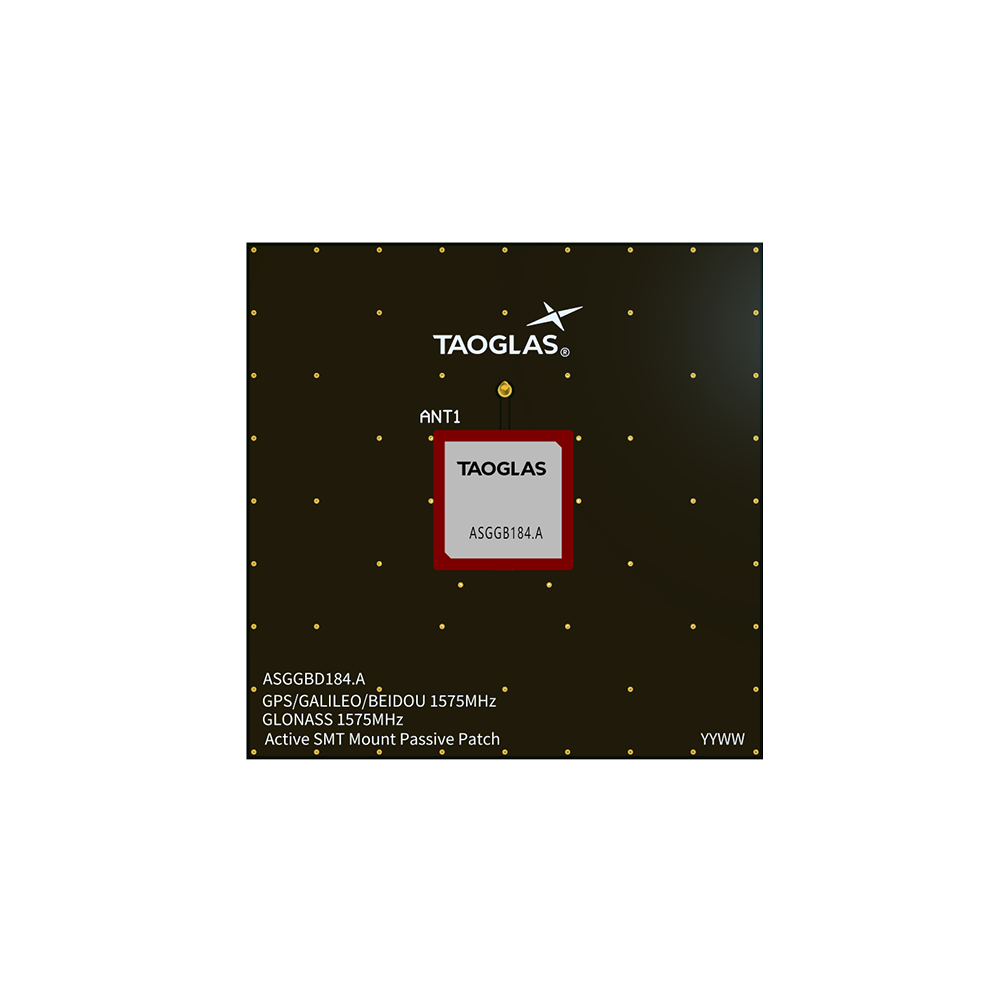

This evaluation board is designed for quick evaluation and integration of an active GNSS 18mm surface-mount patch antenna into your device PCB workflow. The embedded active circuitry supports reliable GNSS reception while eliminating the need for a separate cable and connector, helping streamline assembly using standard SMD processes.
- Supported GNSS bands: GPS L1, GLONASS G1, Galileo E1, BeiDou B1
- Designed for PCB integration: intended to be mounted directly onto a device PCB
- Noise mitigation: includes a two-stage LNA and a front-end SAW filter to reduce out-of-band interference
Typical applications include: Navigation, Commercial Transportation, Asset Tracking.
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Patch
Location: Internal
Mounting: SMD/SMT Mount
Satellite Navigation: GNSS
Type: Single
Evaluation Board Dimensions: 70*70mm
Width (mm): 70
Length (mm): 70
Height (mm): 1
Materials: Ceramic
For Use With/Related Products: ASGGB184.A
GNSS (Active)
Frequency: 1561-1602 MHz
Standards: GPS L1, GLONASS G1, Galileo E1, BeiDou B1
Polarization: RHCP
Impedance: 50Ω
VSWR (max.): 2:1
Gain@3V (dBi): 30±5 dBi
