Description

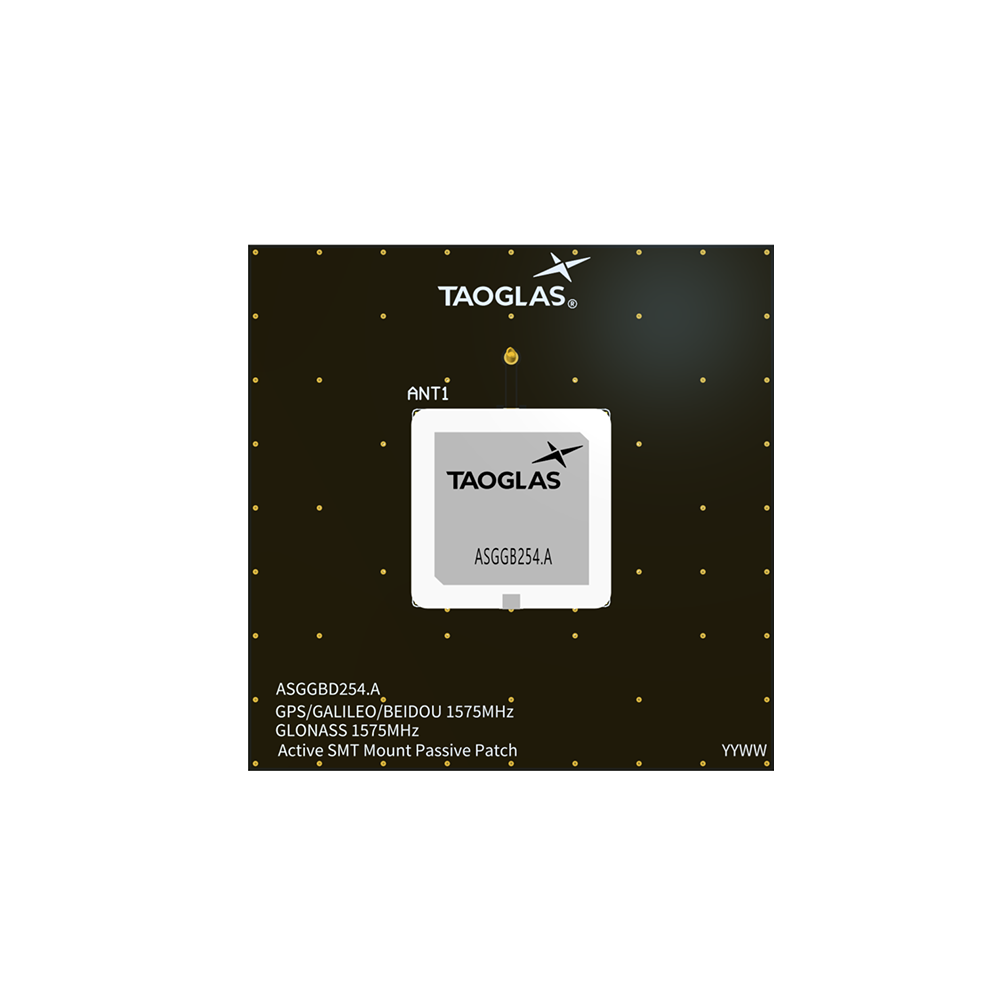

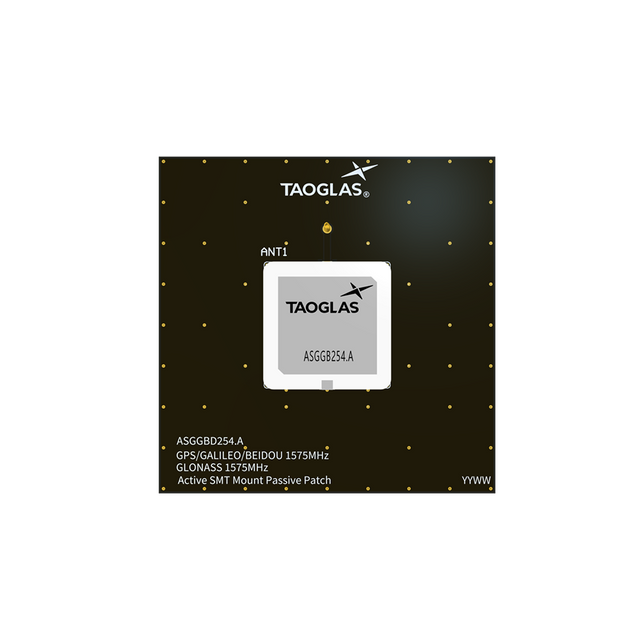

This evaluation board is designed for use with the ASGGB254.A active GNSS surface-mount patch antenna, supporting GPS L1, GLONASS G1, Galileo E1, and BeiDou B1.
The active circuitry is embedded within the patch structure to help reduce integration effort and support a streamlined assembly process for device prototyping and testing.
- GNSS coverage: GPS / GLONASS / Galileo / BeiDou (L1/E1/B1/G1)
- Active design: includes integrated LNA and front-end filtering to help reduce out-of-band noise
- Surface-mount integration: intended for direct PCB-based evaluation and development
Typical applications include:
- Navigation
- Commercial Transportation
- Asset Tracking
If space is limited, the ASGGB184.A is also available. For custom tuning services, contact your regional customer support team.
Technical Specifications
Operating Temperature: -40 C to 85 C
Location: Internal
Mounting: SMD/SMT Mount
Satellite Navigation: GNSS
Type: Single
Frequency: 1561-1602 MHz
Materials: Ceramic
Dimensions: 70*70mm
