Description

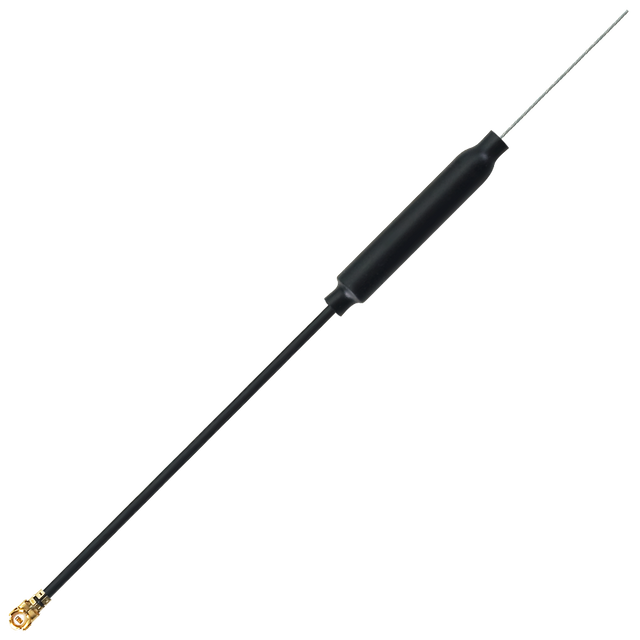

CBD01.07.0100C is a lightweight, thin cable dipole antenna designed for reliable Wi‑Fi/ISM connectivity in compact devices. Its flexible form factor supports easy integration into narrow spaces while maintaining an omnidirectional radiation pattern for consistent coverage.
- Designed for compact integration: cable exits from the bottom to minimize required device volume.
- Reliable link performance: optimized for stable, omnidirectional coverage.
- Ideal for aerial platforms: well-suited to UAV and FPV (First-Person View) use cases.
Connector & Cable
- Connector Type: I-PEX MHF I (U.FL) Connector
- Cable Length: 10cm
- Cable Type: Ø1.37mm coaxial cable
Technical Specifications
Operating Temperature: -40°C to +85°C
Antenna Technologies: Dipole
Location: Internal
Mounting: Cable Mount
Short-Range Wireless Standards: Wi-Fi, ISM
Type: Single
Dimensions: 57mm (Ma x imum diameter:4.7mm)
Weight: 1.47g
Wi-Fi / ISM (2.4GHz)
Frequency: 2400-2500MHz
Polarization: Linear
Impedance: 50Ω
Max VSWR: 2:1
Max Return Loss (dB): <-10
Peak Gain (dBi): 3.24
Efficiency (%): 71.72%
Average Gain (dBi): -1.45
Radiation Properties: Omnidirectional
Max Input Power: 2 W
Connector Type: I-PEX MHF I (U.FL)
Cable Length: 10cm
Cable Type: Ø1.37mm coaxial cable
