Description

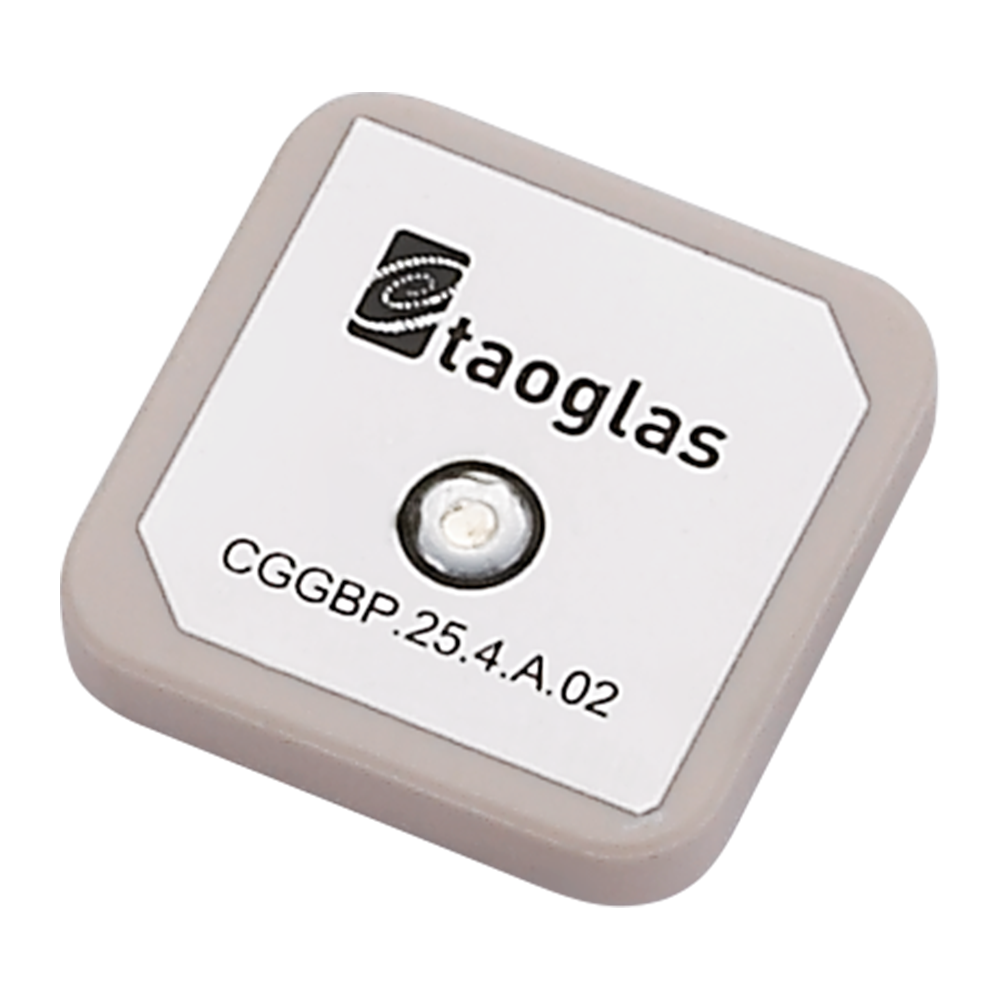

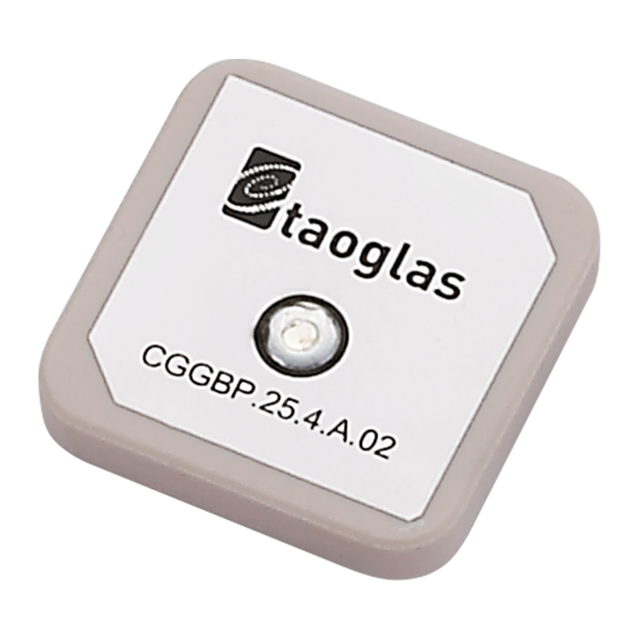

Embedded GNSS patch antenna designed for reliable positioning across the main global satellite constellations (GPS, GLONASS, Galileo, BeiDou). Its wide operating band helps deliver stable radiation patterns and improved signal reception for faster acquisition and improved performance in challenging environments.
- Multi-constellation GNSS support: GPS/GLONASS/Galileo/BeiDou
- Improved reception and stability: supports better urban performance and quicker time-to-first-fix versus smaller patches
- Embedded integration: ceramic patch format intended for device integration
- Mounting method: pin plus double-sided adhesive mounting
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Patch
Location: Internal
Mounting: Pin/Adhesive Mount
Satellite Navigation: GNSS
Type: Single
GNSS Type: Passive GNSS
GNSS Bands: L1
Frequency: 1561MHz - 1602MHz
Polarization: RHCP
Impedance: 50Ω
VSWR: 2:1
Gain (Max): 5.48
Length: 25.1 mm
Width: 25.1 mm
Height: 4 mm
Weight: 9 g
