Description

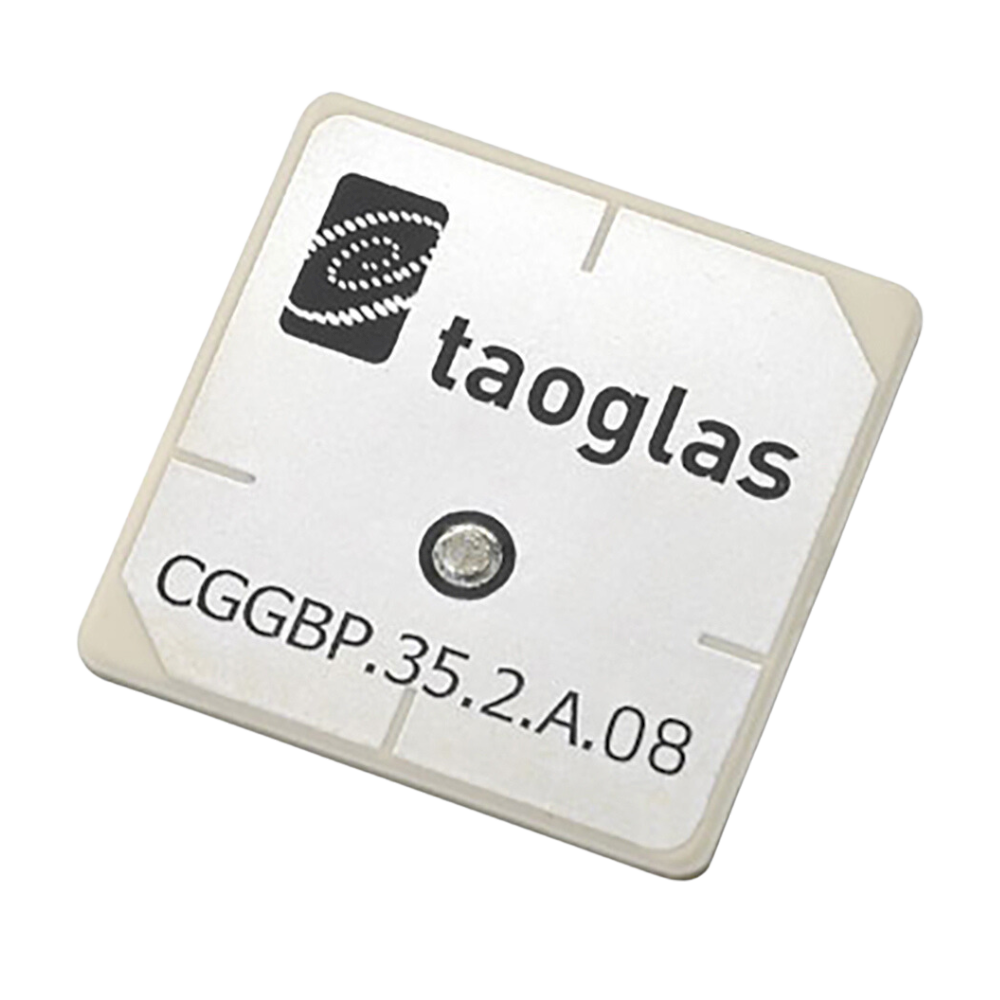

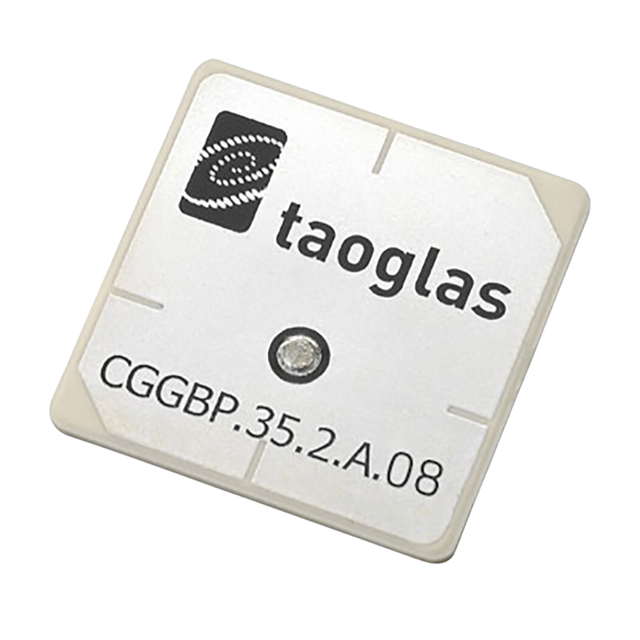

This low-profile embedded GNSS patch antenna is designed to deliver stable performance and reliable satellite signal reception in space-constrained devices. It supports major GNSS constellations to improve location accuracy, maintain lock in challenging environments, and reduce time-to-first-fix.
- Low-profile embedded patch design for compact device integration
- Stable gain and strong radiation pattern coverage across common GNSS use cases
- Improves positioning performance versus smaller patch alternatives (more satellites acquired, improved reliability)
Typical use cases include: Wearables, Navigation, Transportation, RTK, Defense, Marine, Agriculture
Installation / Environmental
The patch is mounted via pin and double-sided adhesive.
Do not cover the antenna with a metal enclosure.
This antenna has one pin, which is used for the RF feed. A minimum 70x70mm ground plane (PCB) is recommended to ensure optimal performance.
Alternative pin lengths may be available, subject to NRE and MOQ.
Technical Specifications
Operating Temperature: -40°C to +85°C
Antenna Technologies: Patch
Location: Internal
Mounting: Pin/Adhesive Mount
Satellite Navigation: GNSS
Type: Single
Frequency: 1559MHz - 1610MHz
GNSS Type: Passive GNSS
GNSS Bands: L1
Mechanical Style: Patch
Polarization: RHCP
Impedance: 50Ω
VSWR: 2:1
Gain (Max): 4.87
Dimensions: Ø35.5 x 2 mm
Weight: 8.6g
