Description

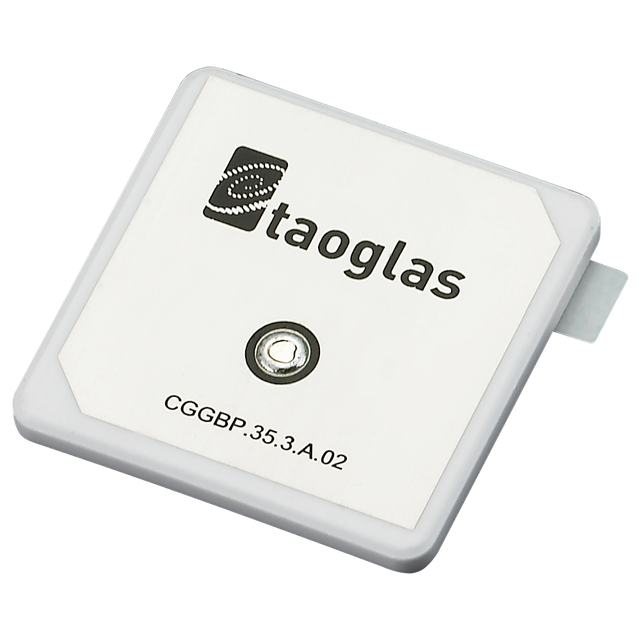

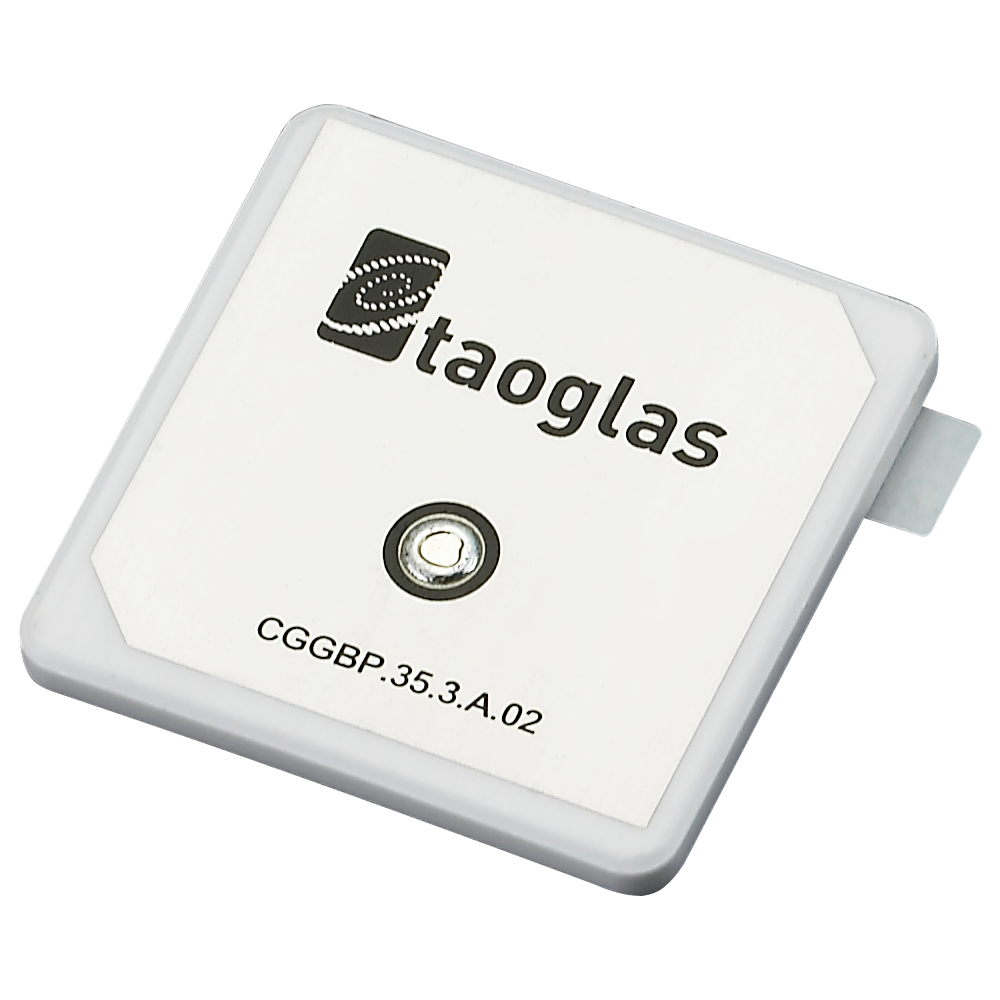

This low-profile ceramic patch antenna provides stable GNSS performance with broad coverage across major satellite constellations, helping improve positioning accuracy, reliability in challenging environments, and time-to-first-fix.
- Wide GNSS constellation support: designed for GPS, GLONASS, Galileo, BeiDou, and QZSS reception.
- Reliable performance: built for stable gain and radiation pattern behavior across supported GNSS bands.
- Easy device integration: designed for pin and double-sided adhesive mounting.
- Integration note: the antenna should not be covered by a metal enclosure; tuning/optimization to different ground planes and enclosures is possible if required.
Technical Specifications
Operating Temperature: -40 C to 85 C
Antenna Technologies: Patch
Location: Internal
Mounting: Pin/Adhesive Mount, SMD/SMT Mount
Satellite Navigation: GNSS
Type: Single
Dimensions: 35*35*3mm
Weight: 13.5g
GNSS (Passive)
Frequency: 1561MHz - 1602MHz
GNSS Bands: L1
Polarization: RHCP
Impedance: 509
VSWR: 2.5
Gain (Max): 4.05
