Description

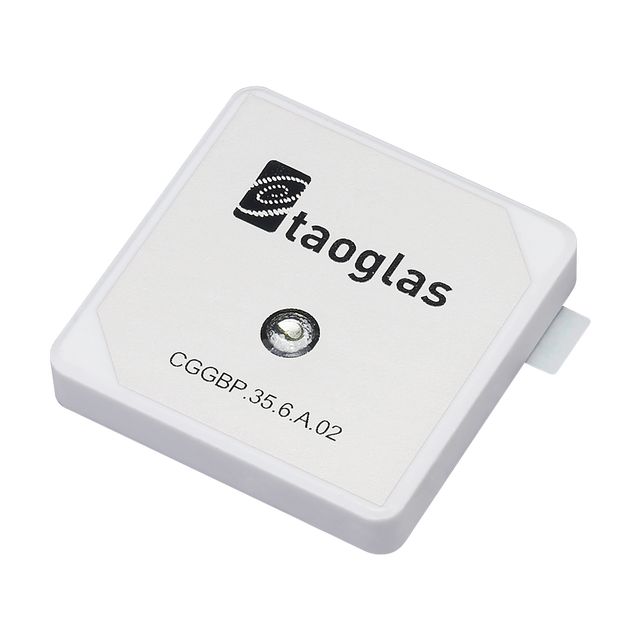

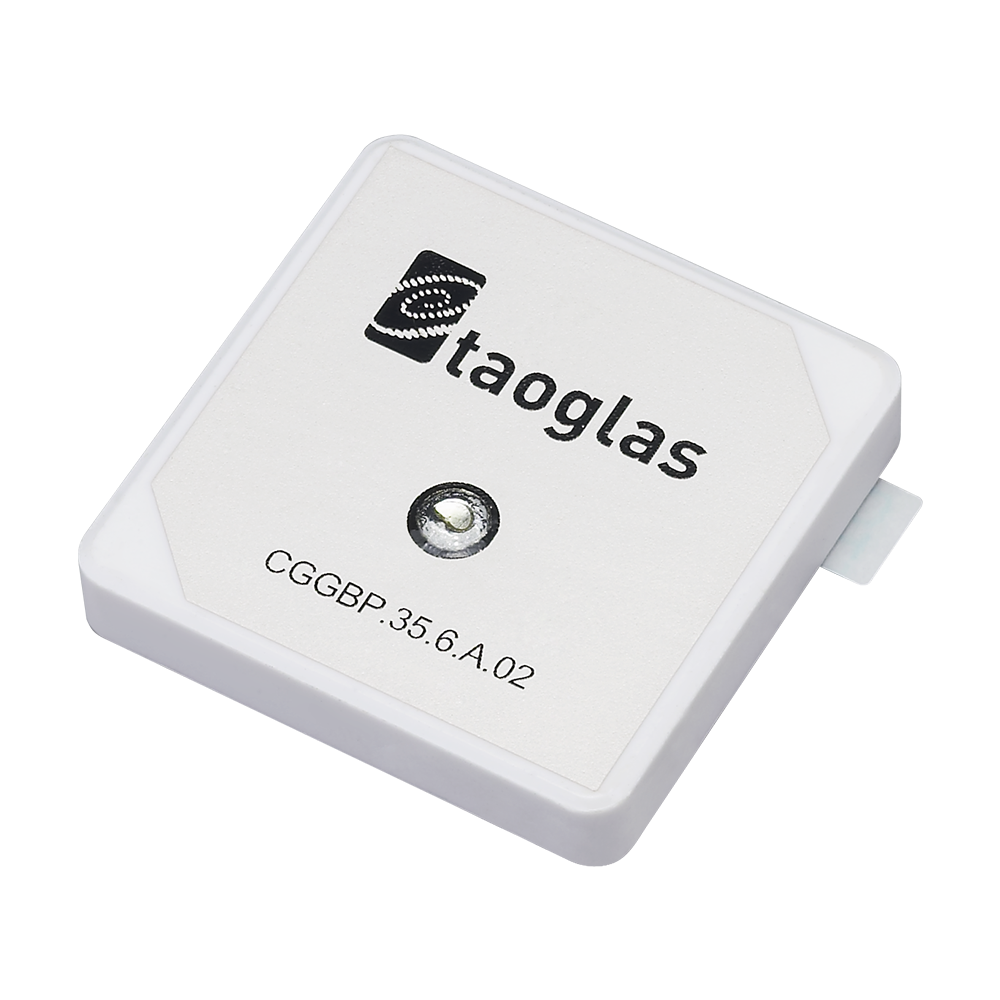

This compact embedded GNSS patch antenna is designed to provide stable circularly polarized performance for reliable satellite reception in space-constrained devices. Its wide operating coverage supports multi-constellation positioning to help improve location accuracy, signal reliability in challenging environments, and time to first fix.
- Embedded patch design: Ideal for integration into devices requiring dependable GNSS reception.
- Circular polarization (RHCP): Helps maintain robust performance with satellite signals.
- Integration-friendly mounting: Designed for pin mounting with adhesive tape to simplify device assembly.
Typical use cases include: Agriculture, Asset tracking systems, and Navigation.
Technical Specifications
Operating Temperature: -40 C to 85 C
Antenna Technologies: Patch
Location: Internal
Mounting: Pin/Adhesive Mount
Satellite Navigation: GNSS
Type: Single
GNSS Type: Passive GNSS
GNSS Bands: L1
Frequency: 1561MHz - 1602MHz
Impedance: 50
0
9
Polarity: RHCP
VSWR: 2:1
Gain (Max): 5.24
Dimensions: Ø35 x 6.5 mm
Weight: 29g
RoHS: Yes
