Description

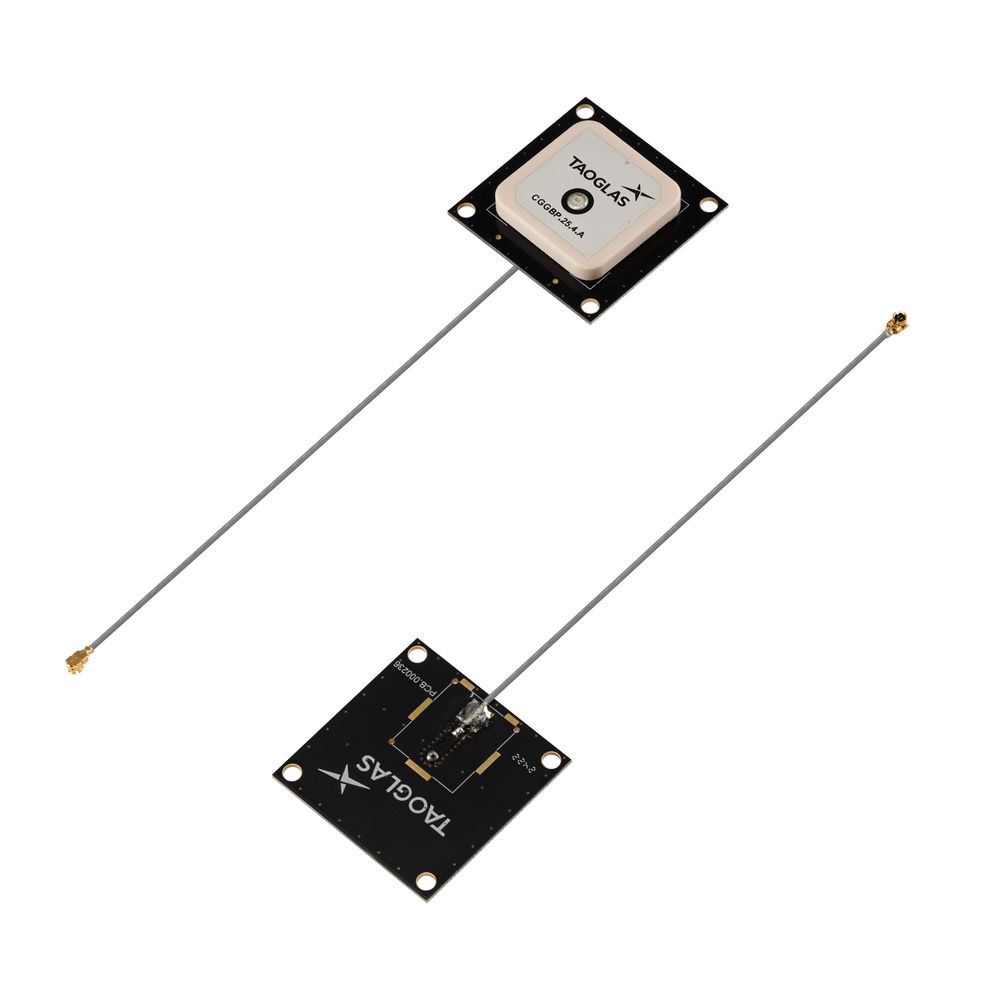

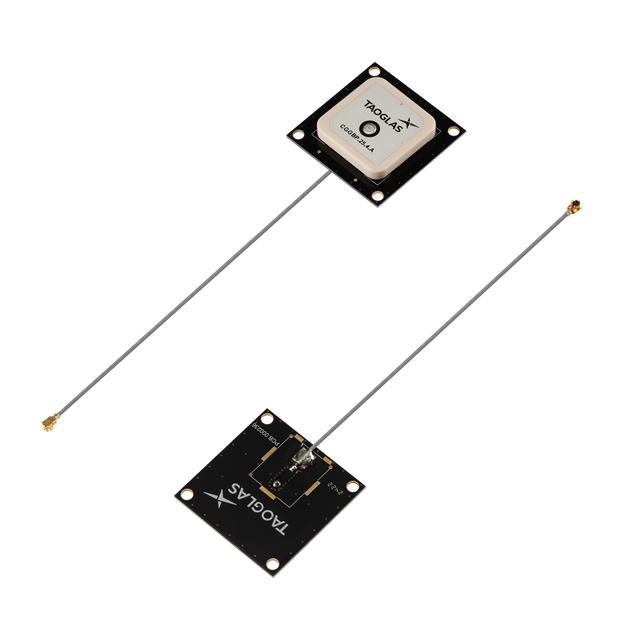

CGGBP254.07.0100A is a compact, high-performance ceramic GNSS patch antenna supplied on a PCB to simplify mechanical integration into embedded devices. It supports multiple satellite constellations to help deliver reliable positioning while keeping size and power requirements low.
It is well-suited to space-constrained designs that require dependable GNSS reception across common navigation systems.
- Multi-constellation GNSS support for robust positioning
- Compact patch form factor for embedded integration
- Designed for reliable location performance in small devices
Typical applications include:
- Wearables
- Transportation
- Precision Agriculture
- Navigation
- Robotics
- Autonomous Vehicles
Connector & Cable
- Connector Type: I-PEX MHF I
- Cable Length: 10cm
- Cable Type: 1.13 Coax
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Patch
Location: Internal
Mounting: Screw Mount
Satellite Navigation: GNSS
Type: Single
Dimensions: Ø25 x 4 mm
Weight: 15g
GNSS (Passive)
Frequency: 1561MHz - 1603MHz
Standards: GPS(L1), GLONASS(G1), GALILEO, BeiDou(B1I)
GNSS Type: Passive GNSS
GNSS Bands: L1
Polarization: RHCP
Impedance: 50Ω
VSWR: 2:1
Gain (Max): 2.5
Connector Type: I-PEX MHF I
Cable Length: 10cm
Cable Type: 1.13 Coax
