Description

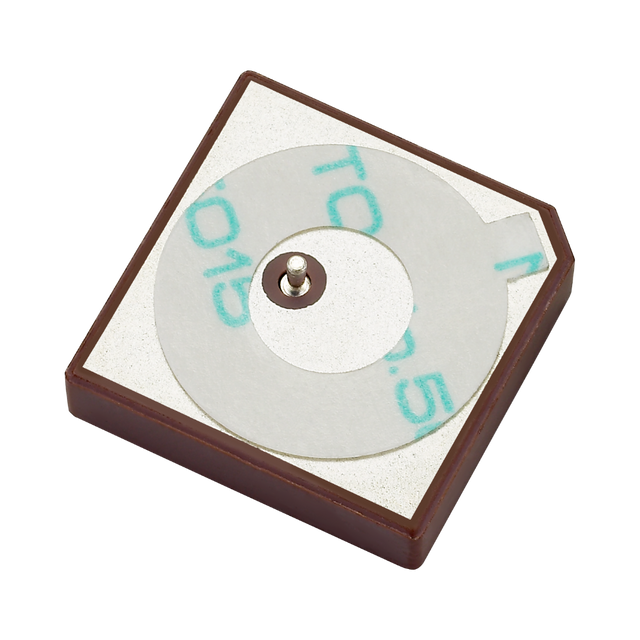

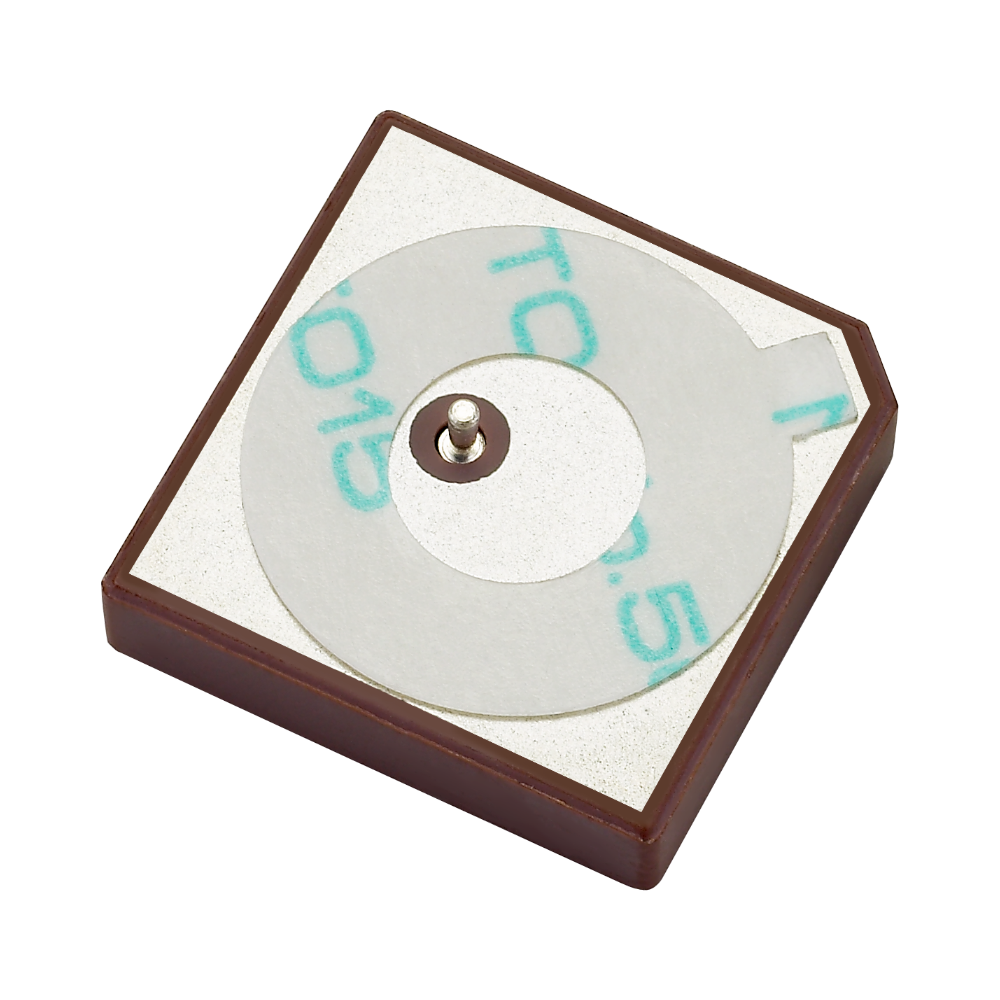

This compact ceramic GNSS patch antenna is designed for GPS/GLONASS/Galileo reception and is optimized for integration into automotive devices. A double-resonance design provides wideband operation across the supported GNSS band, and the antenna is tuned for a centered placement on a 70mm x 70mm ground plane.
- Multi-constellation support: GPS/GLONASS/Galileo
- Integration-friendly design: patch form factor intended for embedded installations
- Easy mounting: pin attachment with double-sided adhesive
- Automotive-grade manufacturing: produced and tested in an IATF16949 first-tier automotive approved facility
For further optimization to customer-specific device environments (off-center placement or different ground-plane sizes), custom-tuned patch antennas can be supplied.
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Patch
Location: Internal
Mounting: Pin/Adhesive, SMD/SMT
Satellite Navigation: GNSS
Type: Single
Dimensions: 18*18*4mm
Weight: 7g
GNSS (Passive)
Frequency: 1575.42MHz - 1610MHz
Standards: GPS/GLONASS/Galileo
GNSS Bands: L1
Impedance: 50 ohms
Polarization: RHCP
VSWR: <2
Gain (Max): 3
