Description

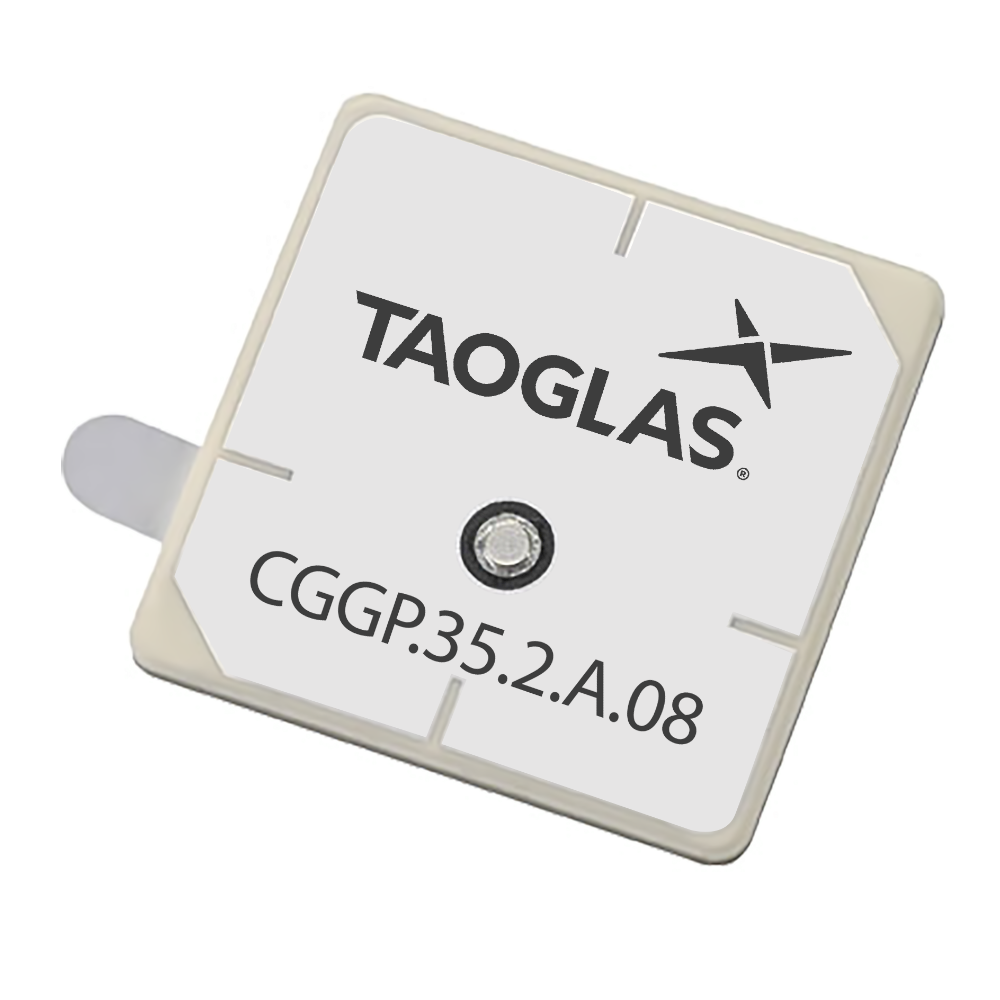

This low-profile embedded ceramic patch antenna is designed for reliable GNSS reception in space-constrained devices. Its patch form factor supports stable positioning performance for vehicle navigation and a wide range of connected embedded systems.
- Low-profile embedded patch design suited to compact enclosures
- Multi-constellation GNSS support for robust location performance
- Designed for embedded integration with pin-based PCB mounting and adhesive support for placement during assembly
- Automotive-oriented manufacturing pedigree suitable for demanding applications
Different pin lengths may be available subject to project requirements (NRE and MOQ). For more details, contact your regional sales office.
Technical Specifications
Operating Temperature: -40 C to 85 C
Antenna Technologies: Patch
Location: Internal
Mounting: Pin Mount, Adhesive Mount
Satellite Navigation: GNSS
Type: Single
Frequency: 1559MHz - 1610MHz
GNSS Type: Passive GNSS
GNSS Bands: L1
Polarization: RHCP
Impedance: 50 a0 a9
VSWR: <2
Mechanical Style: Patch
Termination Style: Pin
Length: 35.5 a0mm
Width: 35.5 a0mm
Height: 2 a0mm
Weight: 3 a0g
Gain (Max): 4.27 a0dBi
