Description

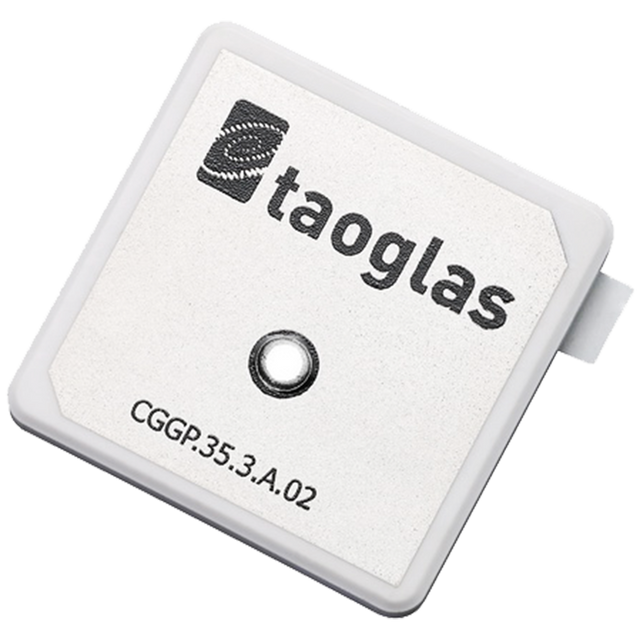

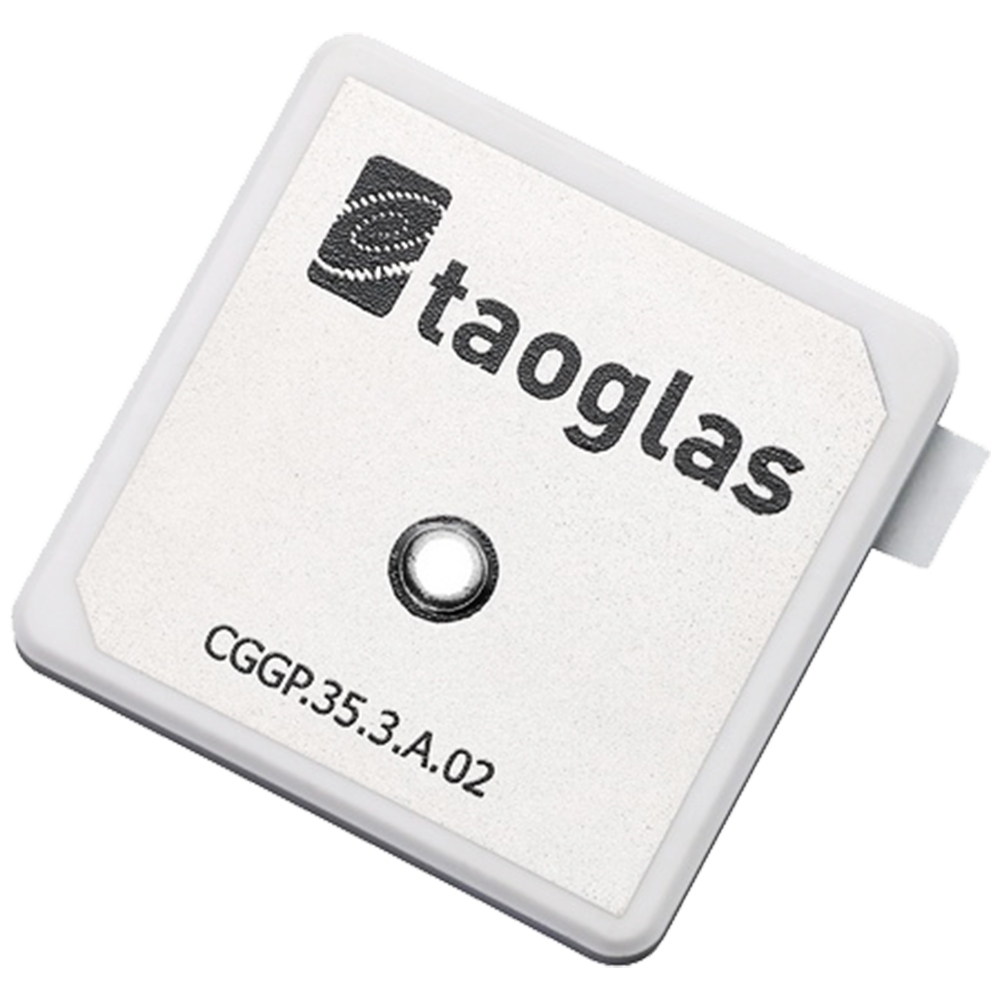

This compact ceramic GNSS patch antenna is designed for reliable reception across GPS, GLONASS, and Galileo bands using a wide-band, double-resonance design.
- Wide-band GNSS coverage: supports GPS/Galileo and GLONASS operation in a single embedded patch design
- Integration-friendly design: intended for a centered placement on a reference ground plane and suitable for device embedding
- Automotive-grade manufacturing: produced and tested in an automotive-approved facility
Custom tuning options may be available for different device environments, off-center placement, or alternative ground-plane sizes.
Technical Specifications
Operating Temperature: -40°C to +85°C
Antenna Technologies: Patch
Location: Internal
Mounting: Pin/Adhesive Mount
Satellite Navigation: GNSS
Type: Single
Frequency: 1561MHz - 1602MHz
GNSS Type: Passive GNSS
GNSS Bands: L1
Polarization: RHCP
Impedance: 50 Ohms
VSWR: <2
Gain (Max): 4
Dimensions: 35*35*3.5mm
Weight: 22.08g
