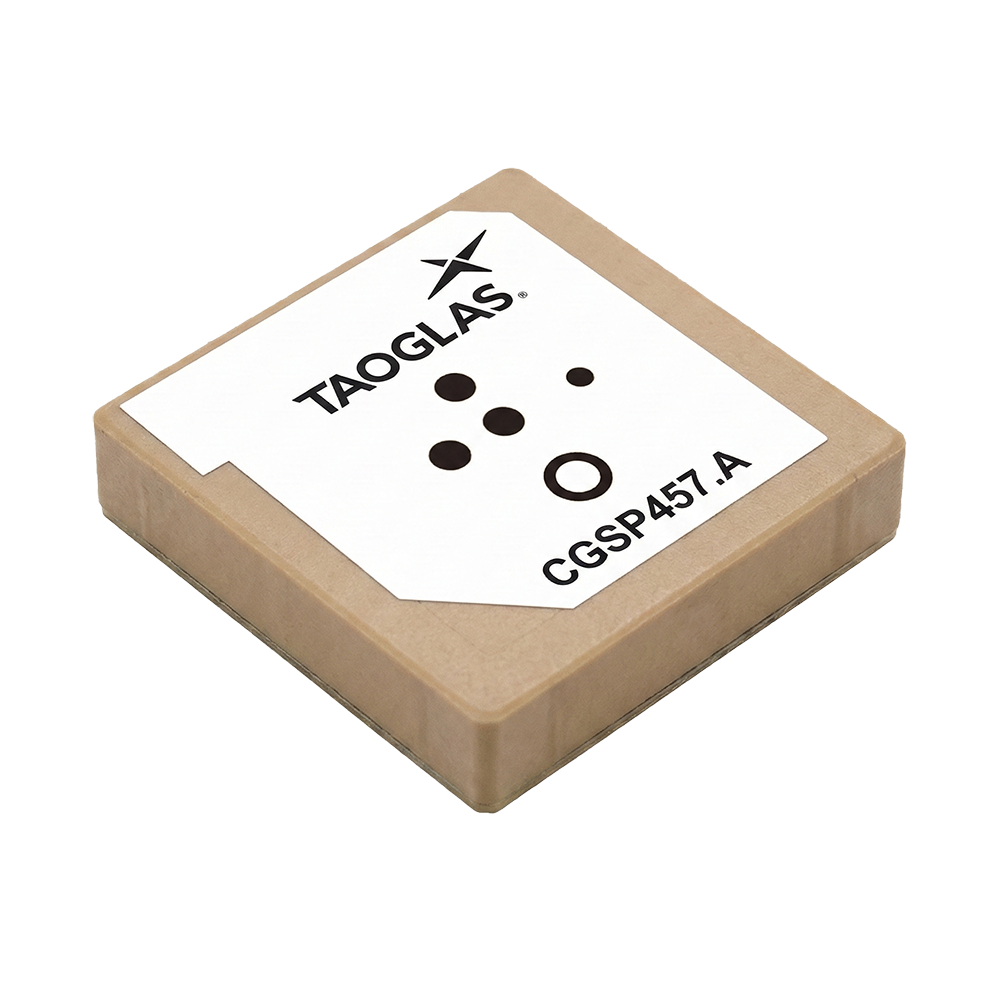

CGSP457.A Antenna 5G, GNSS, Iridium patch for GNSS Positioning & Navigation, Asset Tracking & Fleet Management, Public Safety & Mission-Critical Systems, Transportation & Telematics

This compact ceramic patch antenna is designed for embedded systems that need reliable global positioning along with L-band satellite communication capability. It supports multiple GNSS constellations for robust positioning performance and also supports Iridium and NTN n255 (uplink and downlink) for SatCom and emerging non-terrestrial network applications.

Key benefits

• Multi-constellation GNSS support for global coverage
• SatCom capability including Iridium and NTN n255 support
• RHCP polarization for improved GNSS signal reception
• Compact patch form factor for embedded integration

Typical applications include

• GNSS Positioning & Navigation
• Asset Tracking & Fleet Management
• Aerospace, UAV, and Robotics
• Satellite Communication & NTN (n255)
• Public Safety & Mission-Critical Systems
• Transportation & Telematics
• Industrial & Infrastructure Applications
• Research & Field Instrumentation

Technical Specifications

Operating Temperature: -40 C to 85 C
Antenna Technologies: Patch
Cellular Technologies: 5G
Location: Internal
Mounting: Pin/Adhesive Mount
Satellite Navigation: GNSS
Type: Single
Dimensions: Ø45 x 7 mm
Weight: 32g

GNSS / SatCom (Passive Patch)

Frequency: 1542MHz - 1643MHz
GNSS Type: Passive GNSS
GNSS Bands: L1/L-Band
Impedance: 50
Polarization: RHCP
VSWR: 2:1
Gain (Max): 5.97 dBi

Band Performance (Tested on a 70 x 70mm Ground Plane)

L-Band [1542 MHz]: 1525-1559 MHz; Efficiency 90.5%; Average Gain -0.44 dB; Peak Gain 5.93 dBi
L1 [1575.42 MHz]: 1565-1586 MHz; Efficiency 96.0%; Average Gain -0.18 dB; Peak Gain 5.92 dBi
B1I [1561 MHz]: 1559-1565 MHz; Efficiency 94.5%; Average Gain -0.25 dB; Peak Gain 5.97 dBi
G1/L1OC [1602 MHz]: 1596-1610 MHz; Efficiency 97.3%; Average Gain -0.12 dB; Peak Gain 5.93 dBi
Iridium: 1616-1626 MHz; Efficiency 96.2%; Average Gain -0.17 dB; Peak Gain 5.93 dBi
