Description

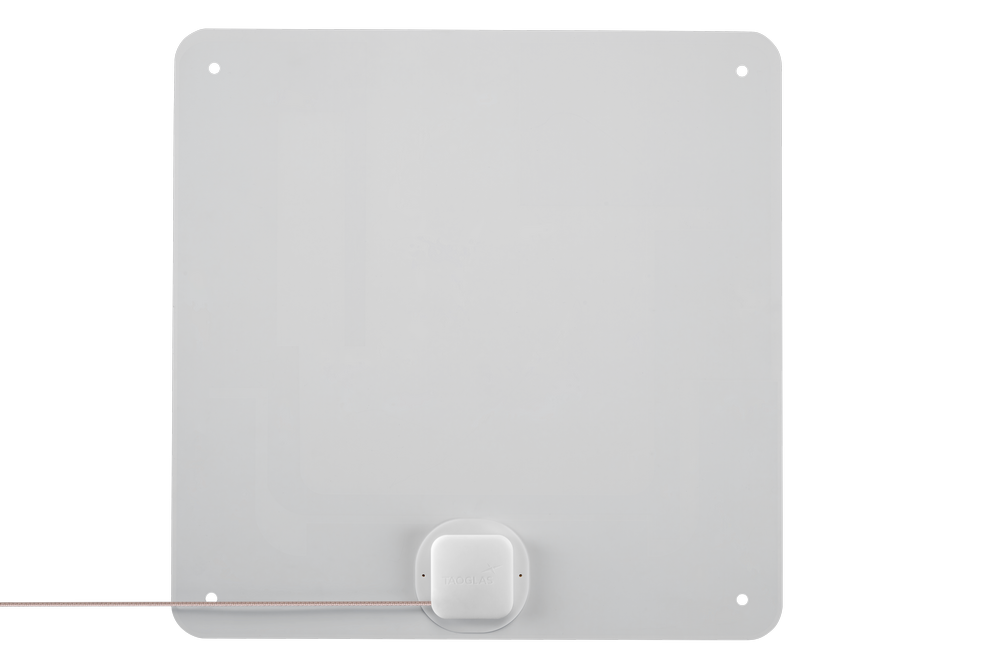

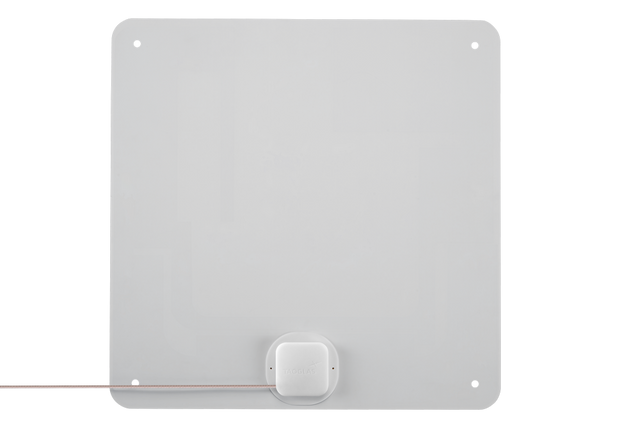

This low-profile ceiling panel antenna is designed to enhance in-building VHF coverage for critical public safety communications. Its industry-standard ceiling form factor makes it suitable as a drop-in replacement in many indoor deployments.
- Designed for indoor public safety coverage: improves VHF signal distribution within buildings
- Discreet ceiling-panel form factor: thin, unobtrusive installation on interior ceilings
- Ideal for critical communications: supports reliable coverage in demanding environments
Connections
1x VHF 132-174 MHz Antenna
Connector & Cable
- Connector Type: N-Type(F)
- Cable Length: 100cm
- Cable Type: RG-316
Technical Specifications
Operating Temperature: -20°C to 60°C
Location: External
Mounting: Ceiling Mount
Type: Single
Impedance: 50Ω
Dimensions: 380mm * 380mm * 16.5mm
Weight: 950g
VHF
Frequency: 132MHz - 174MHz
VSWR: <2
Efficiency (%): 55.0
Average Gain (dB): -2.7
Gain (Max): 3.5 dBi
Connector Type: N-Type(F) (Straight)
Cable Length: 100cm
Cable Type: RG-316
