CMA100.A.BIVW.002 Antenna 4x4 MIMO 5G, 4G/LTE ceiling/wall mount Asteor SMA-M 30cm IP67 for Offices and Industrial Plants, Stadiums and Theatres, Warehouses, First Responder Bases

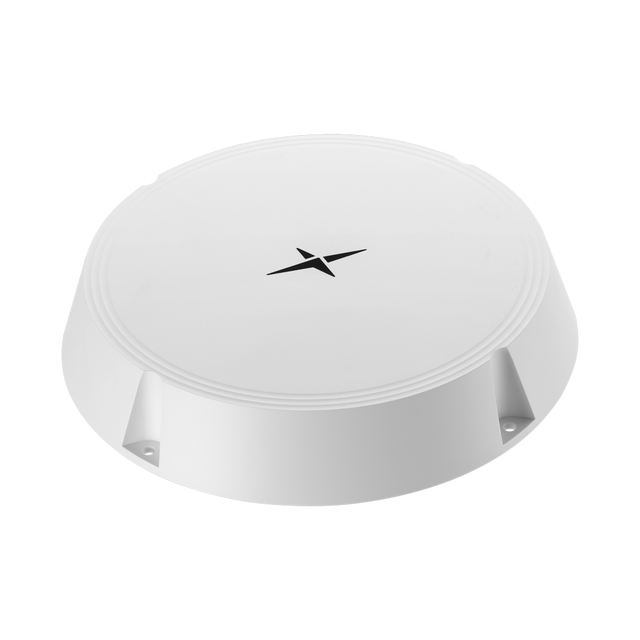

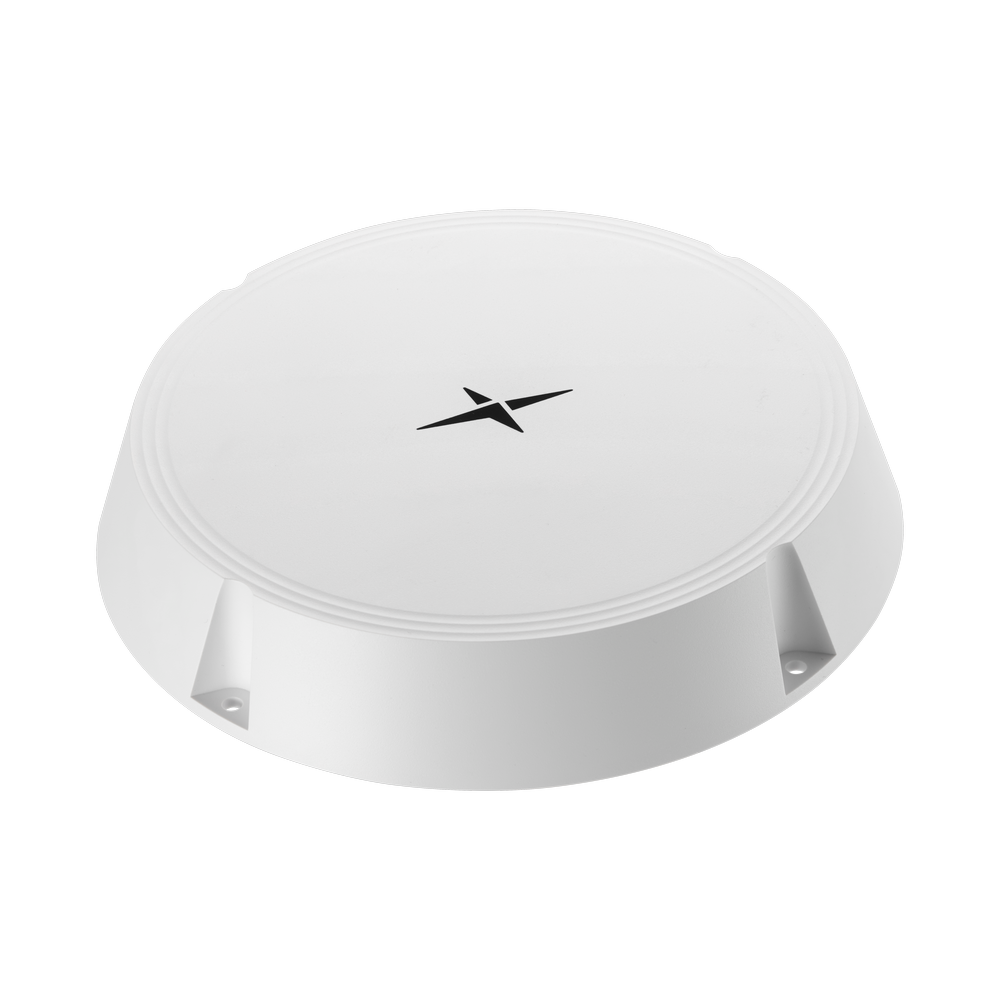

This discreet ceiling/wall-mount antenna is designed for in-building private network deployments on C-Band/CBRS. Its omnidirectional radiation pattern supports flexible placement on ceilings or walls to help improve coverage and reliability.

• Designed for in-building coverage: ideal for private cellular networks in offices, venues, and industrial facilities
• 4x4 MIMO design: supports multi-stream connectivity for higher throughput and more consistent performance
• Flexible mounting: can be mounted via thread or using the four corner through-holes
• Rugged enclosure: suitable for demanding environments

Connections

4x 5G/4G MIMO 3300-4200MHz (C-Band/CBRS)

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 30cm
• Cable Type: TGC-200

Technical Specifications

Operating Temperature: -40 C to 85 C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
Mounting: Screw Mount
Type: Single
IP Rating: IP67
Dimensions: Ø200 x 35 mm
Weight: 250g
Material: White ASA
Humidity: Non-condensing 65 C 95% RH

4x 5G NR / 4G LTE MIMO (C-Band/CBRS)

Frequency: 3300MHz - 4200MHz
Standards: 42,43,48,49,52,77,78
Impedance: 50 a9
Polarization: Linear
Radiation Pattern: Omni
VSWR: <2
Max. Input Power: 10W
Gain (Max): 4.55 dBi
Connector Type: SMA (M) Straight
Cable Length: 30cm
Cable Type: TGC-200
