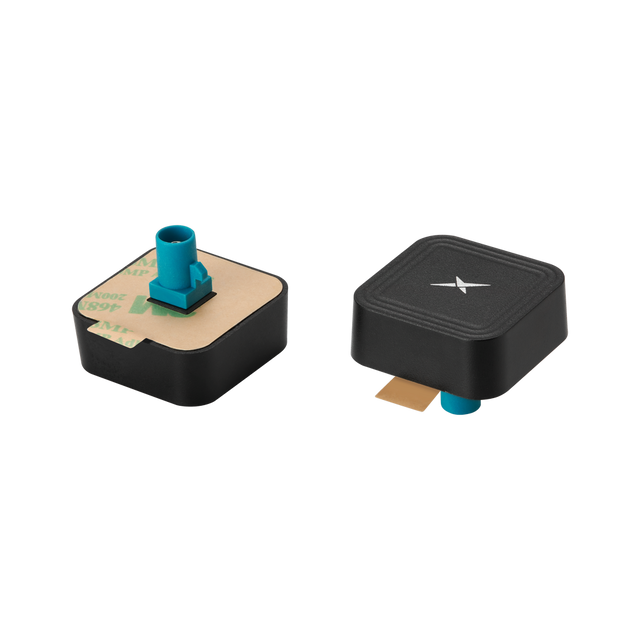

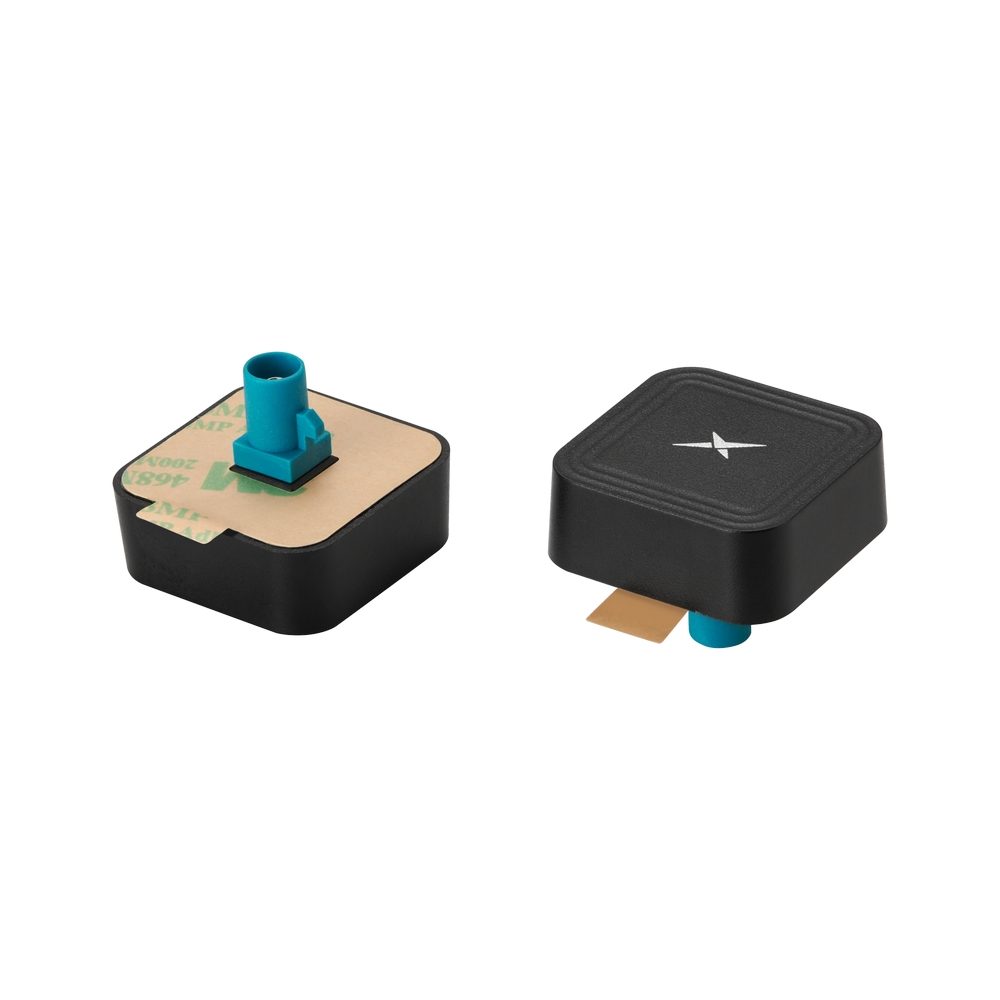

DCM.59.0ZZ11 Antenna Low-Profile C‑V2X/DSRC connector mount FAKRA Code Z IP52 for Telematics Devices, Parking payment systems, Vehicle Security, Road Safety

This low-profile DSRC/C‑V2X antenna is designed for in-car connectivity, supporting full-band coverage for next-generation vehicle communications.

It enables key V2X use cases such as vehicle-to-vehicle (V2V), vehicle-to-infrastructure (V2I), vehicle-to-pedestrian (V2P), and vehicle-to-cloud (V2C), helping improve road safety, reduce collisions, and support emerging automotive applications.

• Full-band DSRC/C‑V2X coverage for automotive V2X communication
• Low-profile form factor for discreet vehicle integration
• Directional performance to support robust link quality in challenging environments

Typical applications include:

• Telematics Devices
• Parking payment systems
• Vehicle Security
• Road Safety
• Traffic Management Systems

Connector & Cable

• Connector Type: FAKRA Code Z Waterblue Jack

Technical Specifications

Operating Temperature: -40°C to 85°C
Location: External
Mounting: Connector Mount
Type: Single
IP Rating: IP52
Dimensions: 34mm *34mm * 13mm
Weight: 4g

C‑V2X / DSRC

Frequency: 5790-5925 MHz
Standards: C‑V2X
Impedance: 50 Ω
Polarization: RHCP
Radiation Pattern: Directional
Efficiency (%): 82
Average Gain (dB): -0.8
Gain (Max) (dBi): 8.5
VSWR: <2
HPBW: < 70 degrees
XPD: 9
Max Input Power: 10W
Connector Type: FAKRA Code Z Waterblue Jack
