Description

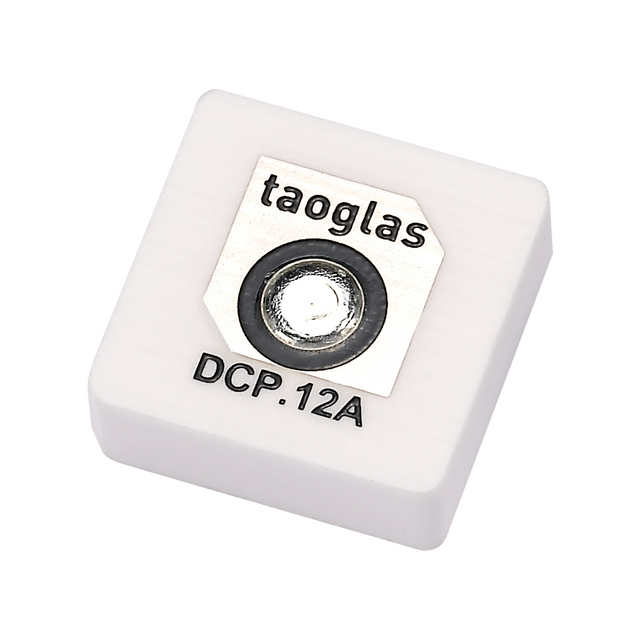

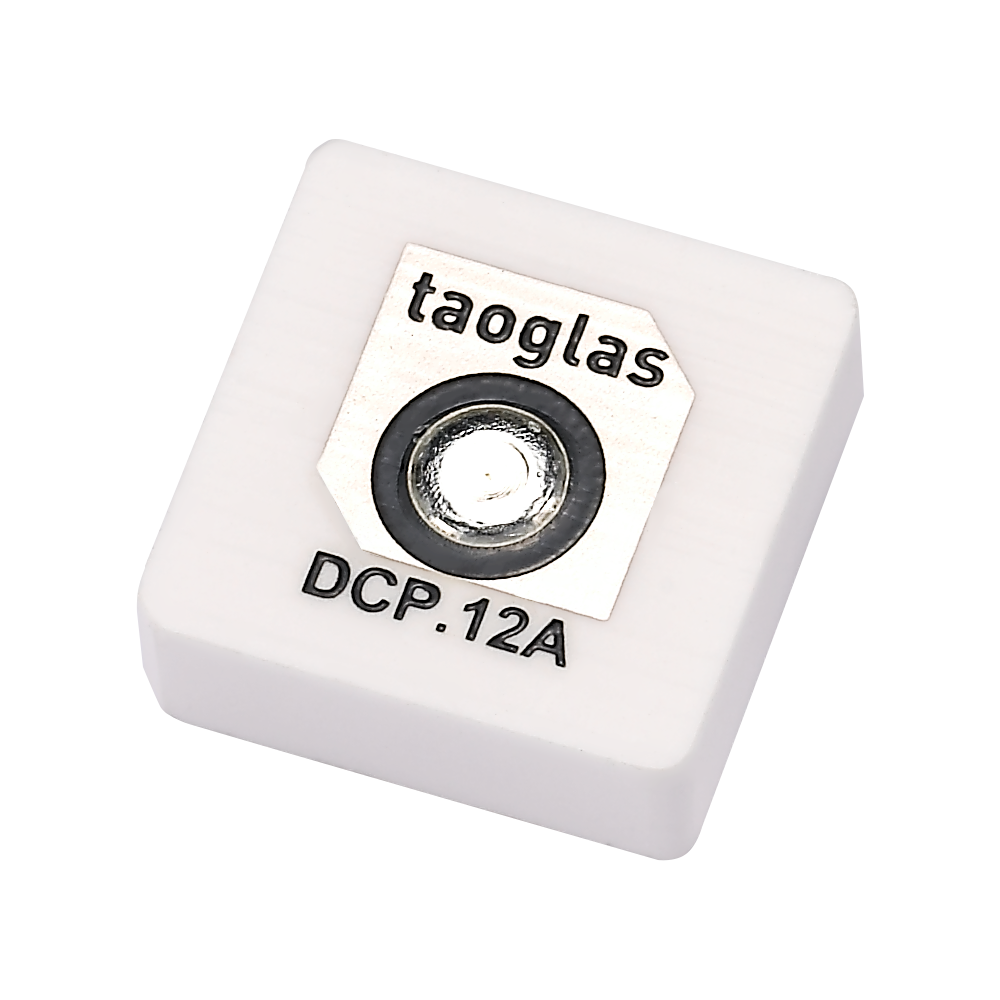

Compact embedded ceramic patch antenna for 5.9GHz DSRC / C-V2X applications where high-speed, low-latency short-range vehicle communications are required.
- Designed for vehicular communications: optimized for DSRC systems and vehicle safety deployments
- Stable link on moving platforms: circular polarization helps maintain more consistent signal strength in dynamic environments
- Integration-friendly design: intended to be mounted using pins with double-sided adhesive, and tuned for a centered placement on a 70mm x 70mm ground plane
- Customization option: customer-specific tuning can be supplied for off-center placement or different ground-plane sizes (subject to NRE and MOQ)
Technical Specifications
Operating Temperature: -40°C to 105°C
Antenna Technologies: Patch
Location: Internal
Mounting: Pin/Adhesive Mount
Type: Single
Frequency: 5850MHz - 5925MHz
Impedance (Ohm): 50Ω
Polarization: RHCP
VSWR: 2:1
Gain (Max): 5.89 dBi
Efficiency (%): 55.0
Dimensions: 12*12*4mm
Weight: 2.1g
Termination Style: Pin
Pin Diameter: 0.85 mm
Pin Length: 2.4mm
Humidity: Non-condensing 65°C 95% RH
