Description

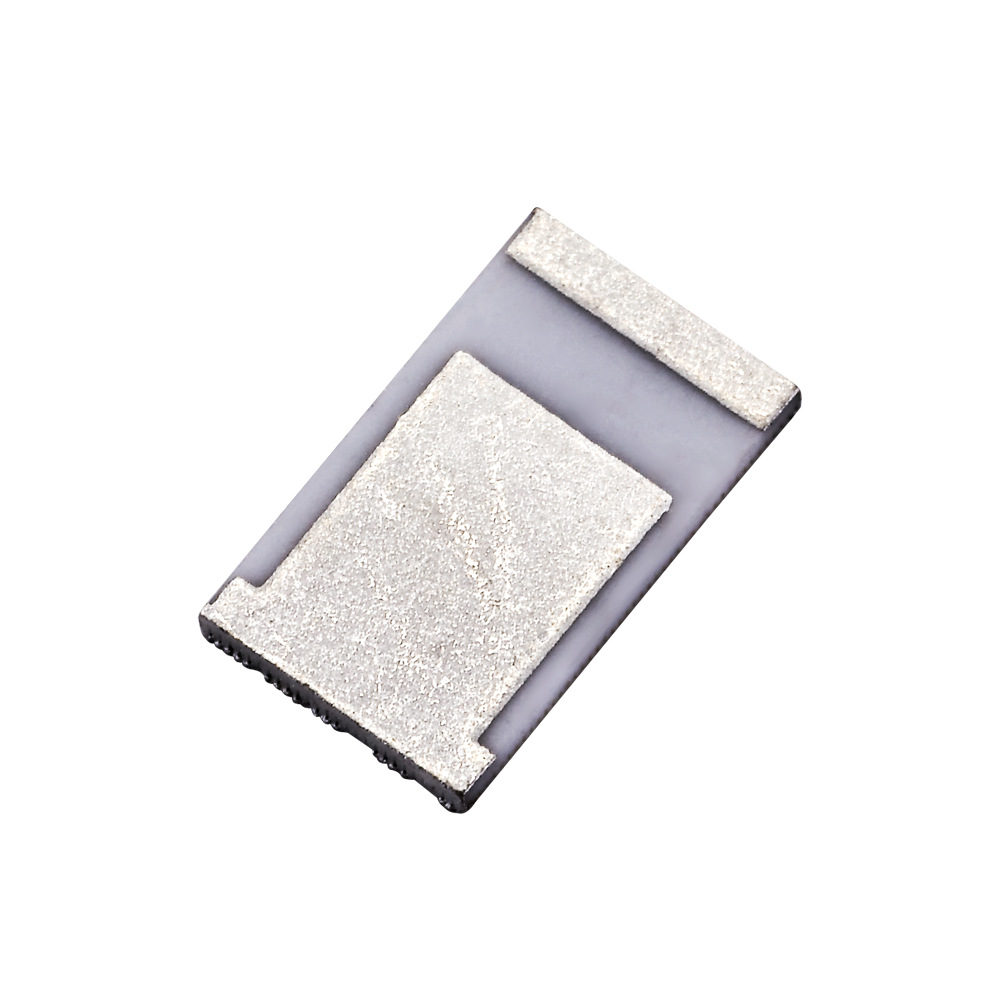

This compact, low-profile SMD antenna is designed for Digital Enhanced Cordless Telecommunications (DECT) devices where PCB space is limited. Its loop design provides efficient, omni-directional coverage, helping maintain stable performance even when device orientation changes.
- Designed for DECT: supports the 1880–1930MHz band
- Space-saving form factor: miniature edge-mount style for compact electronics
- Production-ready: supplied on tape and reel for automated pick-and-place assembly
Typical applications include: Cordless Device Communication (e.g. Handsets and Personal Alarms), Indoor Location Tracking, Smart Home and Industrial Automation and Monitoring.
Installation / Environmental
The following is an example on how to integrate the DLA.01 into a design. This antenna has 3 pins, where one pin is used for the RF Feed. The manufacturer recommends using a minimum of 80x40mm ground plane (PCB) to ensure optimal performance.
The antenna should be placed mid-point on the long side of the PCB to take advantage of the ground plane on each side of the antenna.
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Loop
Location: Internal
Mounting: SMD/SMT Mount
Type: Single
Frequency: 1880MHz - 1930MHz
Impedance: 50Ω
Polarization: Linear
VSWR: 1.5:1
Efficiency (%): 63.5
Average Gain (dB): -1.97
Peak Gain (dBi): 2.58
Max Input Power: 10W
Dimensions: 5mm x 3mm x 0.5mm
Weight: 0.029g
