Description
This compact patch antenna is designed for high-precision GNSS applications, supporting GPS L1 and Galileo E1 bands. Its 25mm x 25mm x 4mm ceramic construction ensures stable performance and a hemispherical radiation pattern, making it ideal for telematics, vehicle tracking, fleet management, and navigation devices. The antenna is optimized for use on a 50 x 50mm ground plane and is suitable for high-volume, low-cost assembly processes. It is manufactured in an IATF16949 automotive-approved facility, ensuring reliability for demanding environments.
Connections
GPS L1 / GALILEO E1 (1575.42MHz)
Technical Specifications
Operating Temperature: -40°C to +85°C
Antenna Technologies: Patch
Location: Internal
Mounting: SMD/SMT Mount
Satellite Navigation: GNSS
Type: Single
Connection 1 - GNSS
Frequency: 1575.42MHz
Standards: GPS L1, Galileo E1
Gain (Max): 4.34 dBi
Impedance: 50 Ohm
VSWR: <2
Polarity: RHCP
Efficiency: 85.13%
Dimensions: 25 x 25 x 4 mm
Weight: 9.4g

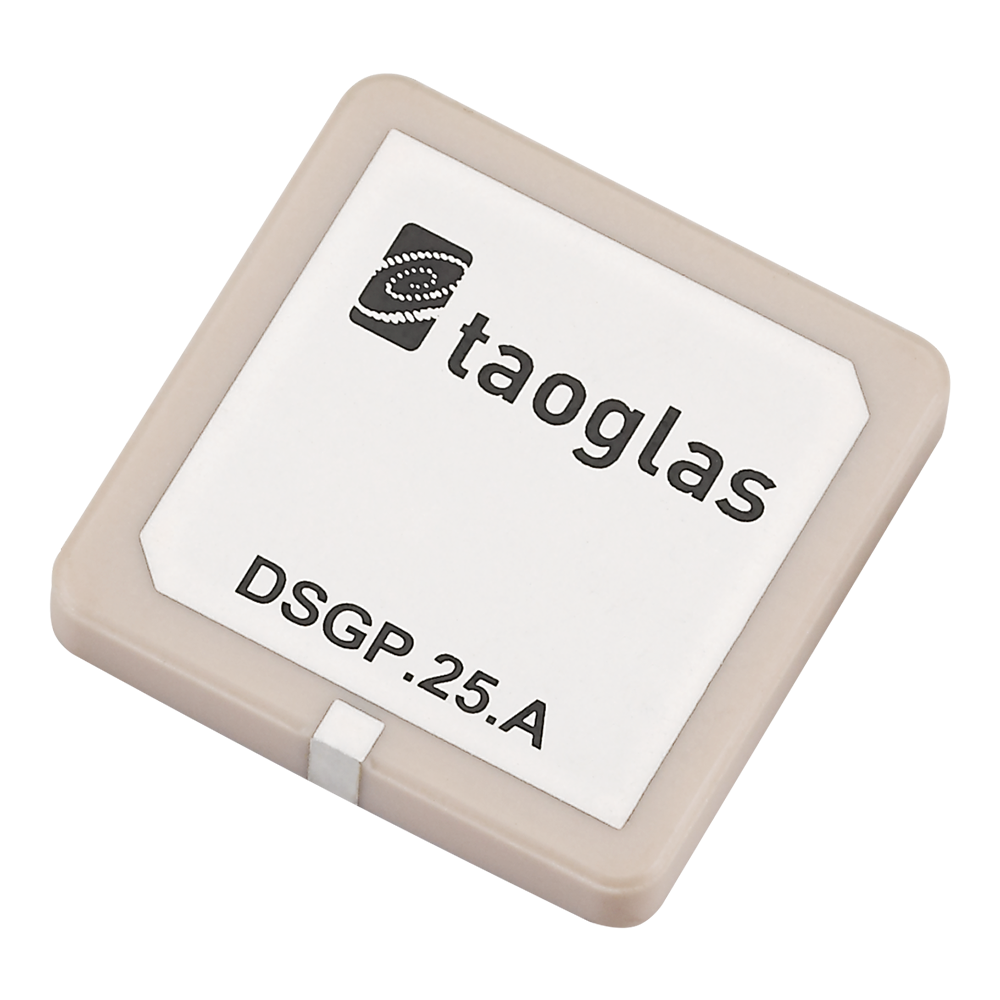

DSGP.1575.25.4.A.02 GNSS patch Antenna SMD/SMT Mount
