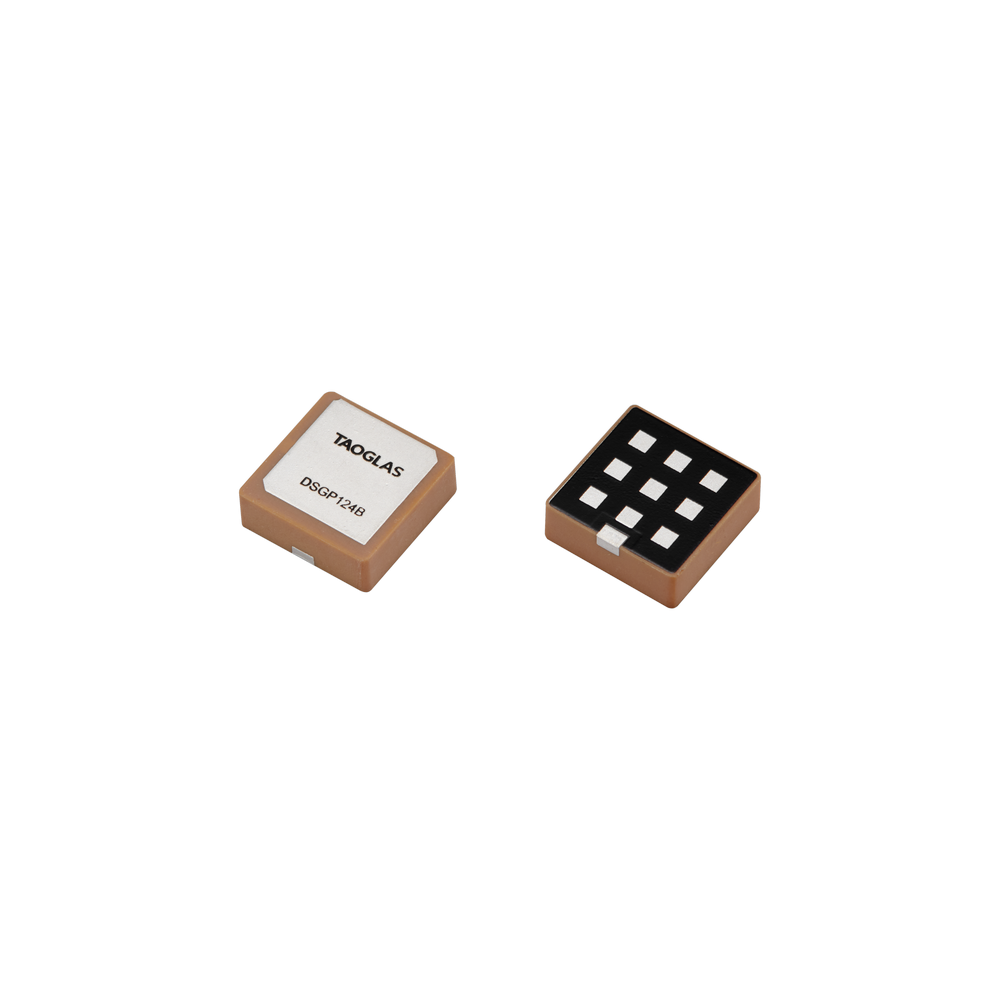

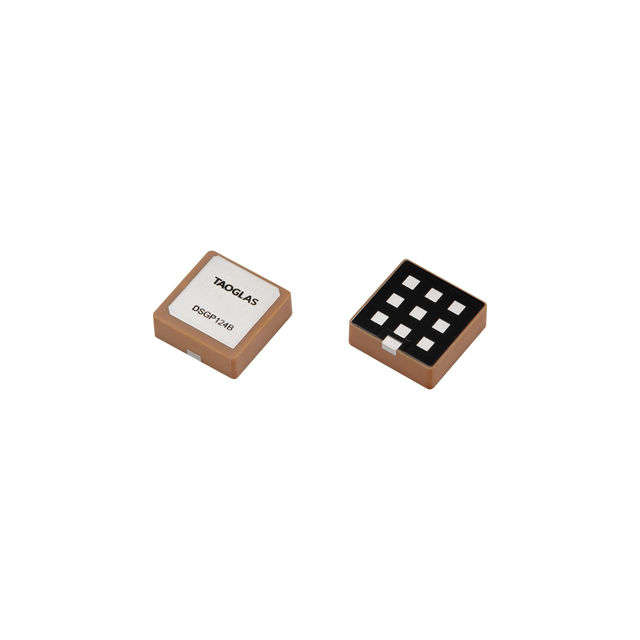

DSGP124B Antenna Low-Profile GNSS SMD/SMT ceramic patch for Vehicle Tracking and Fleet Management Systems, Wearables, Navigation Devices

DSGP124B is a compact ceramic GNSS patch antenna designed for GPS L1, Galileo E1, and BeiDou B1C reception in space-constrained devices. Its low-profile form factor supports reliable positioning performance for high-volume, cost-sensitive designs.

• Ceramic passive patch design for GNSS L1/E1/B1C
• SMD/SMT direct-mount integration for embedded product designs
• Additional solder mask to help improve durability during assembly and reduce risk of cracking from heat expansion

Typical applications include:

• Vehicle Tracking and Fleet Management Systems
• Wearables
• Navigation Devices

Technical Specifications

Operating Temperature: -40°C to 105°C
Antenna Technologies: Patch
Location: Internal
Mounting: SMD/SMT Mount
Satellite Navigation: GNSS
Type: Single
Frequency: 1561MHz - 1603MHz
Impedance: 50Ω
Polarization: RHCP
VSWR: 2:1
Gain (Max): 1.01 dBi
Efficiency (%): 36.0
Dimensions: Ø12 x 4 mm
Weight: 2.3g

Download Datasheet PDF
