Description

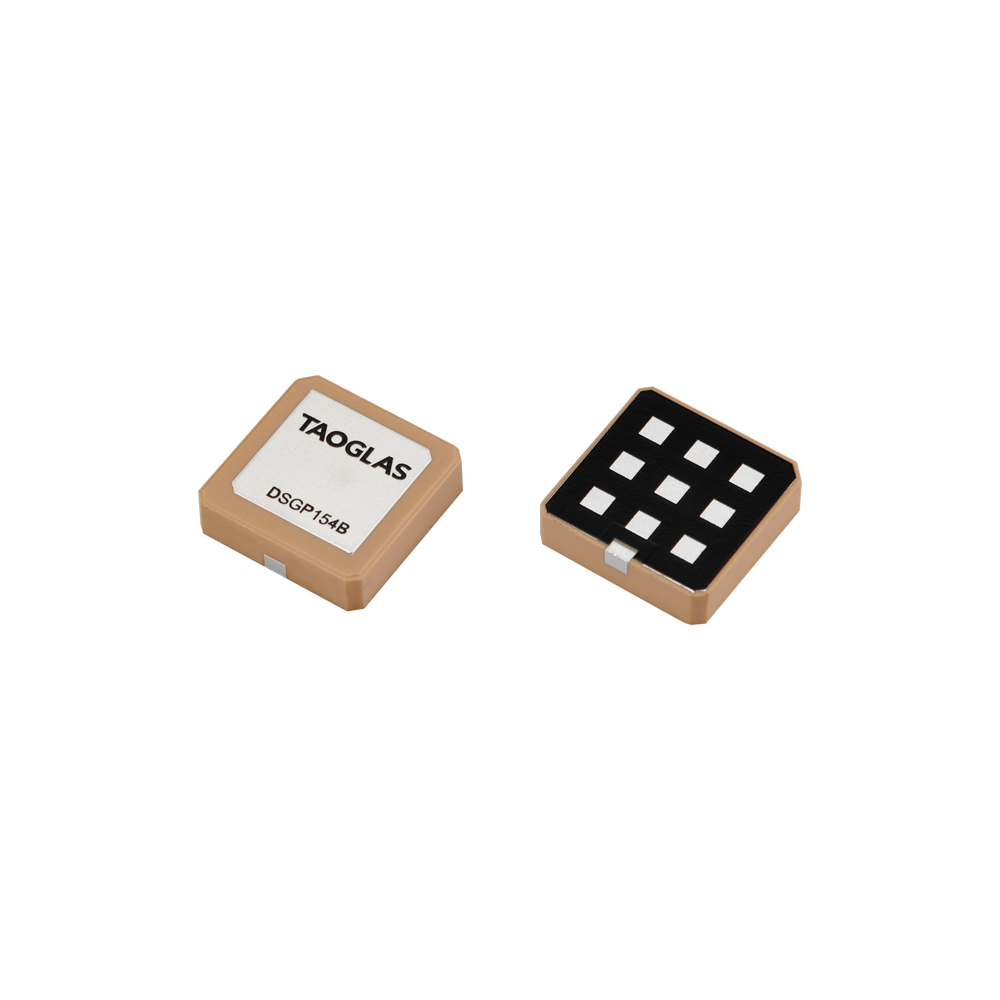

DSGP154B is a compact ceramic GNSS patch antenna designed for GPS L1 / Galileo E1 / BeiDou B1C at 1575.42 MHz. Its small 15mm x 15mm footprint and low-profile 4mm height make it well-suited for space-constrained device designs.
Designed for SMT assembly, it includes an additional solder mask to help improve durability and reduce the risk of cracking from heat expansion during high-volume manufacturing.
Typical applications include:
- Vehicle Tracking and Fleet Management Systems
- Wearables
- Navigation Devices
Technical Specifications
Operating Temperature: -40°C to 105°C
Antenna Technologies: Patch
Location: Internal
Mounting: SMD/SMT Mount
Satellite Navigation: GNSS
Type: Single
Frequency: 1561MHz - 1603MHz
GNSS Bands: L1
Polarization: RHCP
Impedance: 50 Ω
VSWR: 2:1
Gain (Max): 1.67 dBi
Dimensions: Ø15 x 4 mm
Weight: 3.6g
