Description

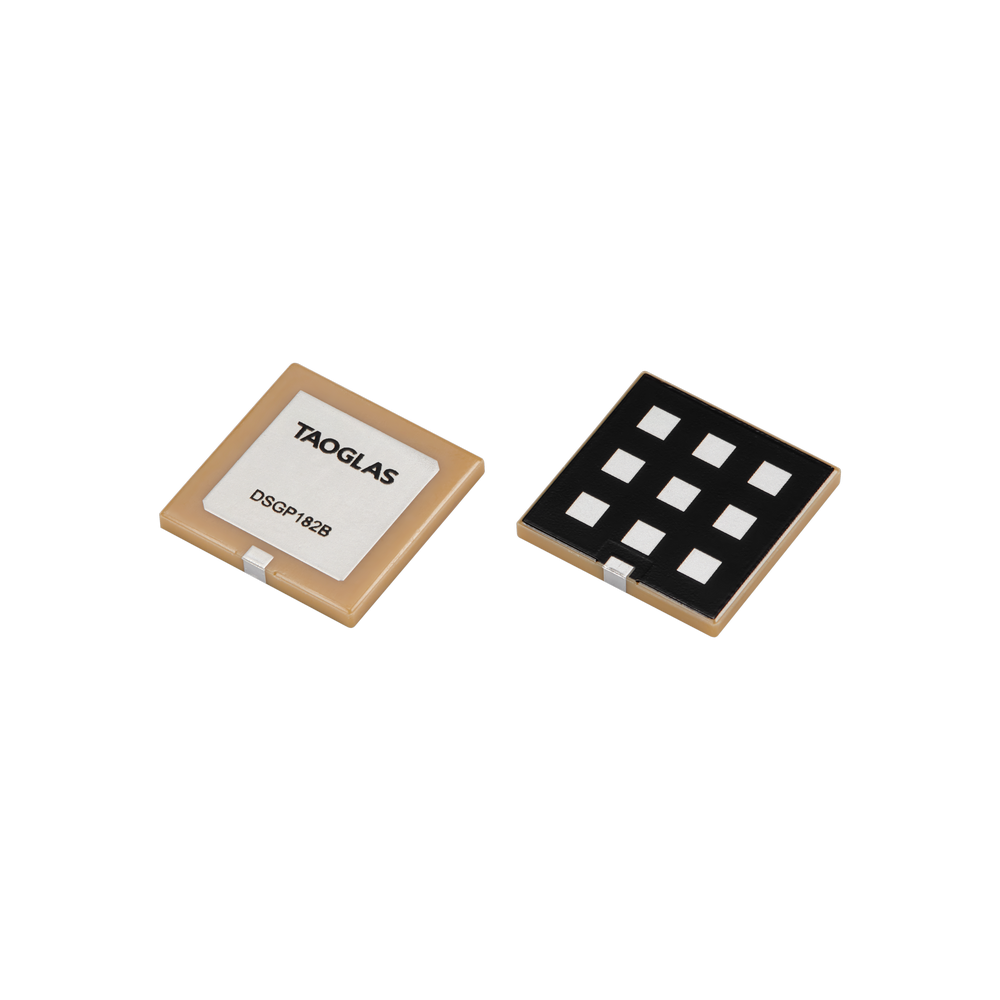

The DSGP182B is a compact ceramic passive patch antenna designed for GPS L1 / Galileo E1 / BeiDou B1C operation. Its low-profile form factor supports space-constrained product designs, while the additional solder mask helps improve durability during high-volume SMT assembly.
Typical use cases
- Vehicle Tracking and Fleet Management Systems
- Wearables
- Navigation Devices
This series can be produced to automotive-grade quality processes and documentation on request, depending on program requirements.
Technical Specifications
Operating Temperature: -40°C to 105°C
Antenna Technologies: Patch
Location: Internal
Mounting: SMD/SMT Mount
Satellite Navigation: GNSS
Type: Single
Frequency: 1565-1586 MHz
GNSS Bands: L1
Impedance: 50 Ω
Polarization: RHCP
VSWR: 2:1
Peak Gain (dBi): -0.17
Efficiency (%): 27.2
Dimensions: Ø18 x 2 mm
Weight: 1.8g ± 3%
Material: Ceramic
RoHS & REACH Compliant: Yes
