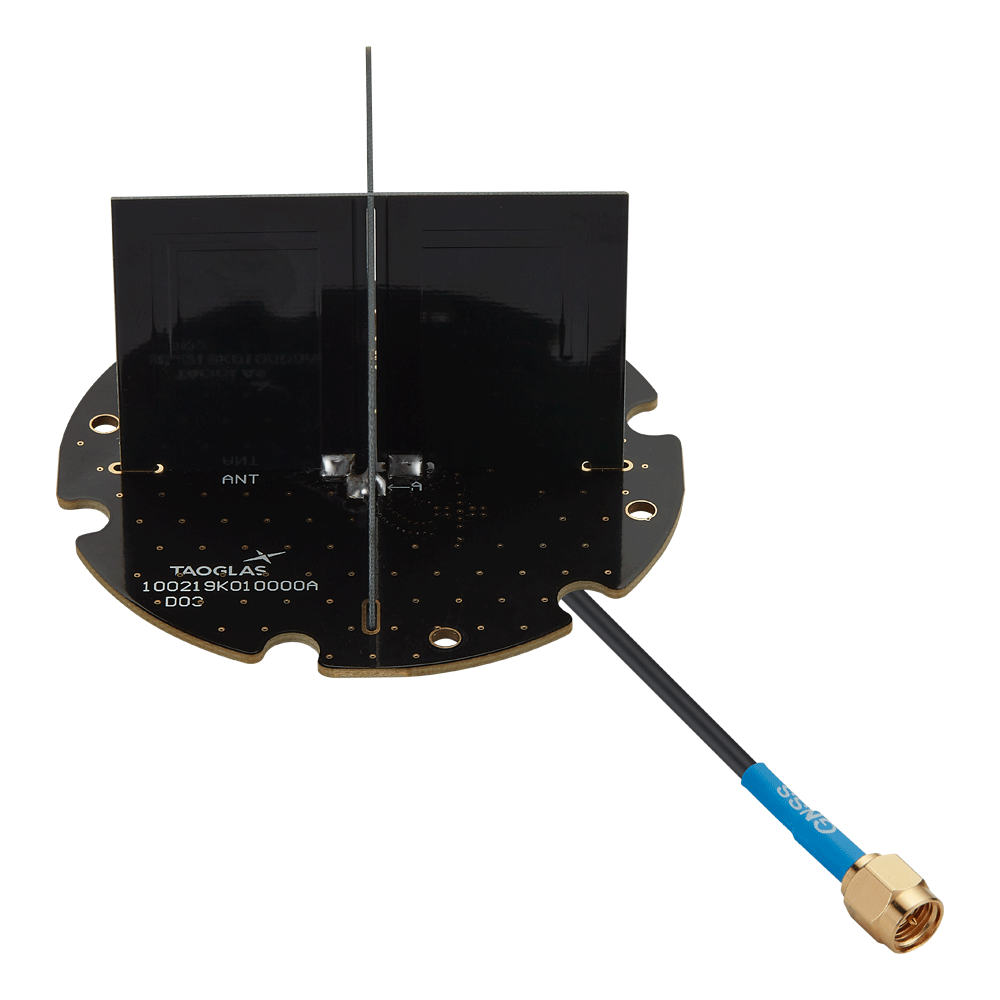

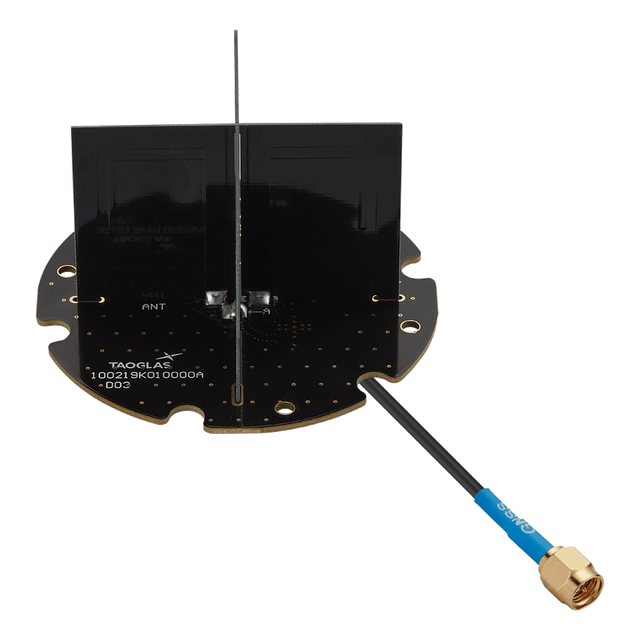

EAHP.50.01.0100D Antenna High-Precision GNSS embedded cross dipole X-Dipole SMA-M 10cm for Autonomous Driving, Precision Positioning for Robotics, Precision Agriculture, Inventory Management & Container tracking

This embedded active multiband GNSS antenna is designed for high-performance, cm-level positional accuracy across the full GNSS spectrum, helping improve positioning stability in challenging environments such as urban areas.

Its cross-dipole design supports reliable GNSS reception with strong multipath resilience and excellent phase centre stability, while the integrated LNA and filtering provide excellent out-of-band rejection for improved signal reliability.

Typical use cases include:

• Autonomous Driving
• Precision Positioning for Robotics
• Precision Agriculture
• Inventory Management & Container tracking
• Telematics & Asset Tracking
• Timing Accuracy Synchronization

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 10cm
• Cable Type: RG-174

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: Dipole
Location: Internal
Mounting: Screw Mount
Satellite Navigation: GNSS
Type: Single
Frequency: 1176.45MHz - 1602MHz
GNSS Bands: L1/L2/L5/L6
GNSS Type: Active GNSS
Polarization: RHCP
Impedance: 50Ω
VSWR: <2
Gain (Max): 27
Dimensions: Ø75 x 42 mm
Weight: 31g
Connector Type: SMA (Straight)
Cable Length: 10cm
Cable Type: RG-174
